JHEMCU GHF405AIO 35A flight controller with 4-in-1 ESC
search
  • JHEMCU GHF405AIO 35A flight controller with 4-in-1 ESC
  • JHEMCU GHF405AIO 35A FC + 4in1 ESC BLHeli_S – AIO FPV Controller
  • JHEMCU GHF405AIO 35A FC + 4in1 ESC BLHeli_S – AIO FPV Controller

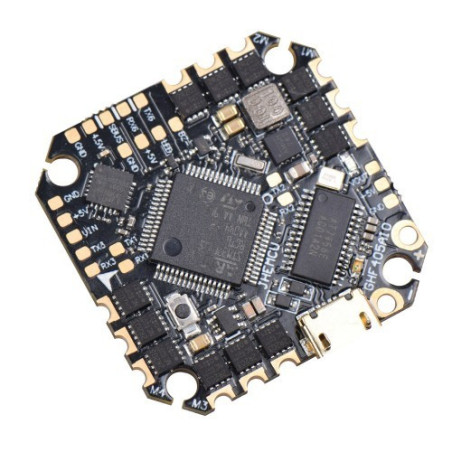

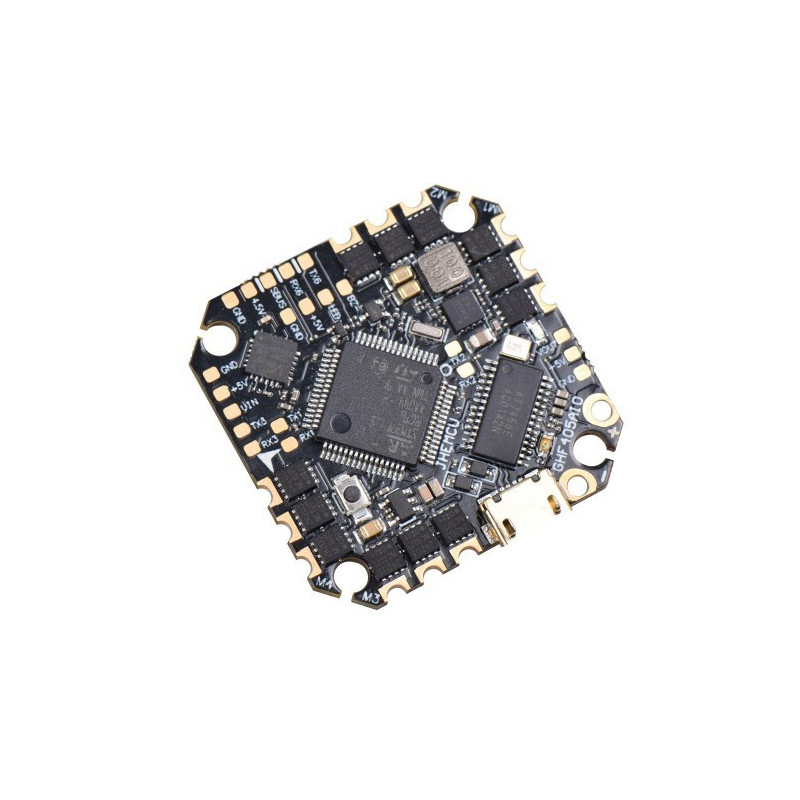

Flight Controller JHEMCU GHF405AIO with 4-in-1 35A BLHeli_S ESC

287.77
Tax included
JHEMCU officially distributed in Poland by FPV store Avifly.

Brand
JHEMCU
Quantity:
3
Shipment:

On monday

Availability:
Last items in stock
Supply:
for freeCheck delivery costs
Gift:
Soon!

JHEMCU GHF405AIO-HD 40A – AIO Flight Controller with 4in1 ESC Bluejay 2–6S

High-performance F4 flight controller with 40A ESC and HD support for 2–6S FPV drones

JHEMCU GHF405AIO-HD 40A is a modern all-in-one flight controller with integrated 4in1 40A ESC, designed for use with digital HD video systems. With a powerful F4 processor, support for DJI/Fatshark/Walksnail, and a compact design, it's an excellent choice for freestyle and racing builds.

Product Features:

  • ✅ Integrated 4in1 40A ESC with Bluejay (BLHeli_S) firmware
  • ✅ F4 flight controller with Betaflight OSD
  • ✅ Compatible with HD systems (DJI / Fatshark / Walksnail)
  • ✅ Supports 2–6S LiPo batteries
  • ✅ Mounting pattern: 25.5x25.5mm M2
  • ✅ Built-in current and voltage sensor
  • ✅ LED strip and buzzer support
  • ✅ Receiver compatibility: SBUS / IBUS / DSM2 / DSMX / CRSF

📋 Technical Specifications:

  • Model: GHF405AIO-HD 40A
  • Processor: STM32F405 / 168MHz
  • IMU: ICM-42688-P (SPI)
  • OSD: AT7456E
  • Barometer: Yes
  • ESC: 4in1 40A, Bluejay (BLHeli_S) firmware
  • Input voltage: 2–6S LiPo (7.4–26V)
  • BEC: 5V 2.5A, 10V 2A
  • Blackbox: 8MB
  • UART Ports: UART1, UART2, UART3, UART4, UART6
  • Mounting size: 25.5x25.5mm M2
  • Weight: approx. 7.1g

📦 Package Includes:

  • 1× JHEMCU GHF405AIO-HD 40A FC + 4in1 ESC
  • 1× 470µF 35V Capacitor
  • 2× 16AWG Power Wires (black and red)
  • 4× M2 Anti-vibration Gummies
  • 1× XT60 Connector
  • 1× USB-C Adapter
  • 1× O3 5P to 6P Cable
  • 1× Soldering Practice Board
No customer reviews for the moment.
