ESC Flywoo GOKU G45M 32BIT 128K 2–6S 45A 4in1 (20×20)

Flywoo

SKU: FW19003228
197.77
Last items in stock – 1 szt.

Flywoo Banner – Avifly Official Distributor of Flywoo FPV: micro drones, long-range platforms, ultra-light frames and premium FPV components

  • 30-day returns No questions asked
  • 12 mo warranty Manufacturer + Avifly
  • Shipping availability Same day before 12:00

Flywoo GOKU G45M 32BIT 128K 2–6S 45A ESC (20×20)

High-performance 4in1 ESC with AM32 firmware – perfect for 3–5" FPV drones

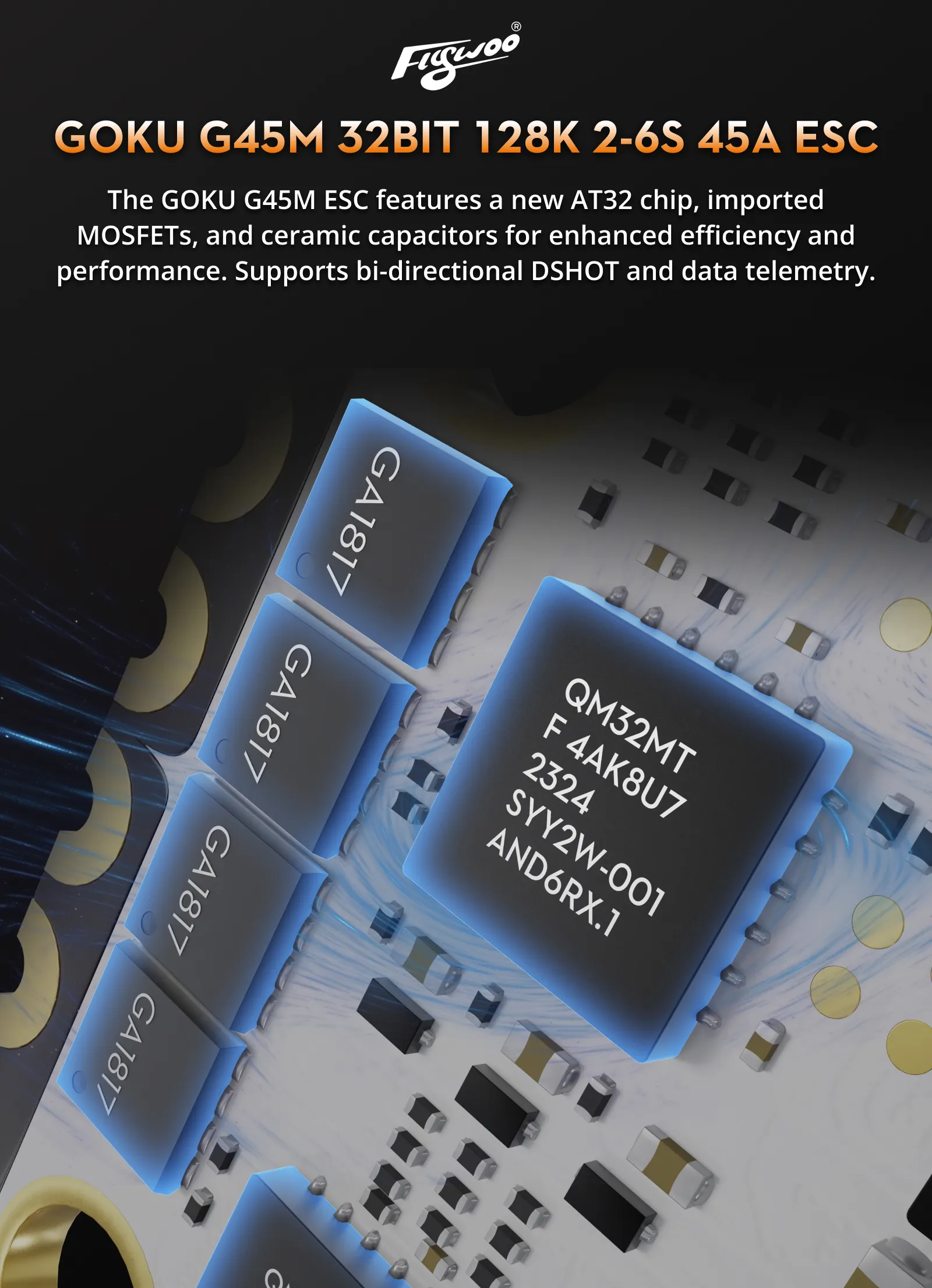

Flywoo GOKU G45M is a compact 4in1 electronic speed controller (ESC) built for racing and freestyle FPV drones. It features a 32-bit AT32 microcontroller, AM32 firmware, bidirectional DShot support, and PWM frequency up to 128kHz. With 6-layer PCB, premium components, and a 20×20 mm mounting pattern, it's an ideal ESC for smooth, powerful, and reliable performance.

Key Features:

  • ✅ 4in1 ESC with 45A continuous current (50A burst for 10s)
  • ✅ 32-bit AT32 chip with AM32 firmware for fast processing
  • ✅ Supports DShot300/600/1200, PWM, Oneshot123/42
  • ✅ PWM frequency range: 24–128kHz
  • ✅ Built-in current sensor and telemetry feedback
  • ✅ High-quality MOSFETs and low ESR ceramic capacitors
  • ✅ 6-layer PCB for enhanced cooling and stability
  • ✅ Compact 20×20 mm mounting (M3), only 6.4 g

? Technical Specifications:

  • Model: GOKU G45M AM32 4in1 ESC
  • Firmware: GOKU_F4A32_PRO (AM32)
  • Input Voltage: 2–6S LiPo
  • Continuous Current: 45A ×4
  • Burst Current: 50A ×4 (up to 10 seconds)
  • PWM Frequency: 24–128kHz
  • Supported Protocols: DShot300 / 600 / 1200, PWM, Oneshot123/42
  • Features: Bidirectional DShot, DEO, motor direction change, throttle calibration
  • Dimensions: 33×30×6.1 mm
  • Mounting Pattern: 20×20 mm (M3)
  • Weight: 6.4 g

? Package Includes:

  • 1× Flywoo GOKU G45M 4in1 ESC
  • 1× 470uF 25V capacitor
  • 1× XT30 power cable
  • 1× FC-to-ESC signal cable
  • 4× M2 rubber mounting grommets

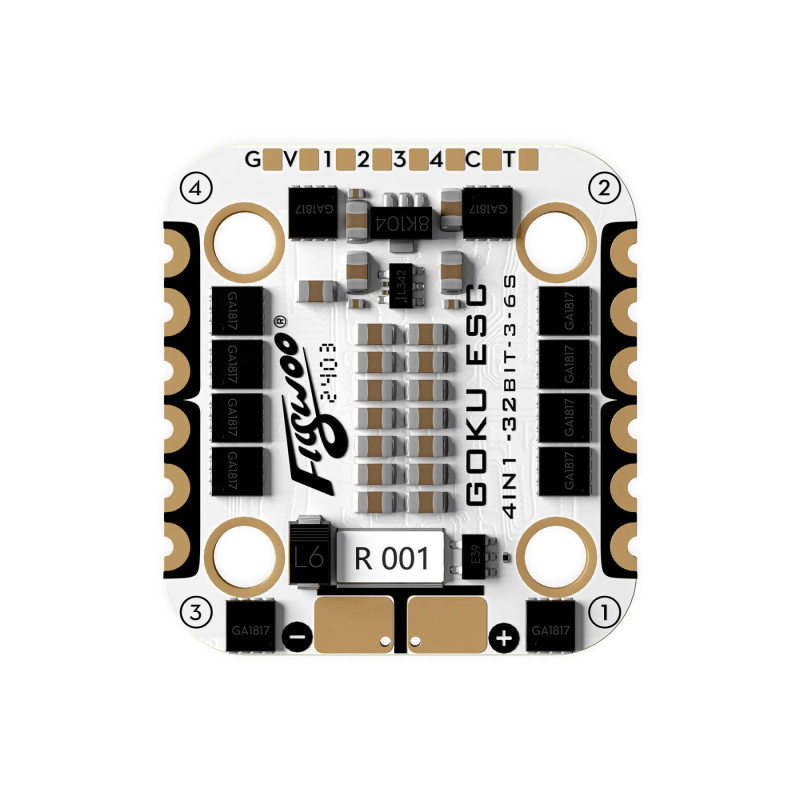

Top view of Flywoo G45M ESC board with capacitor and cable

High-performance 4in1 ESC for 3–5" freestyle quadcopters
