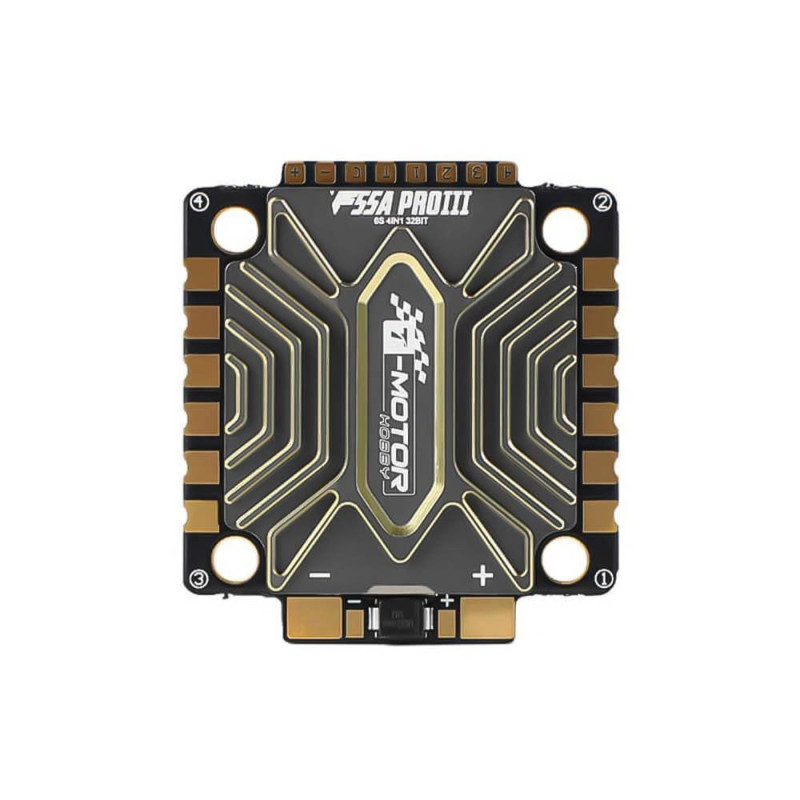

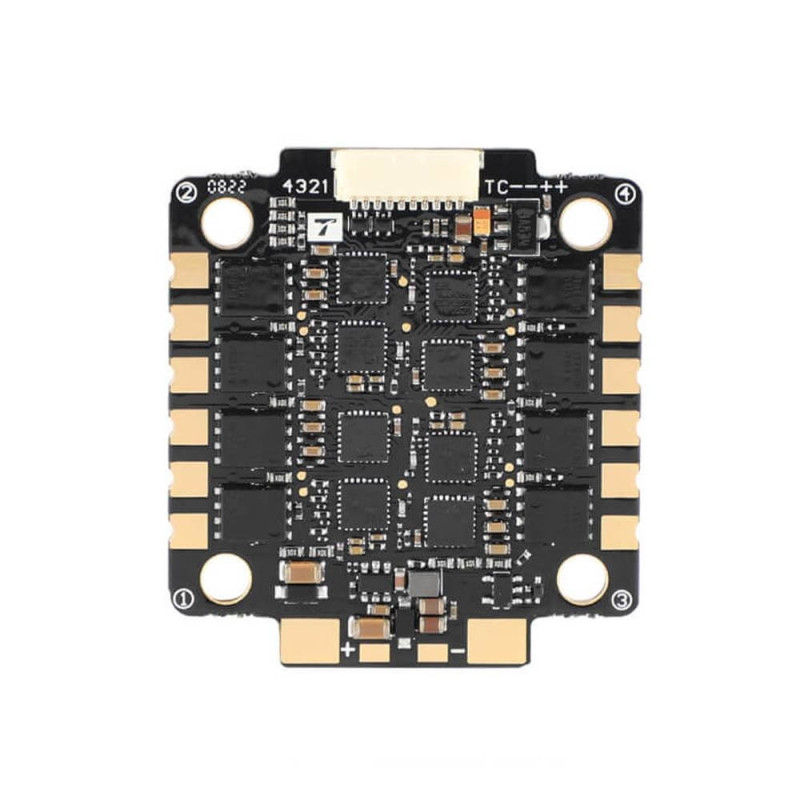

T-Motor F55A PRO III – 4-in-1 ESC 55A 3–8S BLHeli_32

High-performance ESC with TPHR8504 MOSFET and dual oxide heat sink

The T-Motor F55A PRO III is a premium 4-in-1 ESC featuring TPHR8504 MOSFETs and STM32G071 MCU. Designed for demanding FPV builds, it offers 3–8S support, robust TVS protection, and a wide 16–128kHz PWM range. The dual oxide heat sink design ensures excellent heat dissipation and stable output under heavy loads.

Key Features

  • ● TPHR8504 MOSFET and STM32G071 MCU
  • ● Wide PWM frequency: 16–128 kHz
  • ● Dual oxide heat sink design
  • ● TVS protection for extended durability
  • ● Direct plug-in with T-Motor F7 PRO FC

Technical Specifications

  • ● Continuous Current: 4×55A
  • ● Burst Current: 4×65A
  • ● LiPo Support: 3–8S
  • ● Protocols: DSHOT150/300/600/1200
  • ● Telemetry: Supported
  • ● Size: 45×41×7.3 mm
  • ● Weight: 17.8 g (with heatsink)
  • ● Mounting: 30.5×30.5 mm (M3)

Package Contents

  • ● 1× T-Motor F55A PRO III 4-in-1 ESC
  • ● 4× Short rubber grommets
  • ● 4× Long rubber grommets
  • ● 1× Capacitor
  • ● 2× FC cable

Note: Best performance when paired with T-Motor F7 PRO flight controller.
