JHEMCU RUIBET 60/65A – 4-in-1 ESC 3–6S DSHOT600 BLHeli_S

High-performance 4-in-1 ESC for FPV drones – 60A continuous, 65A burst

JHEMCU RUIBET 60/65A is a robust 4-in-1 brushless ESC designed for high-powered 3–6S FPV drones. With a continuous current rating of 60A and burst capability up to 65A per channel, it’s built to handle aggressive flying, freestyle, and racing conditions.

Running BLHeli_S firmware and supporting the DSHOT600 digital protocol, it delivers precise motor control, smooth throttle response, and reliable performance. The standard 30.5×30.5 mm mounting pattern makes it easy to install with most flight controllers on the market.

Key features:

  • ✅ Supports 3–6S LiPo batteries for versatile builds
  • ✅ 60A continuous current, 65A burst per channel
  • ✅ BLHeli_S firmware – reliable and customizable performance
  • ✅ DSHOT600 protocol – fast and accurate digital control
  • ✅ Compact 4-in-1 layout saves weight and space
  • ✅ 30.5×30.5 mm mounting – fits most standard FC stacks

📋 Technical specifications:

  • Input voltage: 3–6S LiPo
  • Continuous current: 60A per channel
  • Burst current: 65A (10 seconds)
  • Firmware: BLHeli_S
  • Protocol: DSHOT600 (also supports PWM/Oneshot/MultiShot)

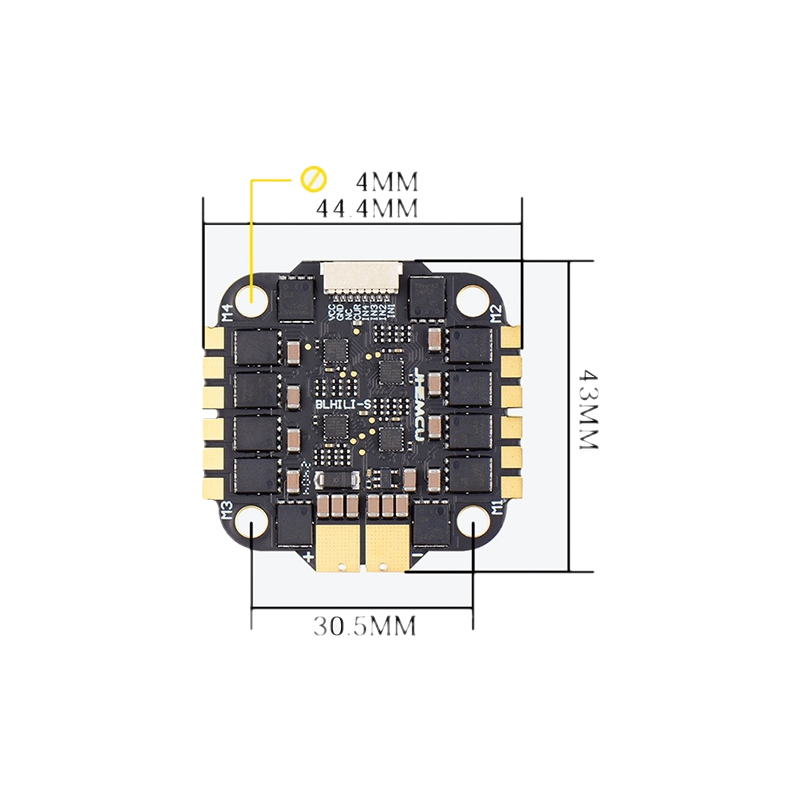

  • Mounting pattern: 30.5×30.5 mm (M3 holes)
  • Dimensions: 45×40×6 mm
  • Weight: approx. 15 g

📦 Package includes:

  • 1× JHEMCU RUIBET 60/65A 4-in-1 ESC
  • 1× Set of wiring cables
  • 1× Low ESR capacitor
  • 1× Mounting screw set
