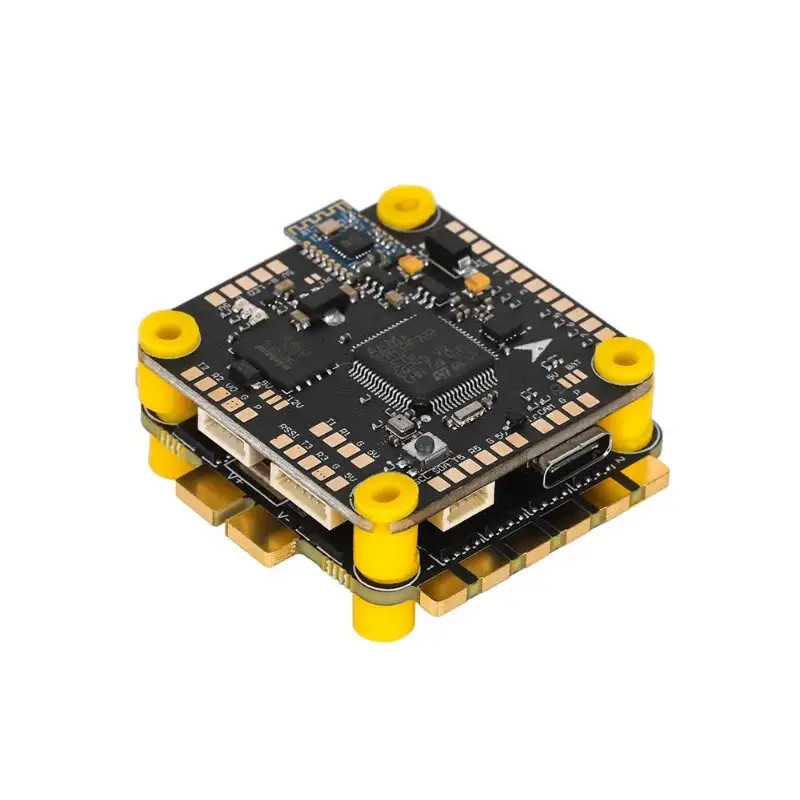

Flight Controller + 4in1 ESC Stack T-Motor Velox F7 SE 8S + V70A SE 8S 70A with AM32 Firmware

The T-Motor Velox F7 SE + V70A SE Stack combines a high-performance F7 SE flight controller with a powerful 70A 4in1 ESC, designed for advanced FPV builds. Supporting 4–8S LiPo, it delivers stable power, smooth control, and full responsiveness for freestyle and racing drones.

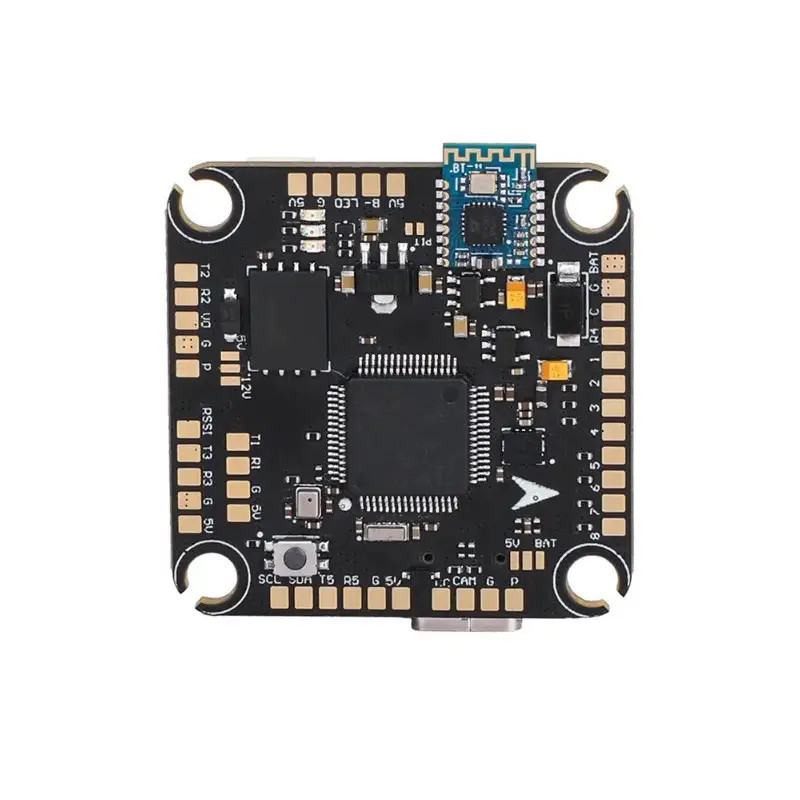

F7 SE Flight Controller Features

• ● MCU: STM32F722 – fast and stable performance
• ● Gyro: ICM-42688P
• ● OSD: AT7456E & HD
• ● Blackbox: 128 MB flash memory
• ● BEC: 5V/3A & 12V/3A Dual BEC
• ● 5 UART ports + Bluetooth
• ● Firmware: Betaflight
• ● USB-C connector
• ● Weight: 8 g

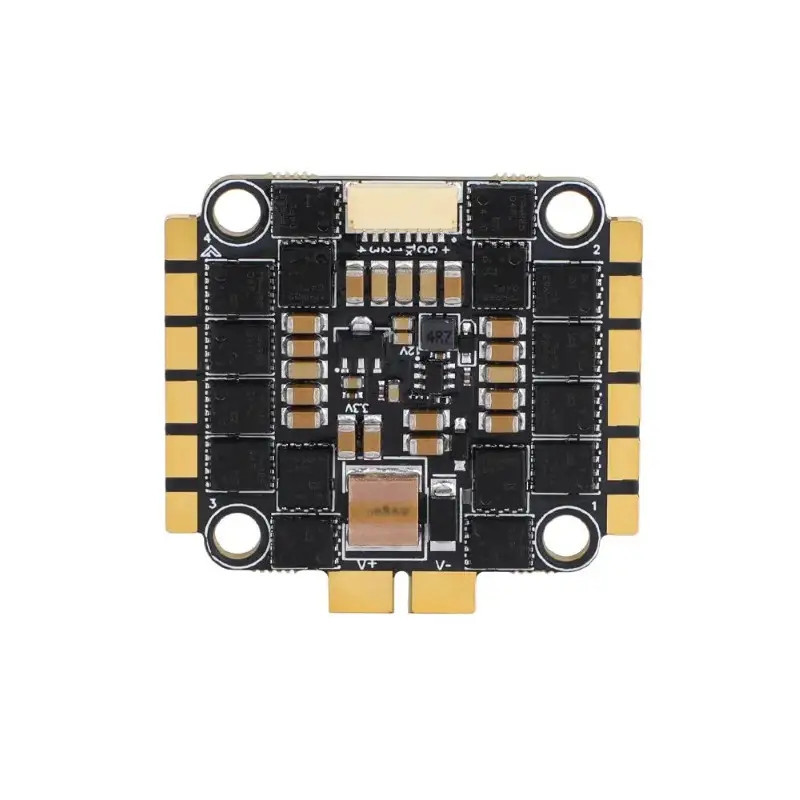

V70A SE ESC Features

• ● Continuous current: 70A / Peak: 75A
• ● Input voltage: 4–8S LiPo
• ● MCU: AT32F421
• ● Firmware: AM32 (open-source)
• ● Weight: ~12.3 g
• ● Size: 44.4 × 41 × 6 mm
• ● Mounting holes: 30.5 × 30.5 mm (M3)

Technical Specifications

• ● FC: Velox F7 SE 8S (STM32F722, ICM-42688P, AT7456E OSD, 128 MB Blackbox)
• ● ESC: Velox V70A SE 8S 70A, AM32, AT32F421

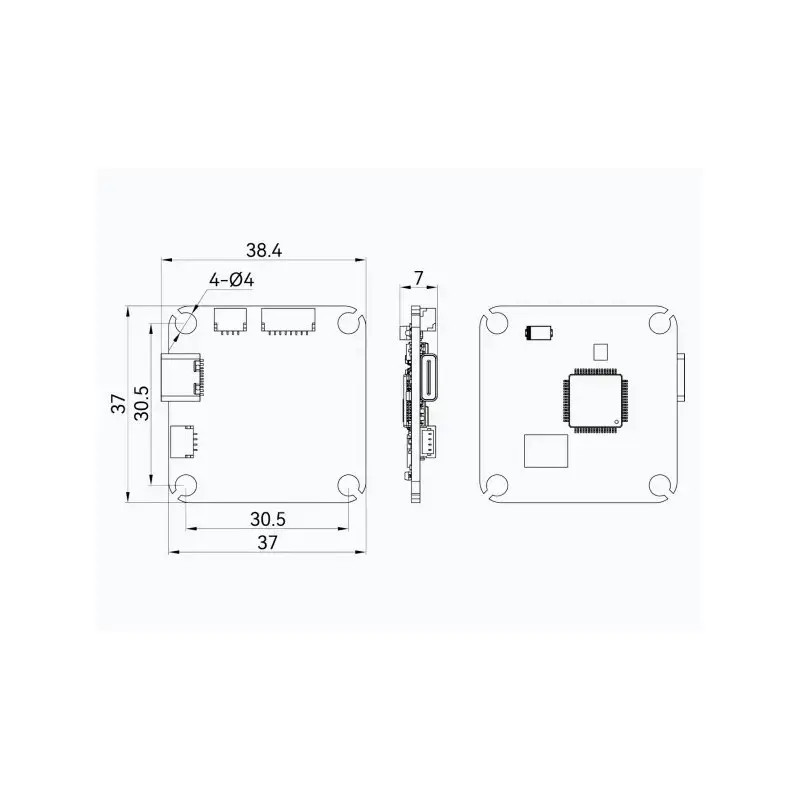

• ● Mounting: 30.5 × 30.5 mm
• ● Input power: 4–8S LiPo

Package Includes

• ● 1x T-Motor Velox F7 SE 8S Flight Controller
• ● 1x T-Motor Velox V70A SE 8S 4in1 ESC
