JHEMCU RuiBet 55A 3-6S Dshot600 BLHELI_ S 4in1 ESC FPV
177.77
Tax included

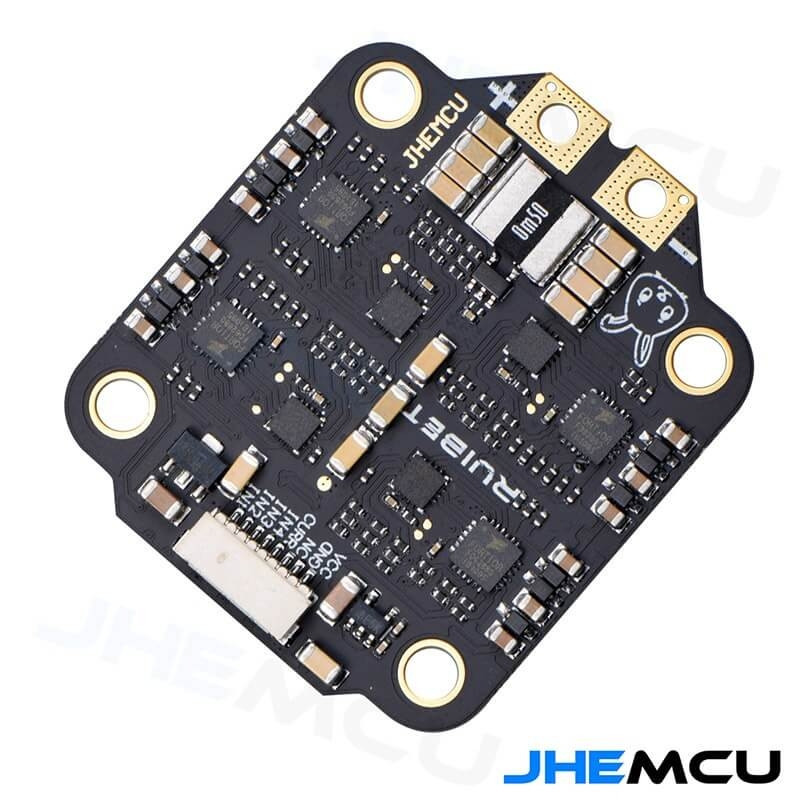

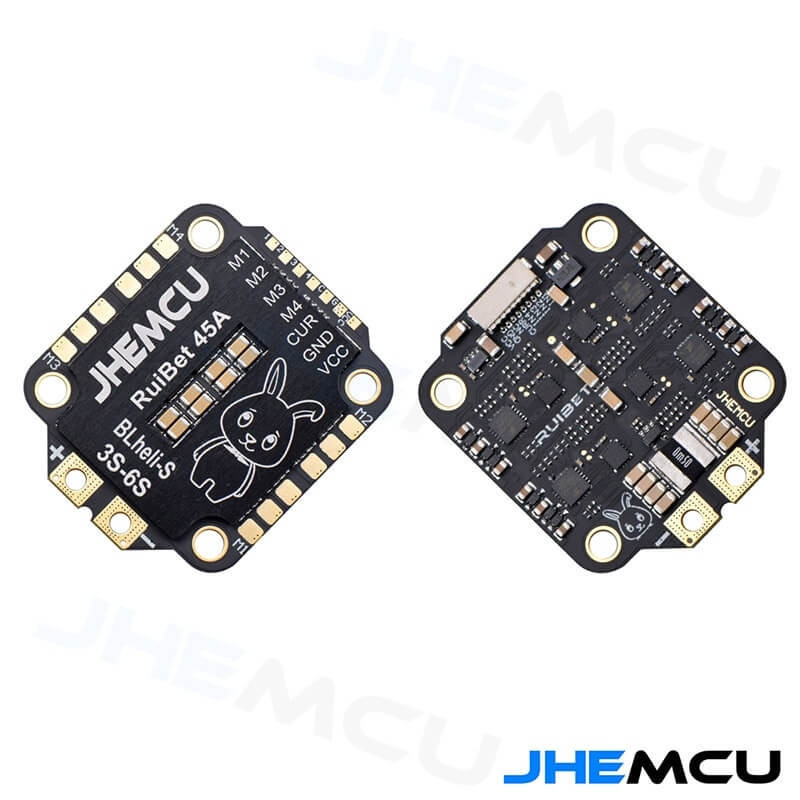

JHEMCU RuiBet 55A 4in1 ESC – High-Performance ESC for FPV Drones
4in1 ESC 3–6S with BLHeli_S and DShot600 – perfect for freestyle and racing builds
JHEMCU RuiBet 55A is a powerful and reliable 4-in-1 electronic speed controller designed for 5" FPV drones. Supporting up to 55A continuous current per channel and running BLHeli_S firmware with DShot600 protocol, this ESC offers smooth throttle response, durability, and consistent performance even under demanding flight conditions.
Key Features:
- ✅ Input voltage: 3–6S LiPo (11–27V)
- ✅ 55A continuous current per channel (4 total)
- ✅ Up to 65A peak current (short burst)
- ✅ Firmware: BLHeli_S (J_H_15_REV16_7)
- ✅ Supports DShot600 protocol
- ✅ Built-in current sensor (hall-based)
- ✅ No BEC output (power filtering only)
- ✅ Standard 30.5×30.5 mm mounting holes (M4 with grommets)

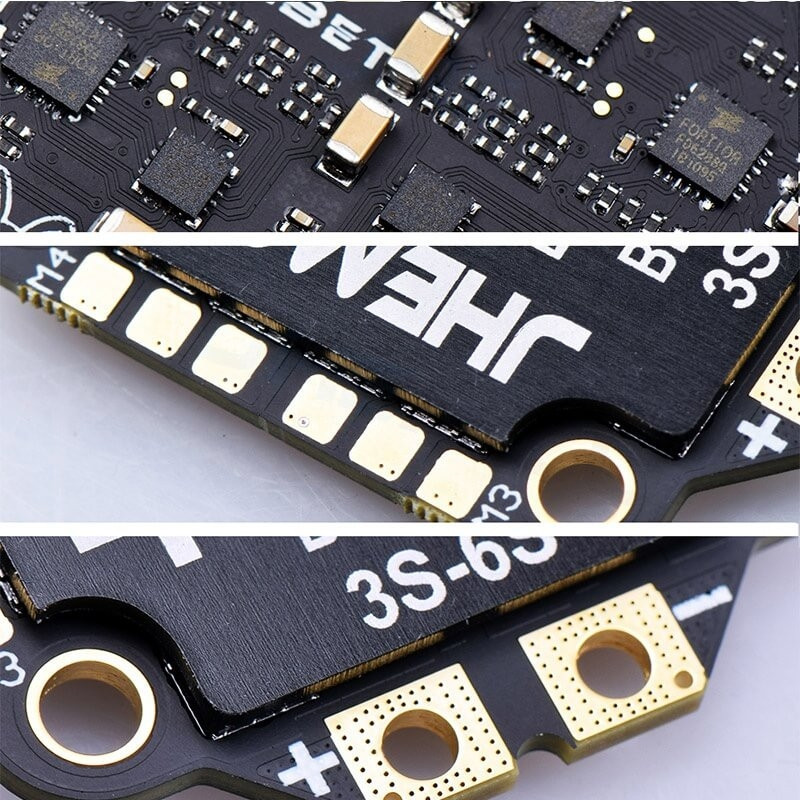

- ✅ Durable PCB with excellent heat dissipation
- ✅ Lightweight design – only 14.5 g
📋 Technical Specifications:
- Model: RuiBet 55A 4in1 ESC
- Type: 4-in-1 ESC for FPV drones
- Input voltage: 3–6S LiPo (11–27V)
- Constant current: 55A × 4 channels
- Burst current: up to 65A (for short duration)
- Firmware: BLHeli_S J_H_15_REV16_7
- Signal protocol: DShot600
- Current sensor: integrated
- BEC: None
- Mounting pattern: 30.5×30.5 mm (M4 holes with rubber grommets)
- Dimensions: 39.5 × 41 mm

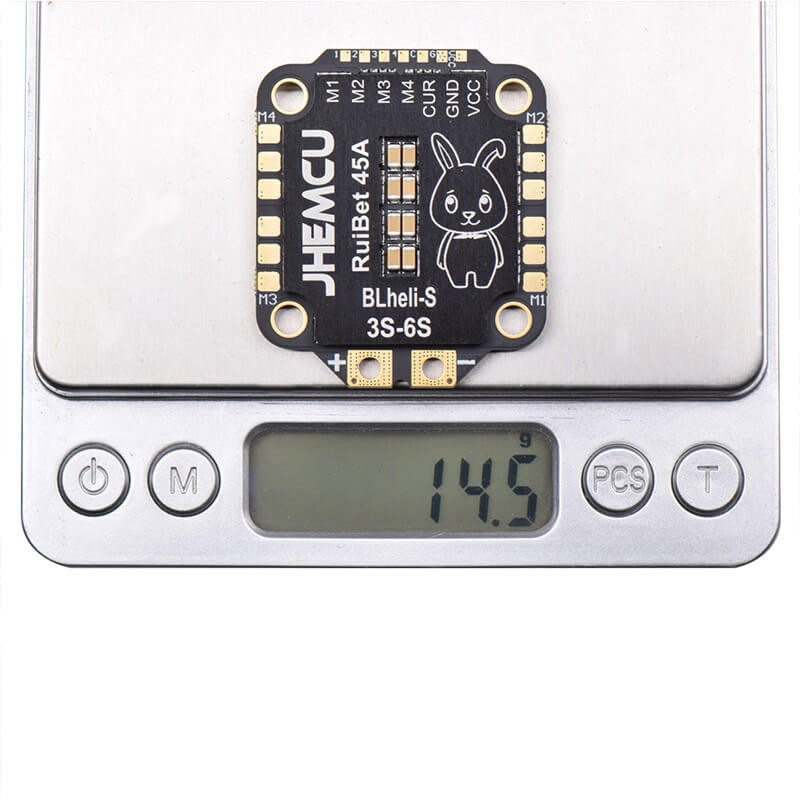

- Weight: 14.5 g

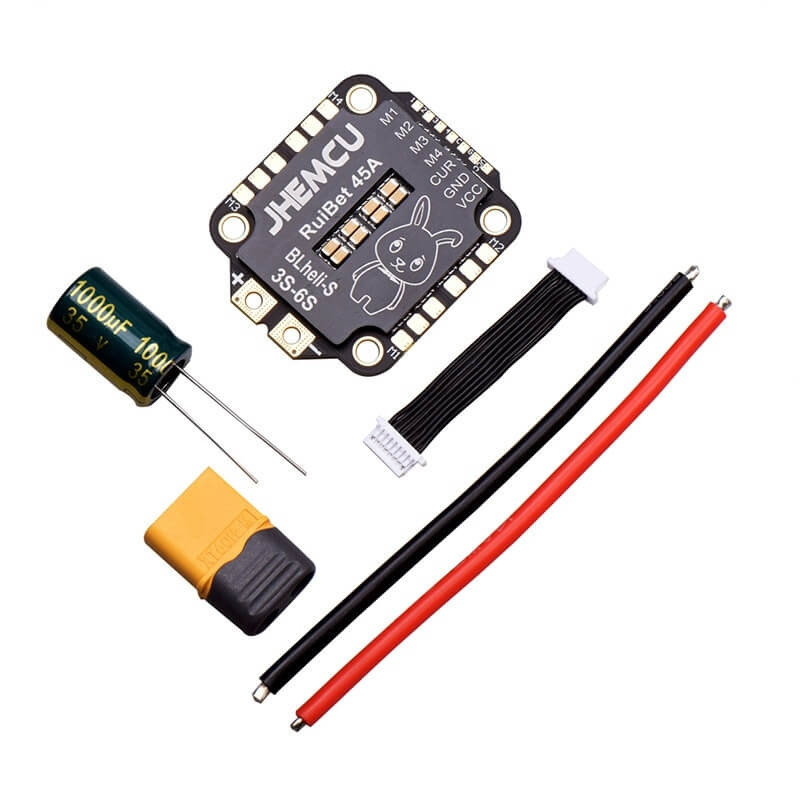

📦 Package Includes:
- 1× RuiBet 55A 4in1 ESC
- 1× 8-pin 1.0 mm cable (dual-ended)
- 1× XT60 connector with wires
- 1× 1000µF 35V low ESR capacitor
- 2× 16/12 AWG silicone wires
- 1× TVS protection diode
