ExpressLRS EP2 receiver Happymodel 2.4GHz ELRS

77.77


manufacturer
HappyModel
Quantity
0
shipment
Availability
Waiting for delivery
Supply
for free Display delivery cost
Gift

Soon!

Accessories

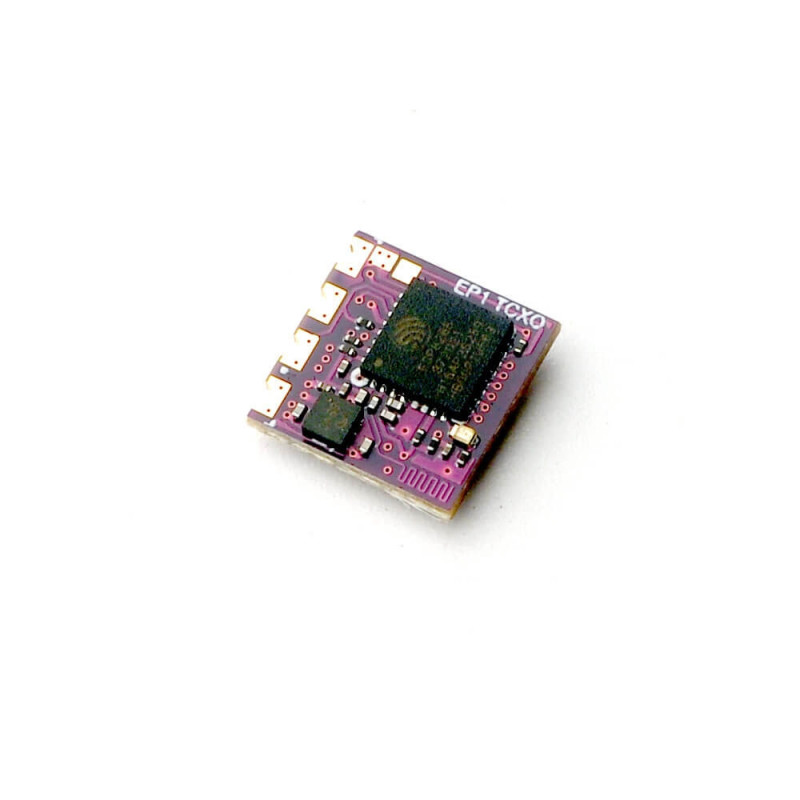

Receiver ExpressLRS EP2 Happymodel 2.4GHz

Receiver based on the open source ExpressLRS system. Thanks to its small size and low weight, it can be mounted in many structures. Perfect for racing FPV drones and long range constructions thanks to the low delay and high refresh rate.

Specification:

  • Type: ISM
  • ESP8285 MCU
  • SX1280IMLTRT RF Module
  • SMD Ceramic antenna
  • Frequency Range: 2400 MHz to 2500 MHz
  • Maximum receive refresh rate: 500Hz
  • Minimum receiver refresh rate: 25Hz
  • Working voltage: 5v
  • Weight: 0.44gram
  • Dimension: 10mm*10mm*6mm
  • Peak gain: 3.7dB

Package include:

  • 1x EP2 receiver

Schemat podłączenia odbiornika ExpressLRS EP1
