Advanced receiver with true antenna diversity and dual-band operation

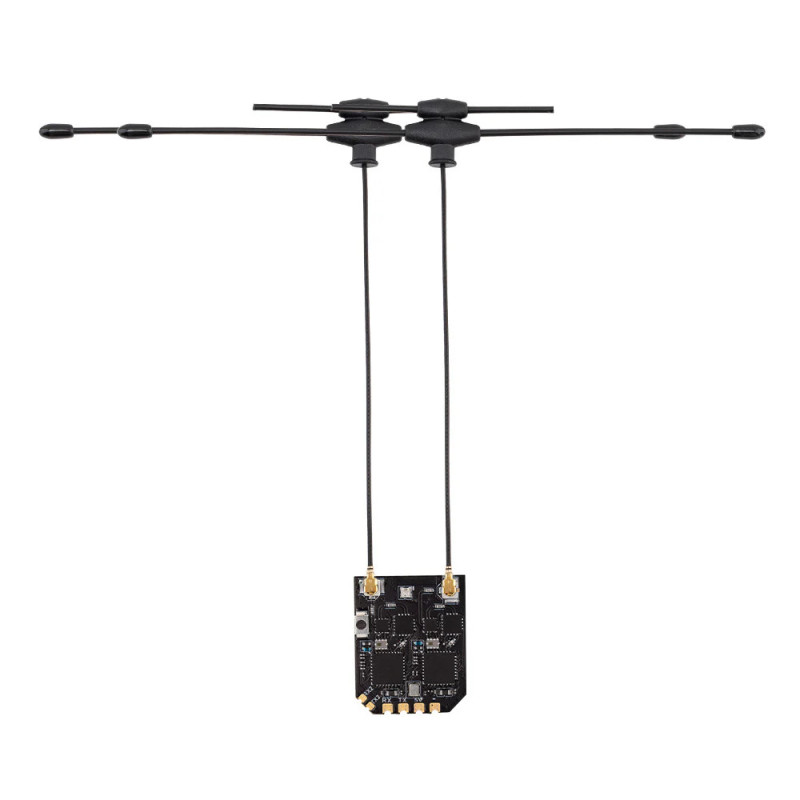

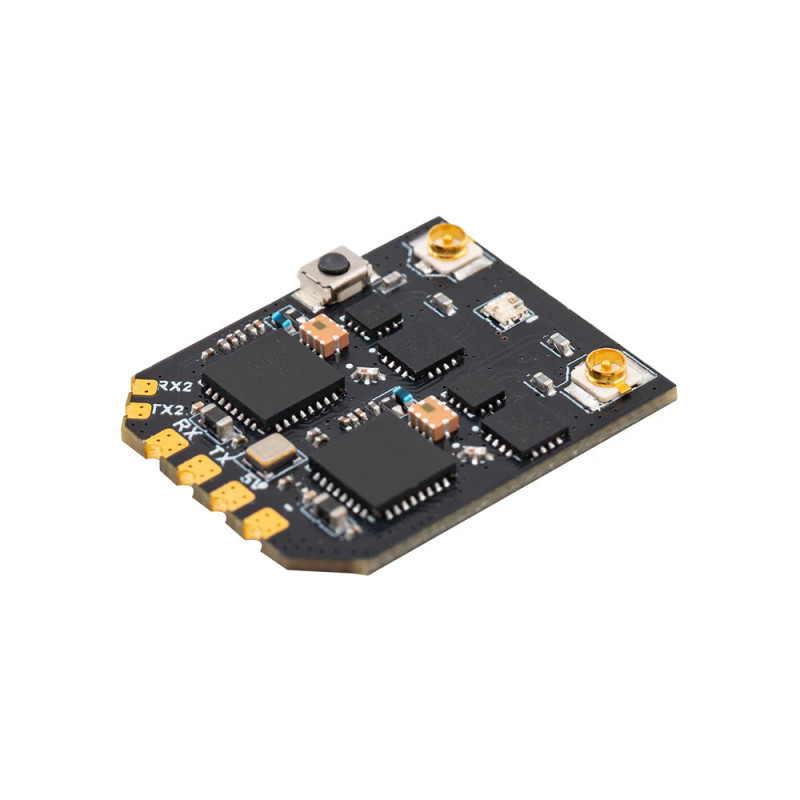

The RadioMaster XR4 Gemini Xrossband is a compact, high-performance ExpressLRS receiver featuring dual independent LR1121 RF chips and T-type antennas. It supports both 2.4GHz and 900MHz bands simultaneously in Xrossband mode, or either band independently in Gemini mode. With built-in Wi-Fi and WebUI support, firmware updates and configuration are easy and cable-free.

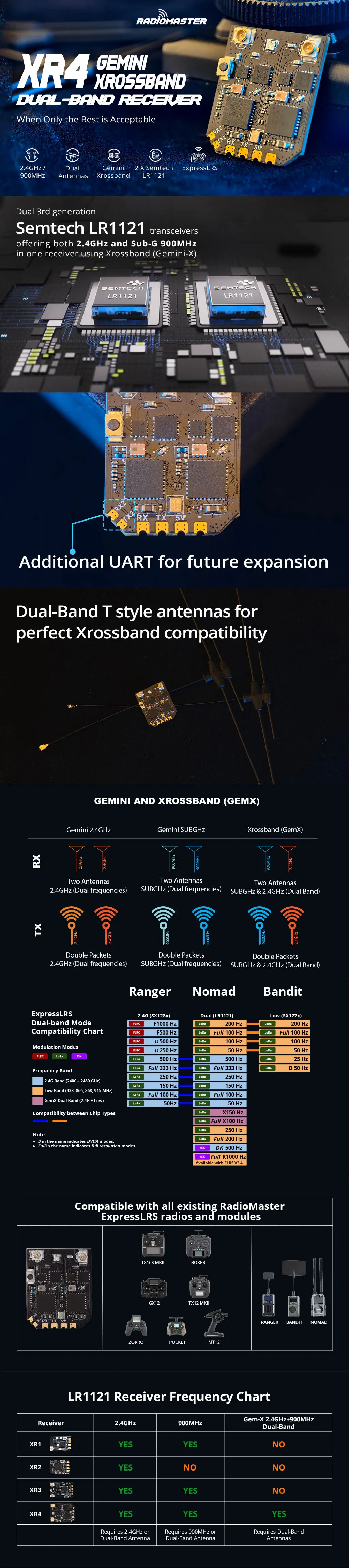

Key Features
● Dual-band operation: 2.4GHz and 900MHz with antenna diversity
● Gemini and Xrossband modes for flexible RF control

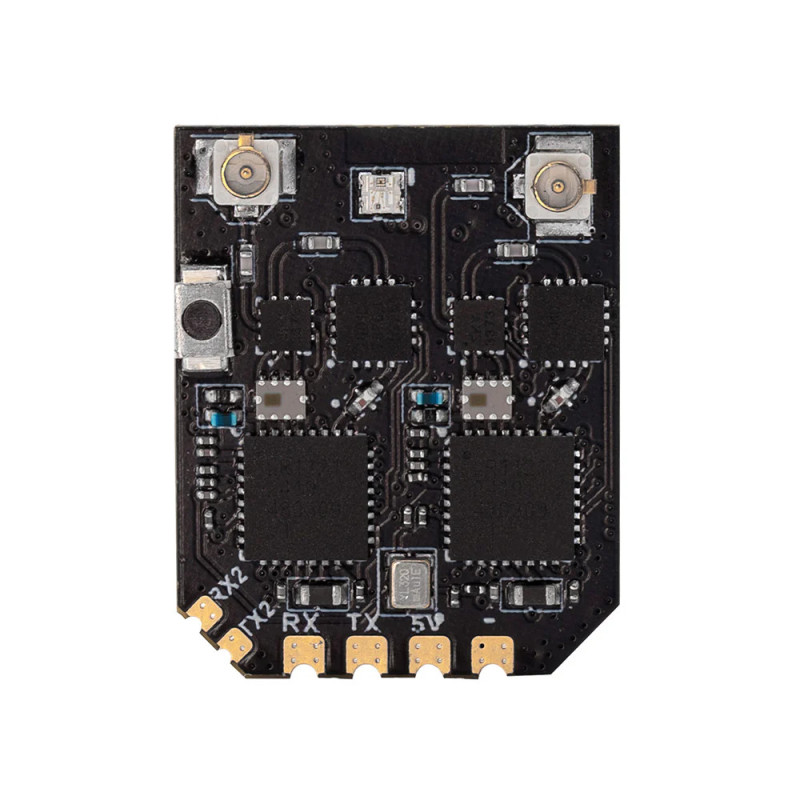

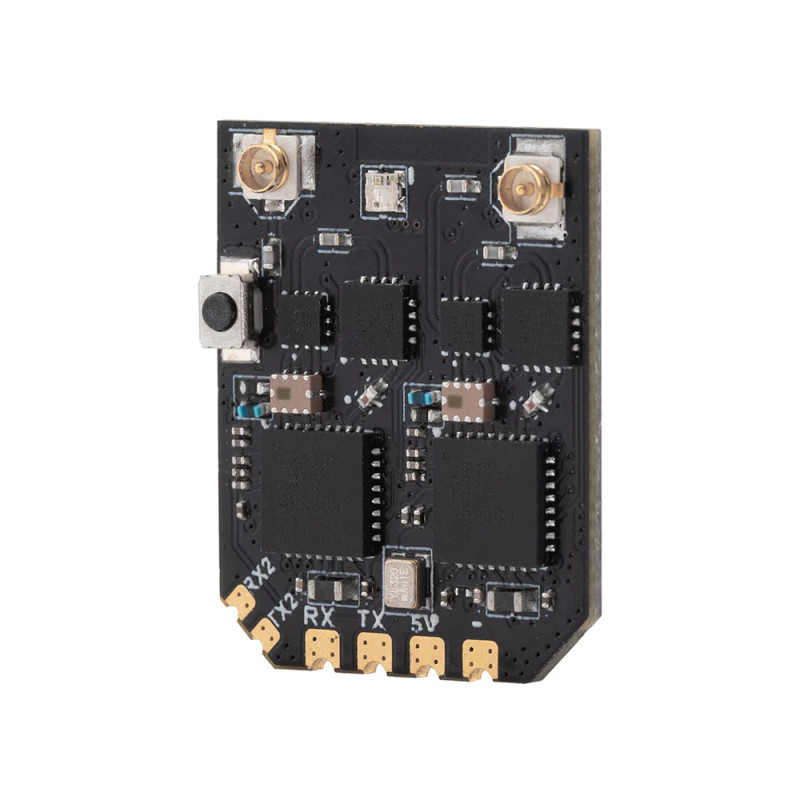

● Two independent Semtech LR1121 transceivers
● Built-in Wi-Fi with WebUI – no tools required to update

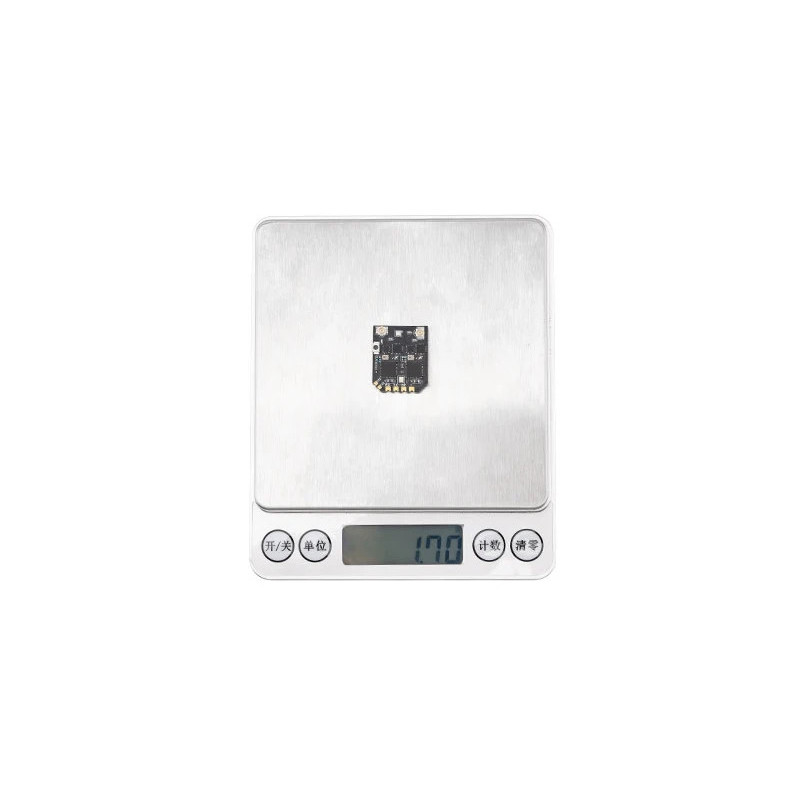

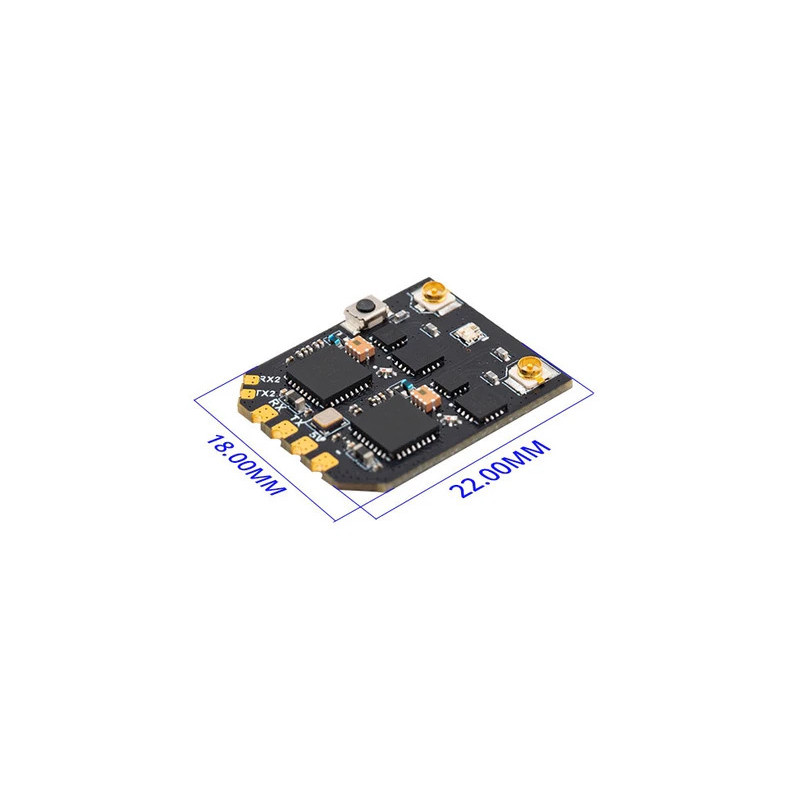

● Ultra-light: 22×18×4 mm, only 1.7g (without antennas)

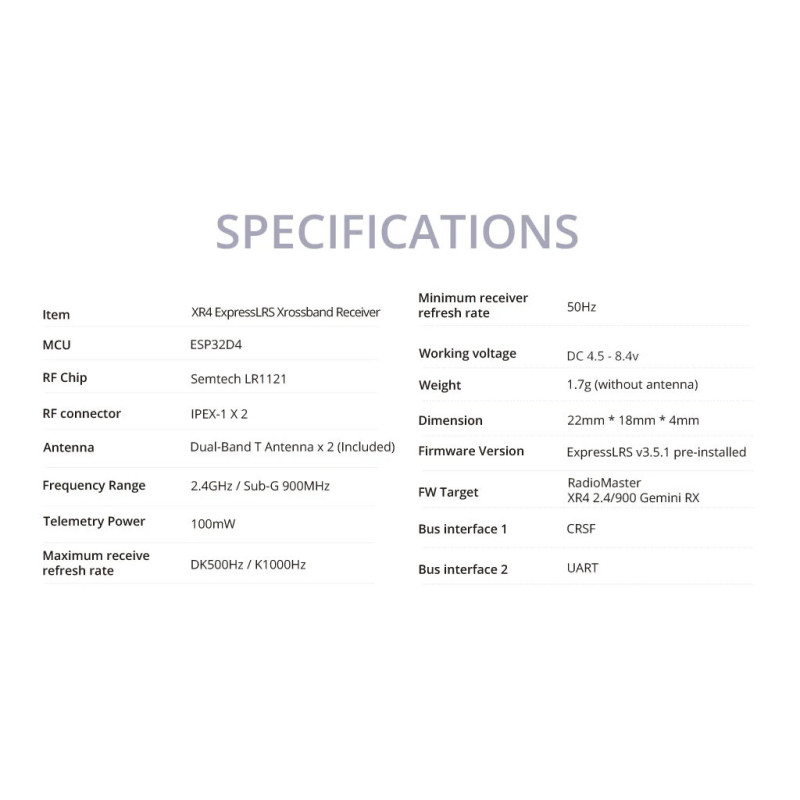

Technical Specifications
● Frequency: 2.4GHz and 868/915MHz Sub-G (simultaneous)
● Telemetry Power: up to 100mW
● Refresh Rates: 50Hz – 500Hz (2.4GHz) / up to 1000Hz (Sub-G)
● Input Voltage: 4.5V – 8.4V DC
● Interface: CRSF (UART)
● Firmware: ExpressLRS v3.5.1 (pre-installed)

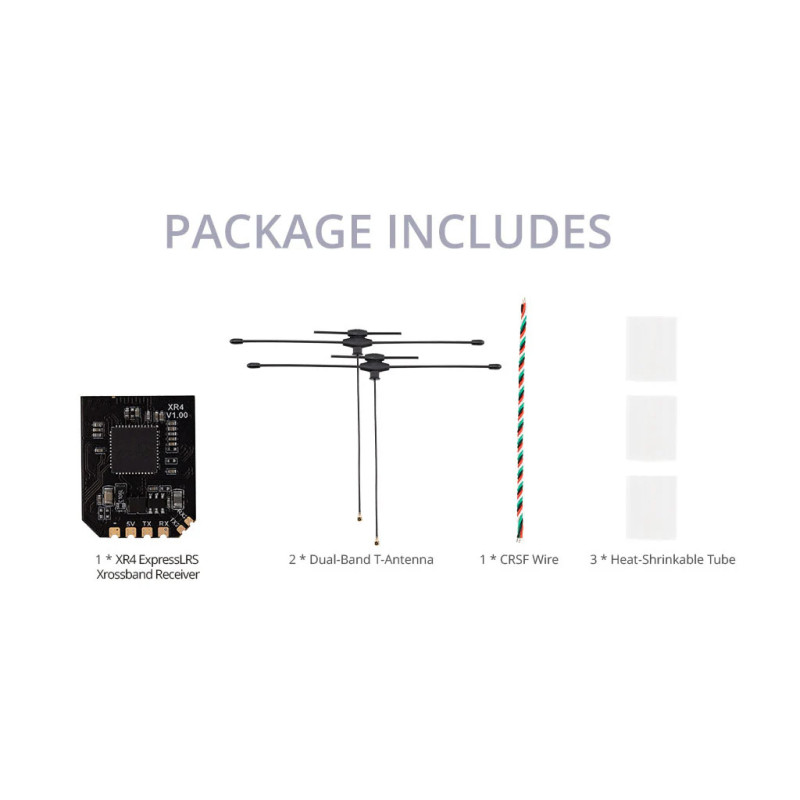

Package Contents
● 1× XR4 Gemini Xrossband Receiver

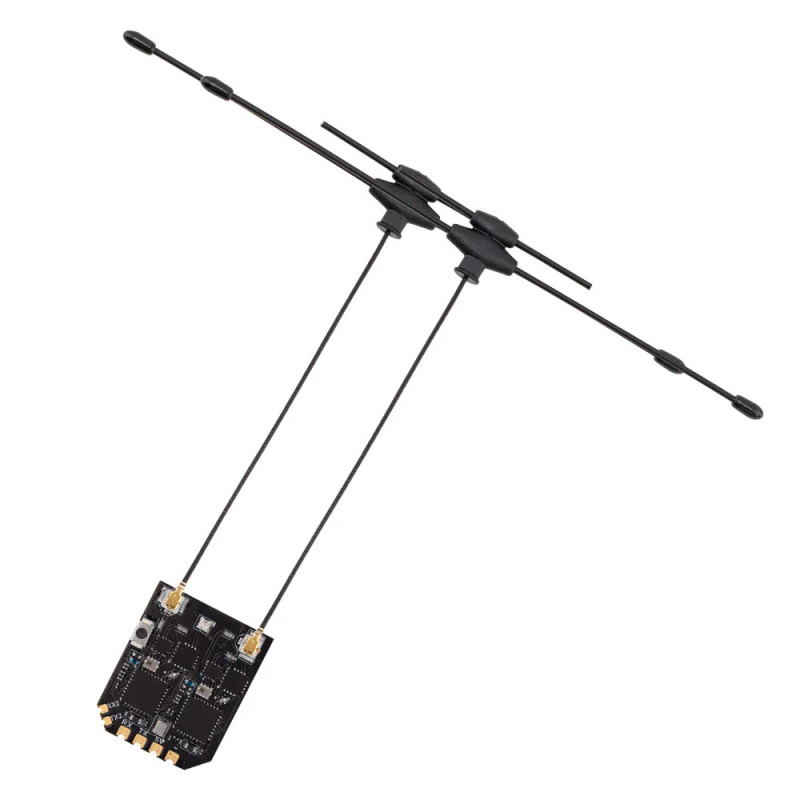

● 2× Dual-Band T-Antennas
● 1× CRSF Cable
● 3× Heat-Shrink Tubes
● 1× Quick Start Card
FAQ
Frequently Asked Questions about the RadioMaster XR4 Gemini Xrossband ExpressLRS Receiver
