ExpressLRS RP3 V2 2.4GHz FPV receiver with TCXO

RadioMaster RP3 V2 ExpressLRS 2.4GHz Nano Receiver – TCXO, Diversity, UFL Antennas

Name: RadioMaster RP3 V2 ExpressLRS 2.4GHz Nano Receiver – TCXO, Diversity, UFL Antennas
Brand: RadioMaster
SKU: HP0157.RX-RP3-V2
Price: 101.77 PLN
Availability: InStock

RadioMaster

SKU: HP0157.RX-RP3-V2

101.77

In stock – 4 szt.

30-day returns No questions asked
12 mo warranty Manufacturer + Avifly
Shipping availability Same day before 12:00

RadioMaster RP3 V2 ExpressLRS 2.4GHz Nano Receiver – TCXO, Diversity, UFL

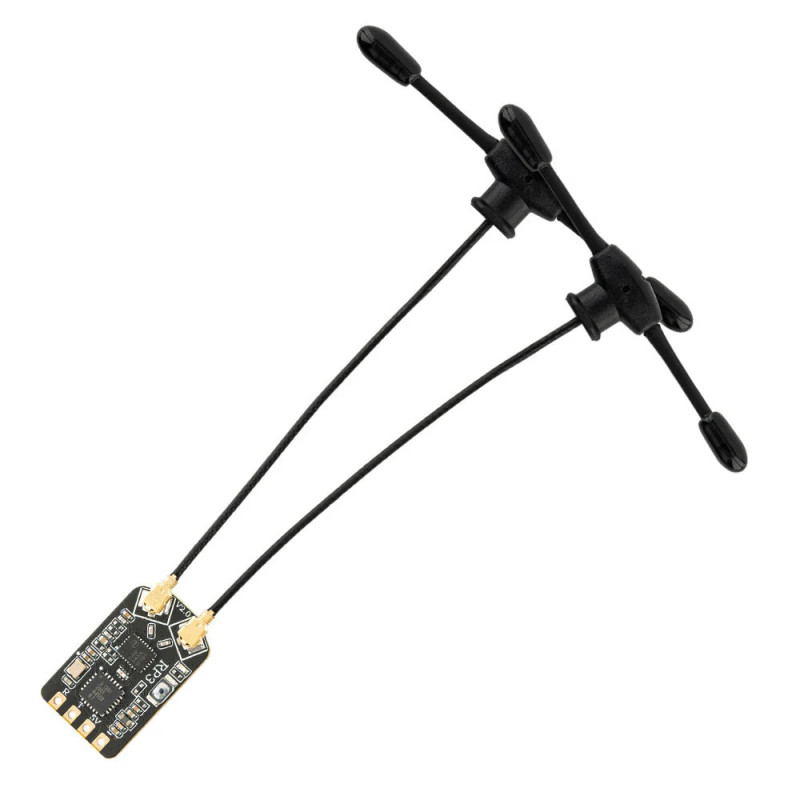

The RadioMaster RP3 V2 is an advanced nano FPV receiver with TCXO and dual UFL antennas (diversity). It ensures stable signal, minimal interference and reliable performance for both FPV racing and long-range flights.

Key Features

● TCXO – stable frequency across temperature changes
● Diversity – dual UFL antennas for stronger signal
● Compatible with all ExpressLRS 2.4GHz TX modules
● Ultra-low latency & high refresh rate
● WiFi firmware updates & WebUI configuration
● Lightweight – approx. 2.5 g with antennas

Technical Specifications

Model: RadioMaster RP3 V2 Nano ExpressLRS 2.4GHz
MCU: ESP8285
RF Chip: SEMTECH SX1281
Frequency Range: 2.404 – 2.479 GHz
Max Refresh Rate: 500Hz / F1000Hz
Min Refresh Rate: 25Hz
Telemetry Power: 10mW
Antennas: 2 × UFL 2.4GHz T (65mm / 95mm)
Operating Voltage: 5V

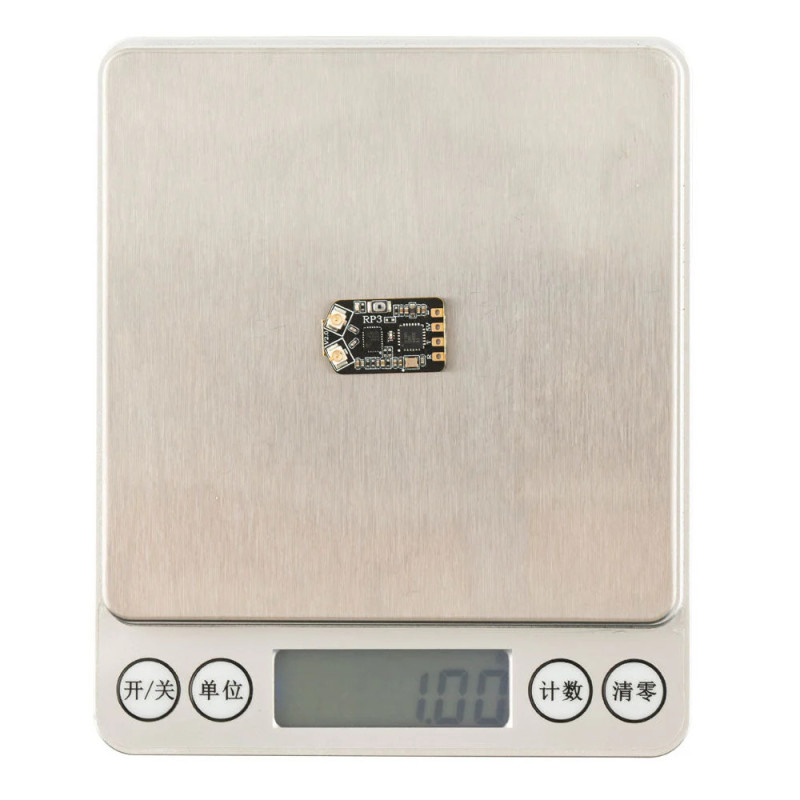

Weight: ~2.5 g with antennas
Dimensions: 13 × 11 × 3 mm
Firmware: ExpressLRS v2.4 (pre-installed)
Bus Interface: CRSF

TCXO & Diversity

With TCXO and dual antenna diversity, the RP3 V2 delivers maximum stability, reducing signal loss and ensuring consistent performance even in demanding FPV racing or long-range flights.
