RadioMaster RP1 V2 ExpressLRS 2.4GHz Nano Receiver – TCXO, UFL Antenna
92.77
Tax included
RadioMaster RP1 V2 ExpressLRS 2.4GHz Nano Receiver – TCXO, UFL Antenna
Reliable FPV nano receiver with TCXO and ultra-low latency
The RadioMaster RP1 V2 is the latest generation of nano receivers built on the open-source ExpressLRS system. With a built-in TCXO (temperature-compensated crystal oscillator), it offers outstanding frequency stability and reliable signal in any conditions. Weighing only 2.2 g with antenna, the RP1 V2 fits virtually any FPV drone – from racing to long range. w każdych warunkach
Key Features
- ● Built-in TCXO – stable frequency in all environments
- ● Ultra-lightweight – only 2.2 g with antenna
- ● ExpressLRS 2.4GHz compatible with all modules
- ● UFL antenna connector – replaceable 65mm T antenna
- ● Firmware updates via WiFi + WebUI
- ● Low latency and high refresh rate – ideal for FPV racing and long range
Technical Specifications
- Model: RadioMaster RP1 V2 Nano ExpressLRS 2.4GHz Receiver
- MCU: ESP8285
- RF Chip: SEMTECH SX1281
- Frequency Range: 2.404 – 2.479 GHz
- Max Refresh Rate: 500Hz / F1000Hz
- Min Refresh Rate: 25Hz
- Telemetry Power: 10mW

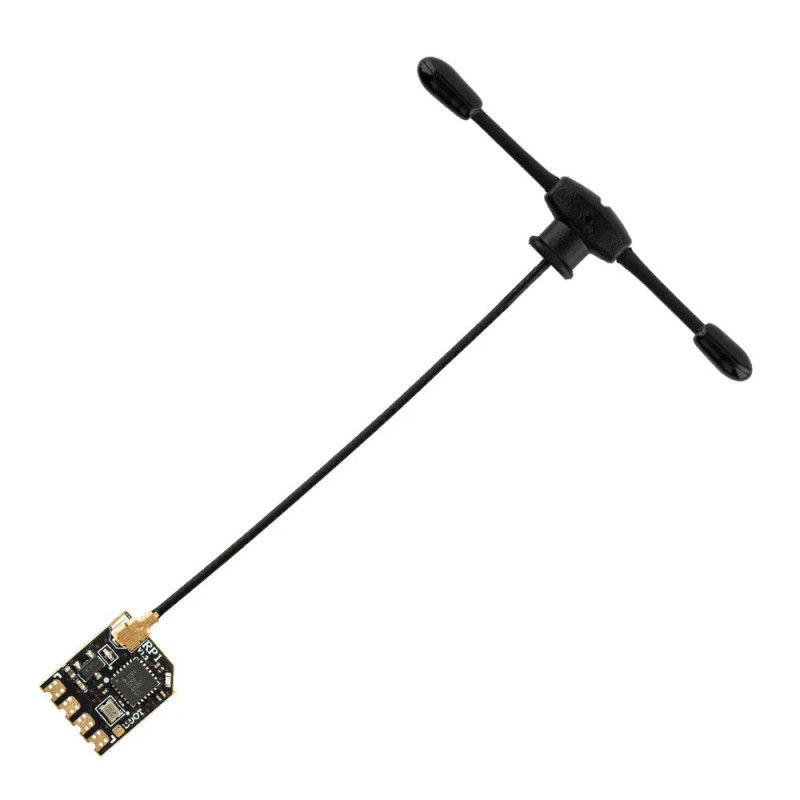

- Antenna: UFL – 65mm 2.4GHz T Antenna
- Operating Voltage: 5V

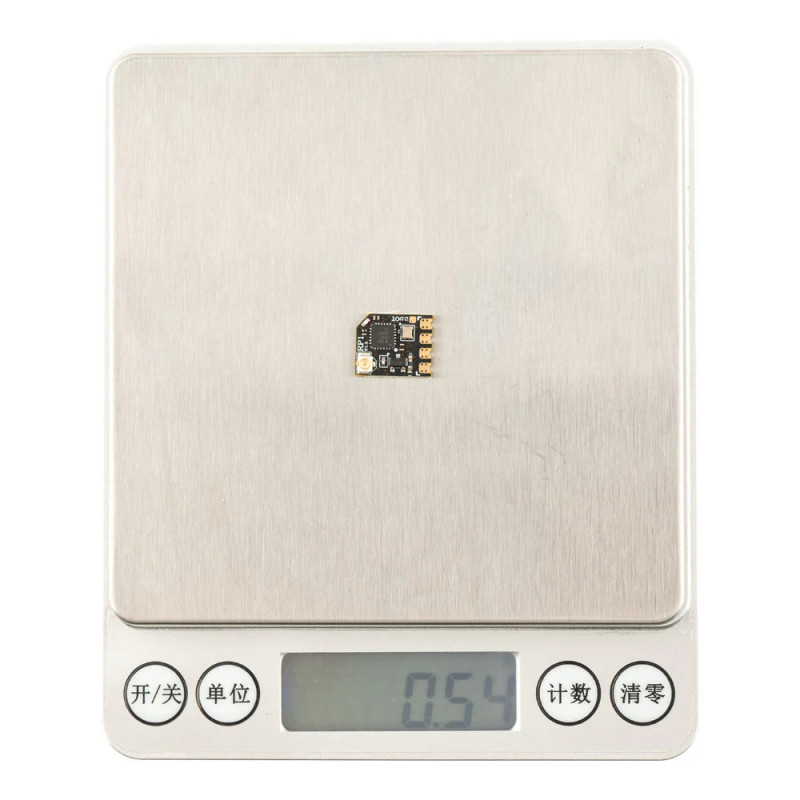

- Weight: 2.2 g (with antenna)
- Dimensions: 13 × 11 × 3 mm
- Firmware: ExpressLRS v2.4 (pre-installed)
- Bus Interface: CRSF
TCXO – Signal Stability
With TCXO, the receiver maintains stable frequency even under temperature changes. This ensures more reliable connection, reduced frequency drift over time, and superior long-range FPV performance.

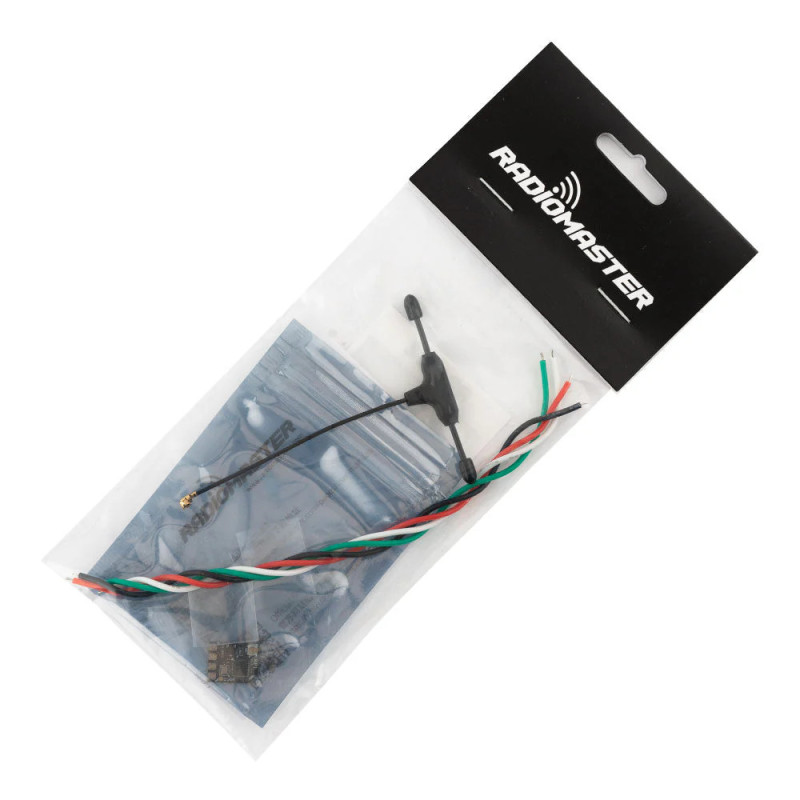

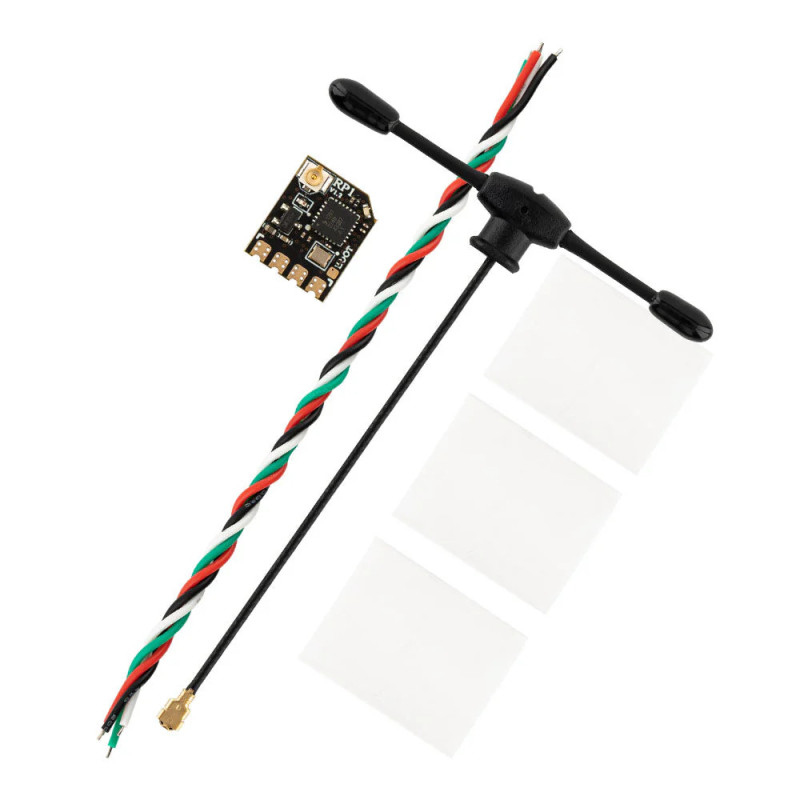

Package Includes
- 1 × RadioMaster RP1 V2 ExpressLRS 2.4GHz Nano Receiver
- 1 × 65mm UFL 2.4GHz T Antenna
- 1 × CRSF wire
- 1 × User Manual
No customer reviews for the moment.
