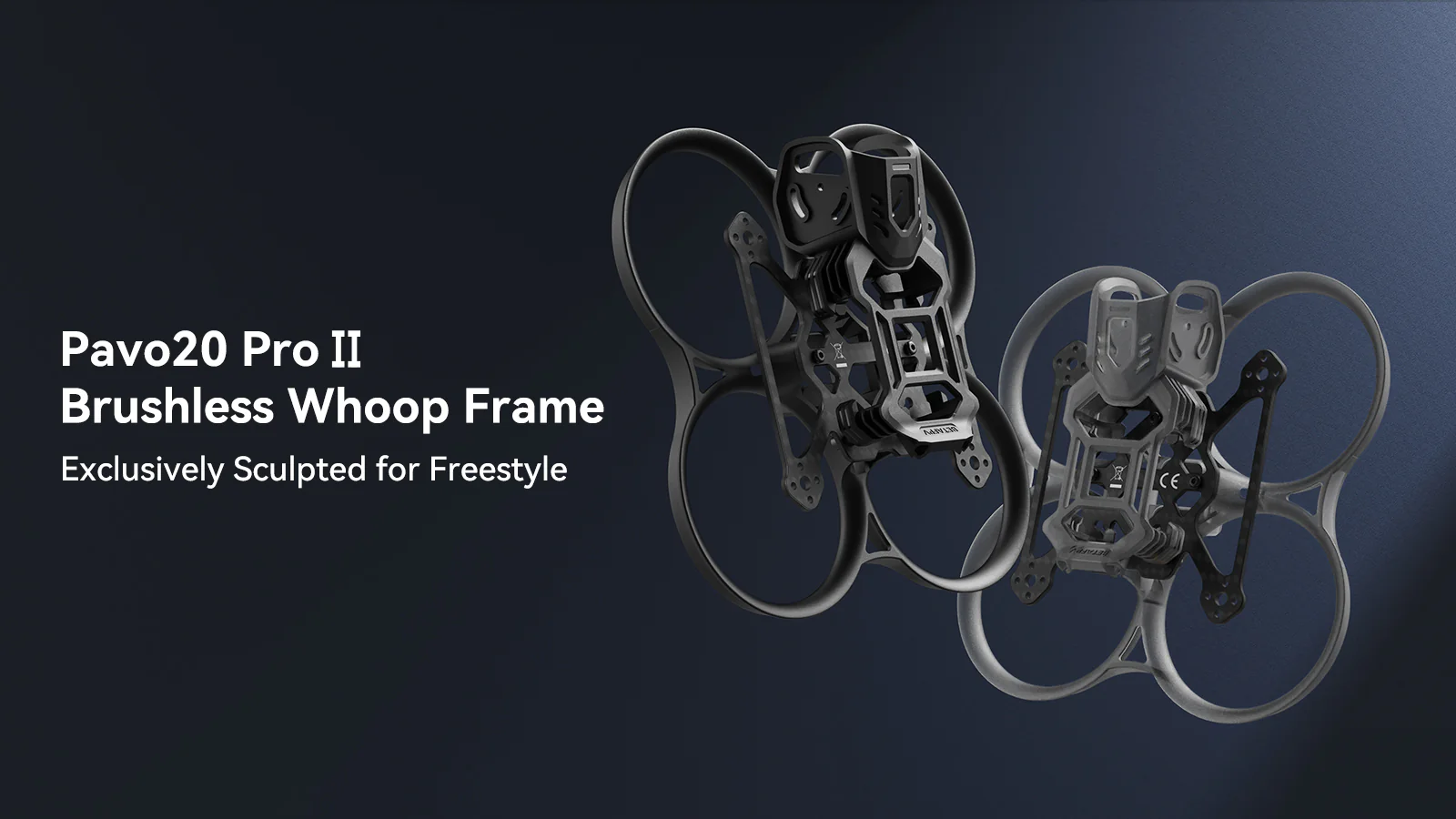

BETAFPV Pavo20 Pro II 2.2'' FPV Whoop Frame – O4 / O4 Pro

Modular frame system for the Pavo20 Pro II cinewhoop – engineered for DJI O4 & O4 Pro

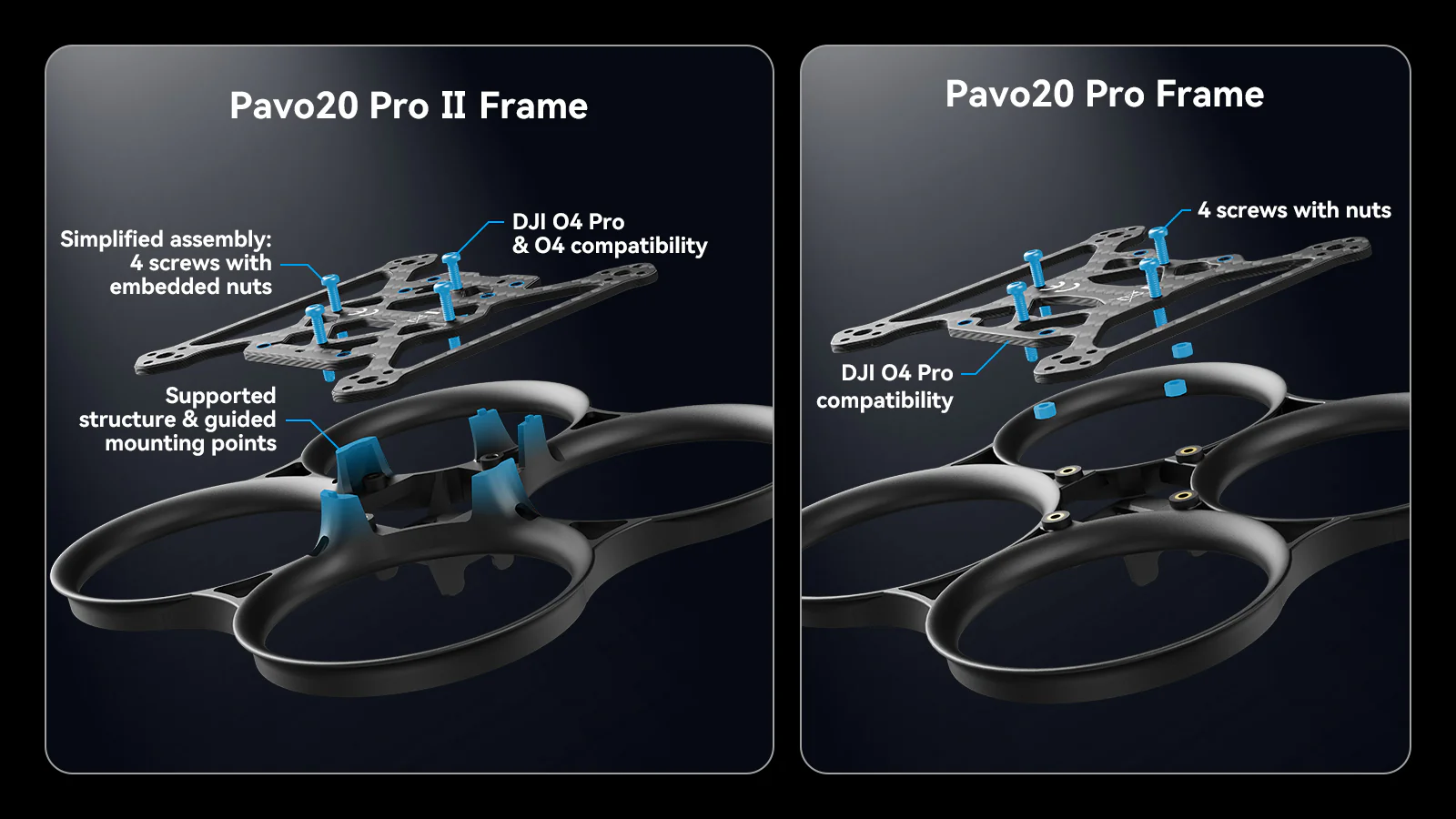

The Pavo20 Pro II Brushless Whoop Frame is the next-generation frame designed for the 2.2'' Pavo20 Pro II cinewhoop, now offering full compatibility with both the DJI O4 Air Unit and DJI O4 Air Unit Pro through its redesigned carbon plate. A reinforced assembly system with embedded locknuts provides outstanding rigidity and enables a fast, secure build using just four screws.

Constructed from crash-resistant PA12 whoop ducts and optimized for airflow, the frame delivers an 8–11% thrust increase compared to ductless layouts. The integrated O4 Air Unit Pro Bracket ensures smooth HD footage, offering a protected camera side panel and 0–40° precision tilt adjustment. Vibration-damping rubber mounts guarantee jitter-free cinematic performance. Available in Black and Transparent Grey.

Key Features

• • Quick assembly with a rigid 4-screw structure

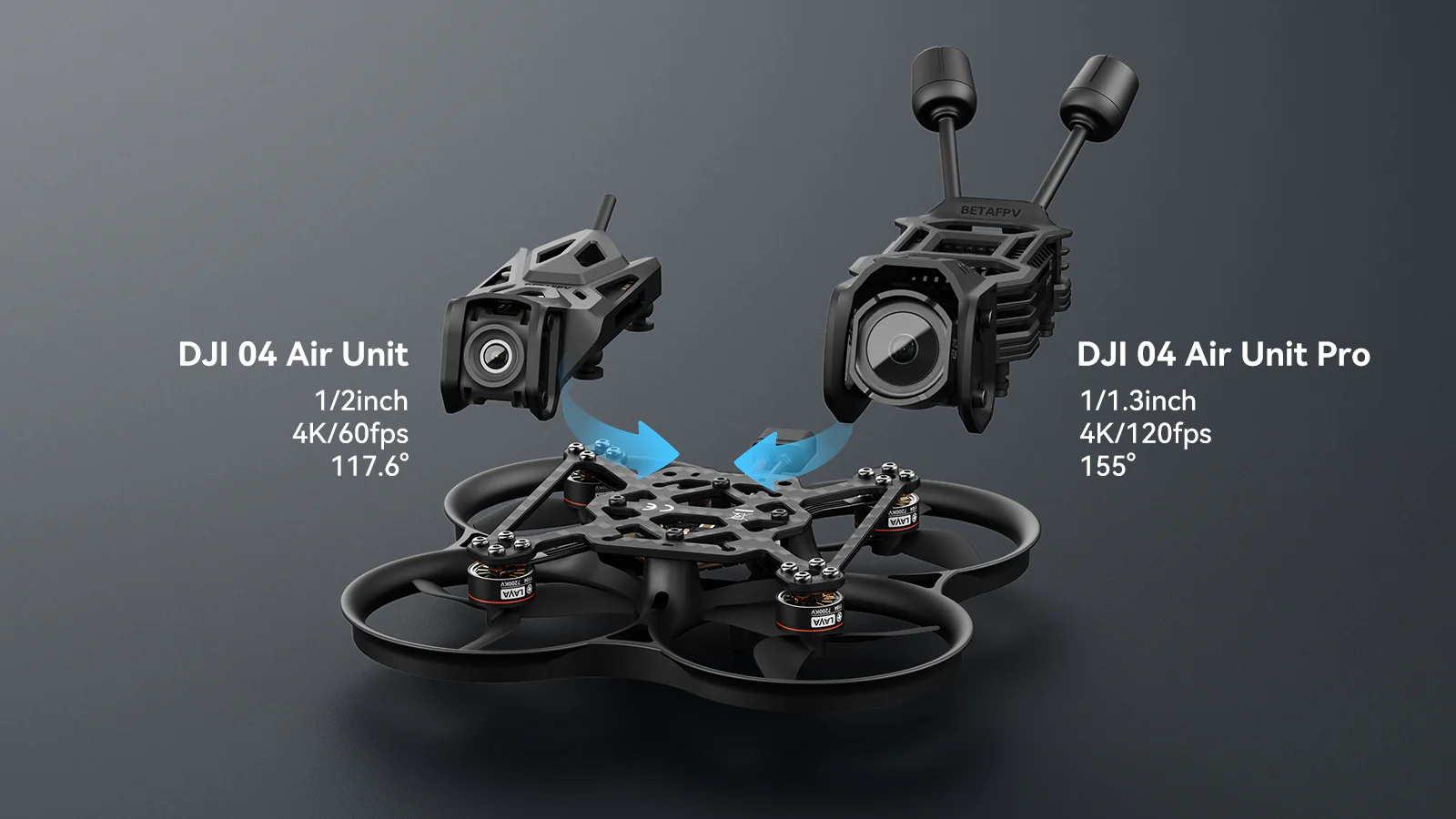

• • Fully compatible with DJI O4 Air Unit & O4 Air Unit Pro
• • Durable PA12 whoop ducts with reinforced cross-section
• • Aerodynamic duct design provides an 8–11% thrust boost

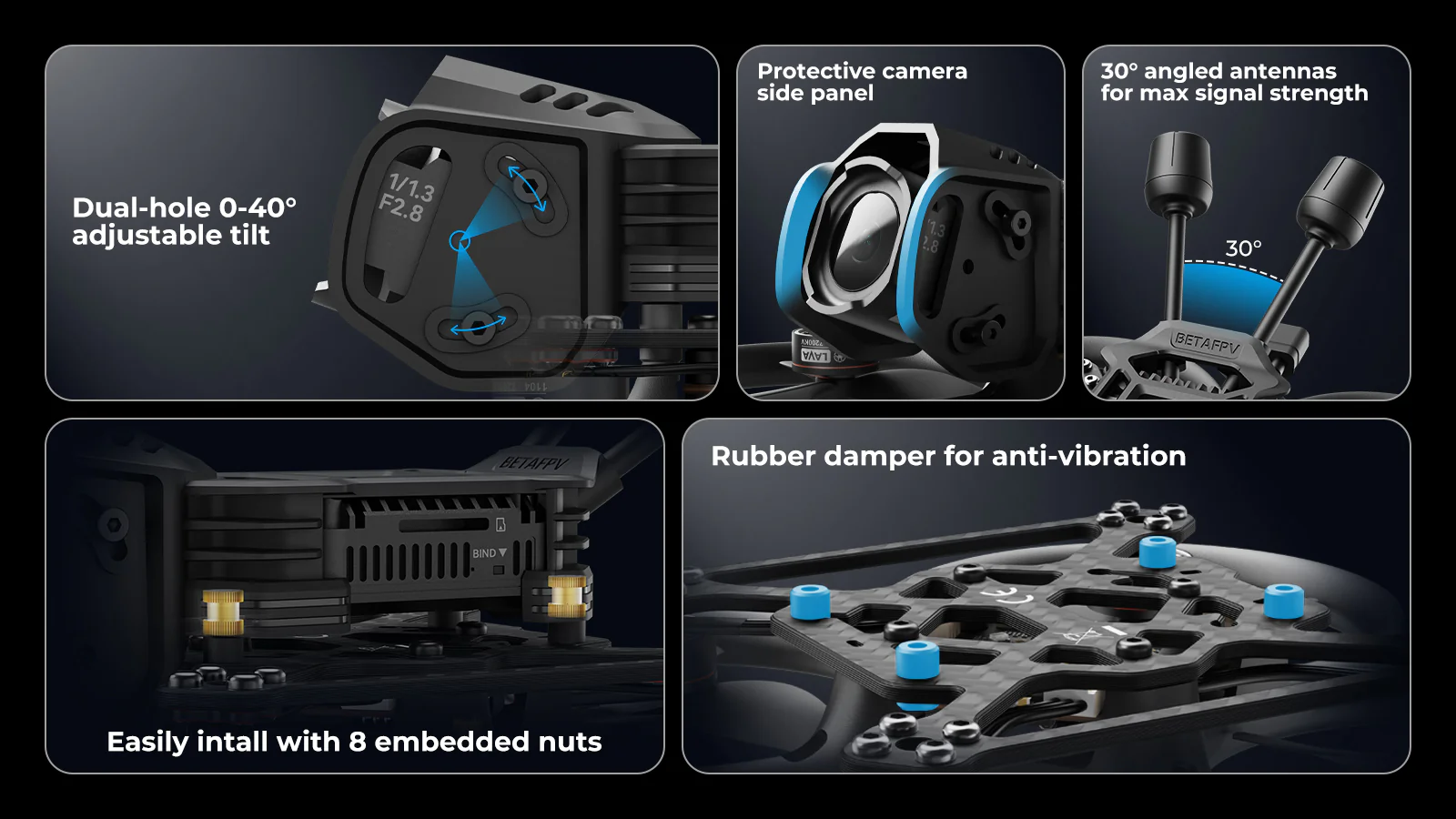

• • Integrated O4 Air Unit Pro Bracket for vibration-free HD footage
• • Pavo-series vibration damping system for buttery-smooth video
• • Modular design – choose between Frame or Whoop Duct versions
• • Optimized for powerful 3S propulsion

Technical Specifications

• • Item: Pavo20 Pro II Brushless Whoop Frame
• • Wheelbase: 93.9 mm
• • Material: PA12 / PP
• • Frame Weight: 35.7 g (with O4 Air Unit Pro Bracket)
• • Whoop Duct Weight: 17.8 g
• • Camera Mount: 20 mm spacing, ND/UV filter support
• • FC Mounting: 26×26 mm
• • Motor Mounting: 4-M2-φ9 mm
• • Battery Slot: 20 mm width

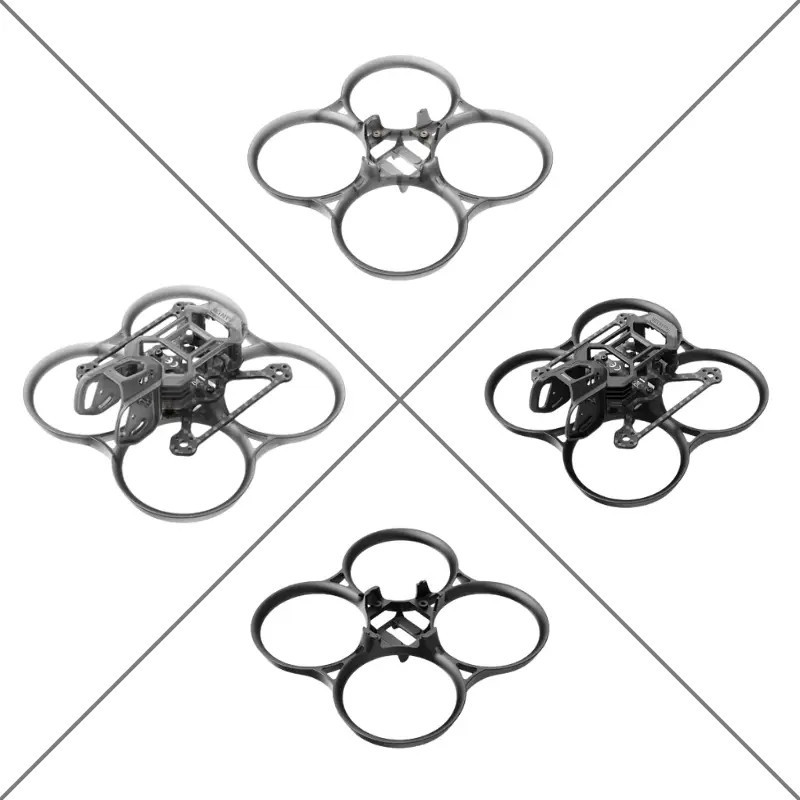

• • Colors: Black / Transparent Grey

Available Versions

• O4 Air Unit Pro Frame — Black
• O4 Air Unit Pro Frame — Transparent Grey

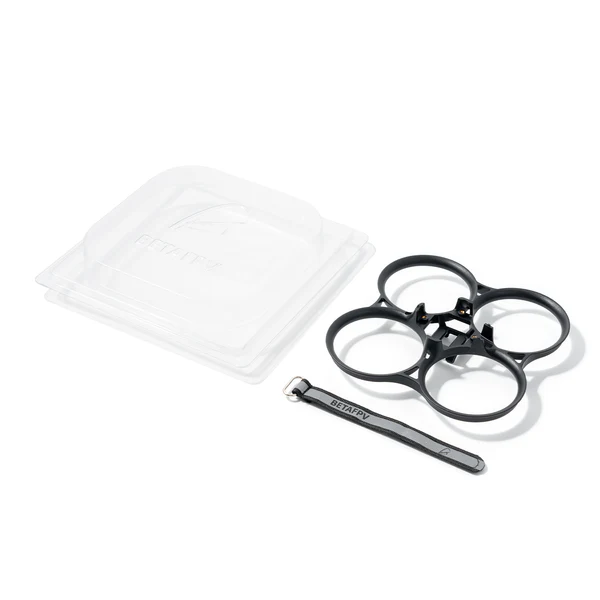

• Whoop Duct — Black
• Whoop Duct — Transparent Grey

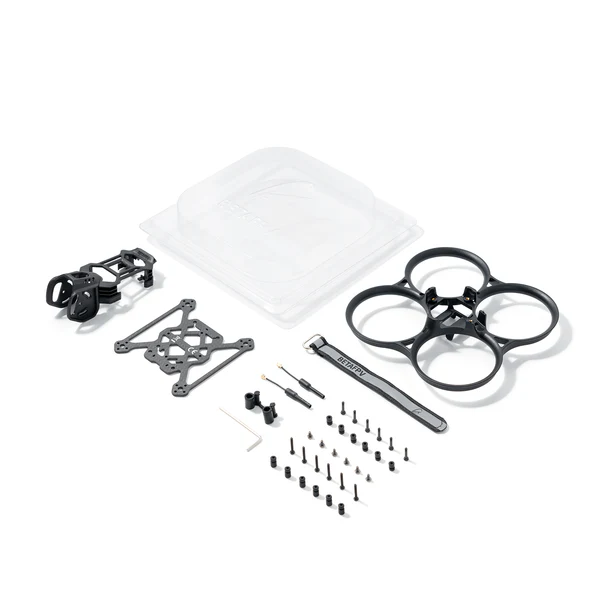

Package Contents
