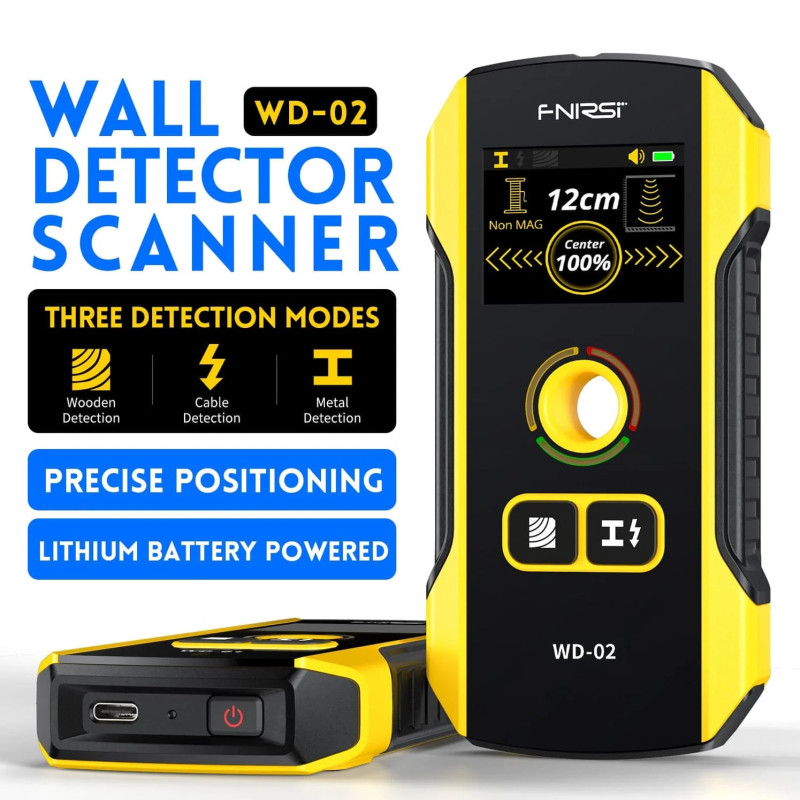

  • FNIRSI WD-02 package contents: device, USB-C cable, carrying pouch, and manual
  • FNIRSI WD-02 – wall detector with live AC wire detection capability
  • FNIRSI WD-02 Wall Scanner – Metal, Wire & Wood Detector USB-C
  • FNIRSI WD-02 Wall Scanner – Metal, Wire & Wood Detector USB-C
  • FNIRSI WD-02 Wall Scanner – Metal, Wire & Wood Detector USB-C
  • FNIRSI WD-02 Wall Scanner – Metal, Wire & Wood Detector USB-C
  • FNIRSI WD-02 Wall Scanner – Metal, Wire & Wood Detector USB-C
  • FNIRSI WD-02 Wall Scanner – Metal, Wire & Wood Detector USB-C

FNIRSI WD-02 – Wall Scanner with Color TFT Display

139.77
Tax included
Avifly - official distributor of FNIRSI

Brand
Fnirsi
Quantity:
15
Shipment:

Up to 24 hours

Supply:
for freeCheck delivery costs
Gift:
Soon!

FNIRSI WD-02 – Wall Scanner with Color TFT Display

Accurate Detection of Metal, Live Wires and Wood – USB-C Rechargeable

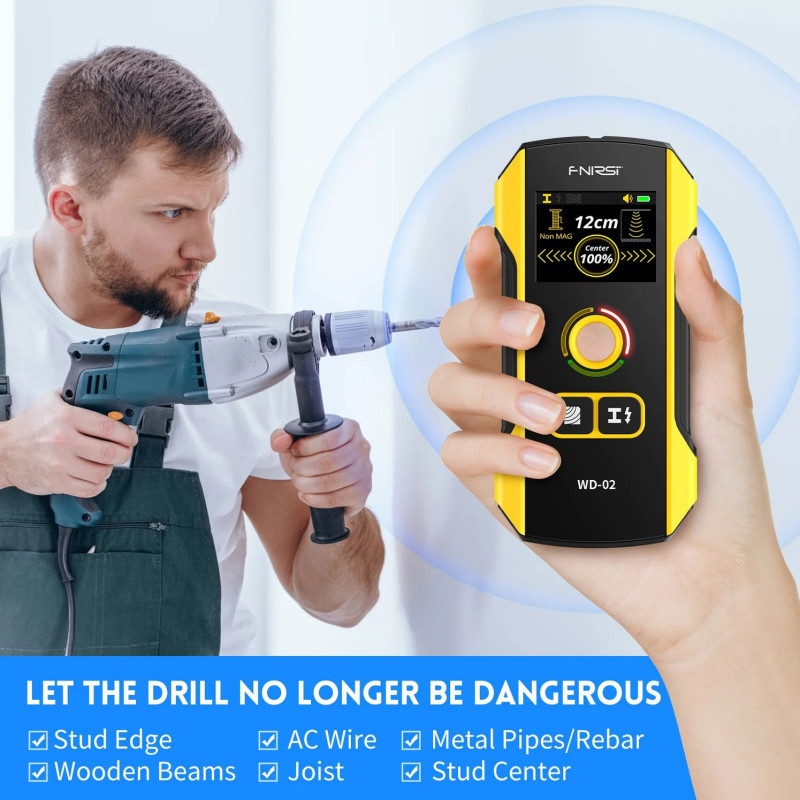

FNIRSI WD-02 is an advanced wall detector designed for reliable and quick detection of rebar, metal pipes, live wires, and wood behind walls, ceilings, and floors. Featuring a bright high-resolution color TFT display and HPC processing module for enhanced stability, it supports three detection modes and offers adjustable sensitivity. Ideal for renovation, electrical installation, and safety checks before drilling.

Key Features

  • ● 3 detection modes: metal, live wire, and wood
  • ● Bright high-resolution color TFT screen with improved UI
  • ● HPC module improves interference immunity and speed
  • ● 3-level adjustable sensitivity for precise detection

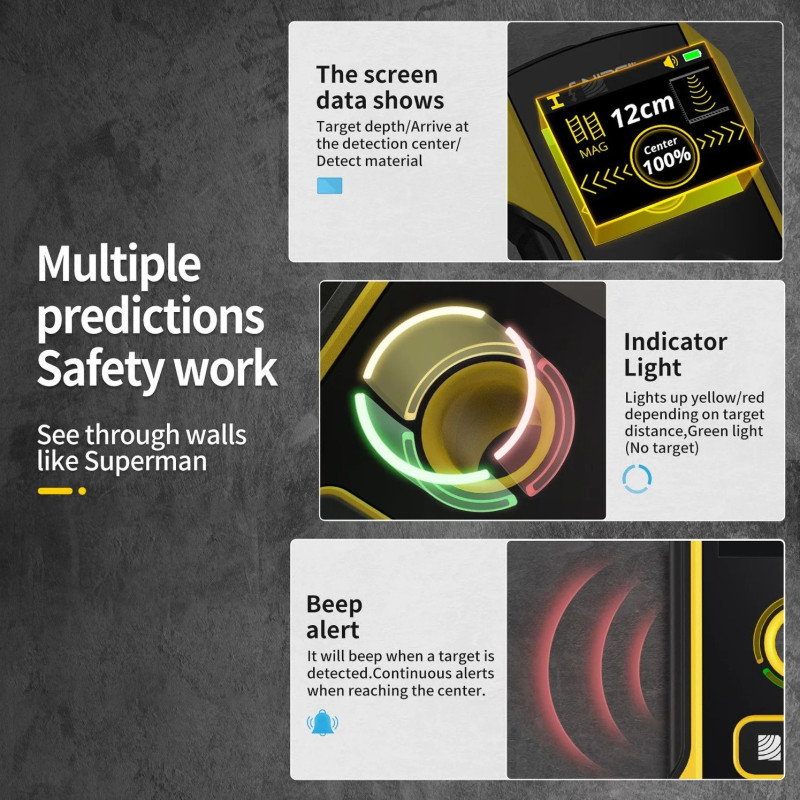

  • ● Audible and visual proximity alerts
  • ● Center marking hole for accurate drilling
  • ● Compact and ergonomic design for ease of use

Technical Specifications

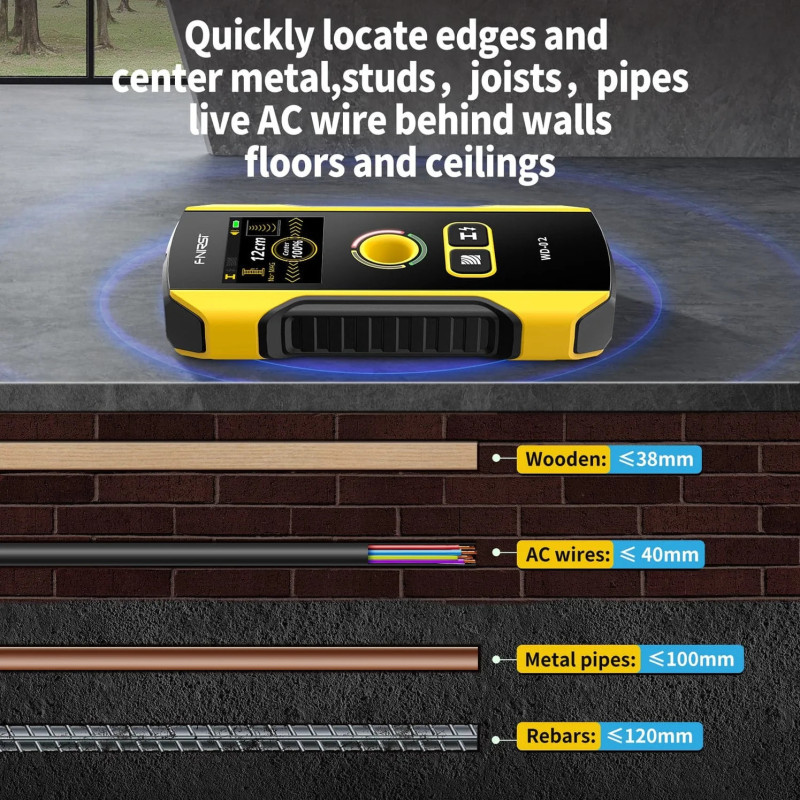

  • ● Maximum Detection Depth:
    • – Rebar: ≤120 mm
    • – Metal pipes: ≤100 mm
    • – Live wires: ≤50 mm
    • – Wood: ≤38 mm

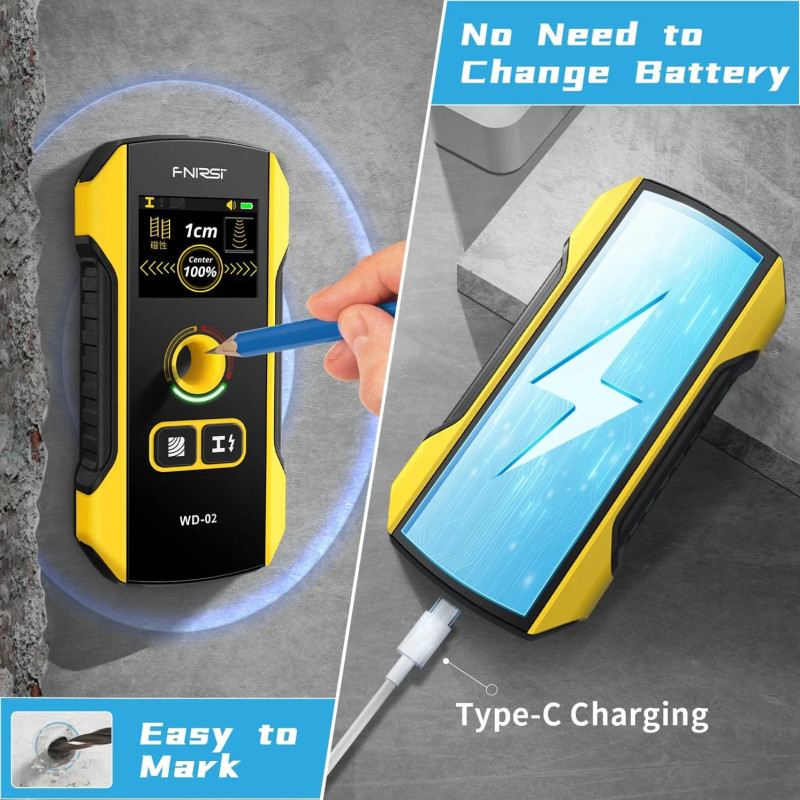

  • ● Power Supply: 300 mAh lithium battery, USB-C charging
  • ● Auto power-off after 5 minutes of inactivity
  • ● Dimensions: 138 × 68 × 22 mm
  • ● Weight: 122 g

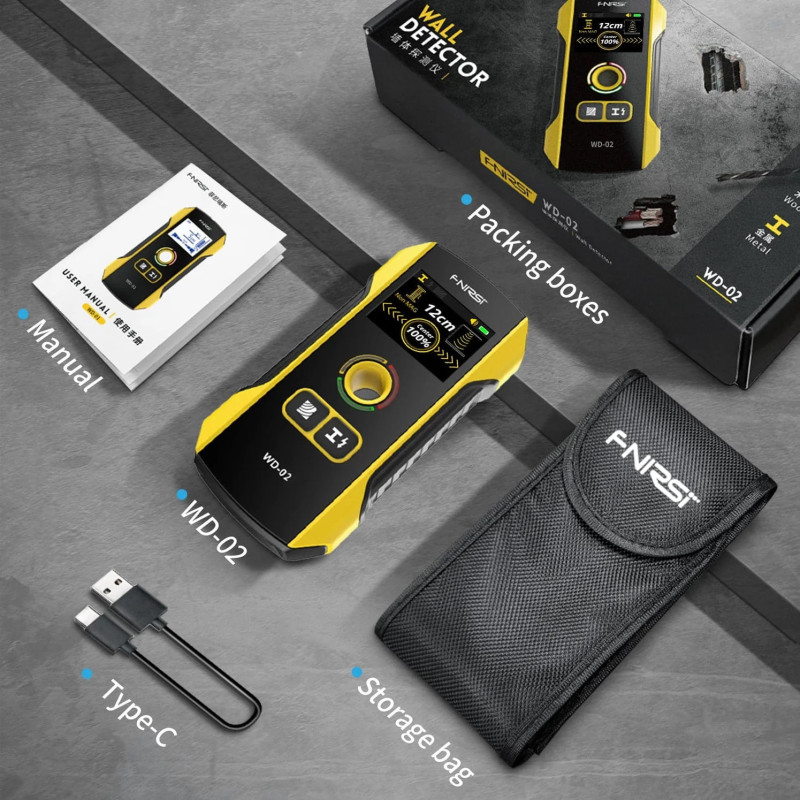

Package Contents

  • ● 1× FNIRSI WD-02 Wall Detector
  • ● 1× USB-C Charging Cable
  • ● 1× Carrying Pouch
  • ● 1× User Manual
TFT screen of FNIRSI WD-02 displaying depth and material type information
TFT screen of FNIRSI WD-02 displaying depth and material type information

FAQ

Frequently Asked Questions about FNIRSI WD-02 (Wall Detector for Metal, Wood, and Live Wires)

Ferrous and non-ferrous metals
Wood
Live AC wires

Ferrous metals: up to 120 mm
Non-ferrous metals (e.g., copper): up to 100 mm
AC wires: up to 50 mm
Single-strand copper wire (≥4 mm²): up to 40 mm
Wood: precision mode – 20 mm; deep mode – 38 mm

High-resolution TFT display
3 detection modes: metal, wood, AC wires
HPC module for enhanced anti-interference and faster processing
Visual and audible indicators for target distance
Central hole for precise drilling position marking
Automatic shutdown after 5 minutes of inactivity

Power supply: 3.7 V, 300 mAh lithium-polymer battery
Charging: USB-C
Dimensions: 138 × 68 × 22 mm
Weight: 122 g
Operating temperature: 0°C to 50°C
Operating humidity: metal mode – up to 85% RH; wood – up to 60% RH; AC – up to 35% RH

​

FNIRSI WD-02 detector
USB-C cable
Storage pouch
User manual
