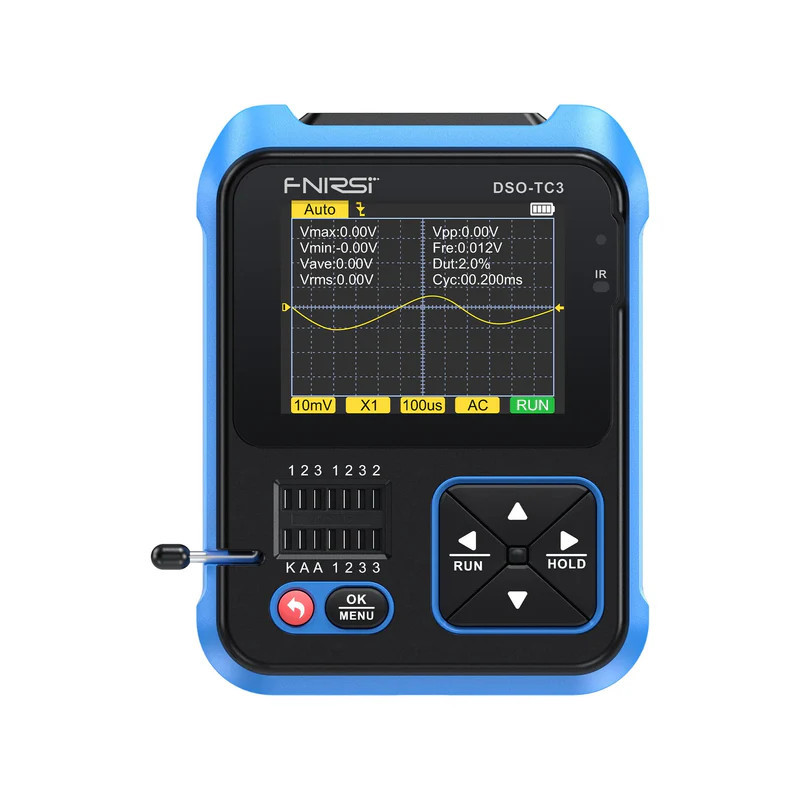

FNIRSI DSO-TC3 3-in-1 Digital Oscilloscope Signal Generator Tester
search
  • FNIRSI DSO-TC3 3-in-1 digital oscilloscope and signal generator

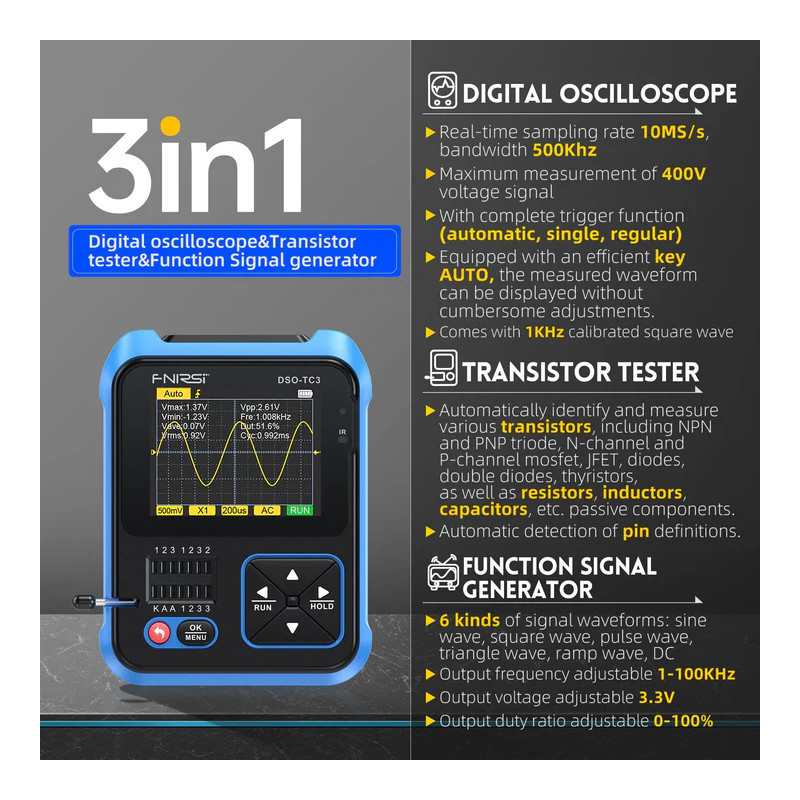

  • FNIRSI DSO-TC3 with P6100 probe – High Profile version
  • Handheld digital oscilloscope for electronics testing
  • FNIRSI DSO-TC3 transistor tester and component analyzer
  • FNIRSI DSO-TC3 3-in-1 Digital Oscilloscope Signal Generator Tester
  • FNIRSI DSO-TC3 3-in-1 Digital Oscilloscope Signal Generator Tester
  • FNIRSI DSO-TC3 3-in-1 Digital Oscilloscope Signal Generator Tester
  • FNIRSI DSO-TC3 3-in-1 Digital Oscilloscope Signal Generator Tester
  • FNIRSI DSO-TC3 3-in-1 Digital Oscilloscope Signal Generator Tester
  • FNIRSI DSO-TC3 3-in-1 Digital Oscilloscope Signal Generator Tester
  • FNIRSI DSO-TC3 3-in-1 Digital Oscilloscope Signal Generator Tester

FNIRSI DSO-TC3 3-in-1 500 kHz 10 MS/s Digital Oscilloscope Signal Generator Transistor Tester (Standard / High Profile)

225.00
Tax included
Fnirsi DSO‑TC3 handheld oscilloscope

Brand
Fnirsi
Quantity:
0
Shipment:
No information
Availability:
Out-of-Stock
Supply:
for freeCheck delivery costs
Gift:
Soon!

FNIRSI DSO-TC3 3-in-1 Digital Oscilloscope – Transistor Tester & Signal Generator

Compact handheld oscilloscope with component tester and DDS signal generator

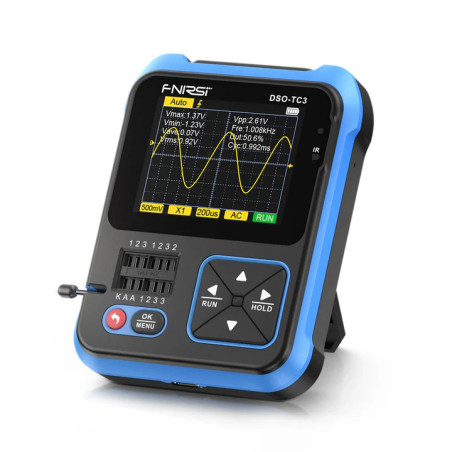

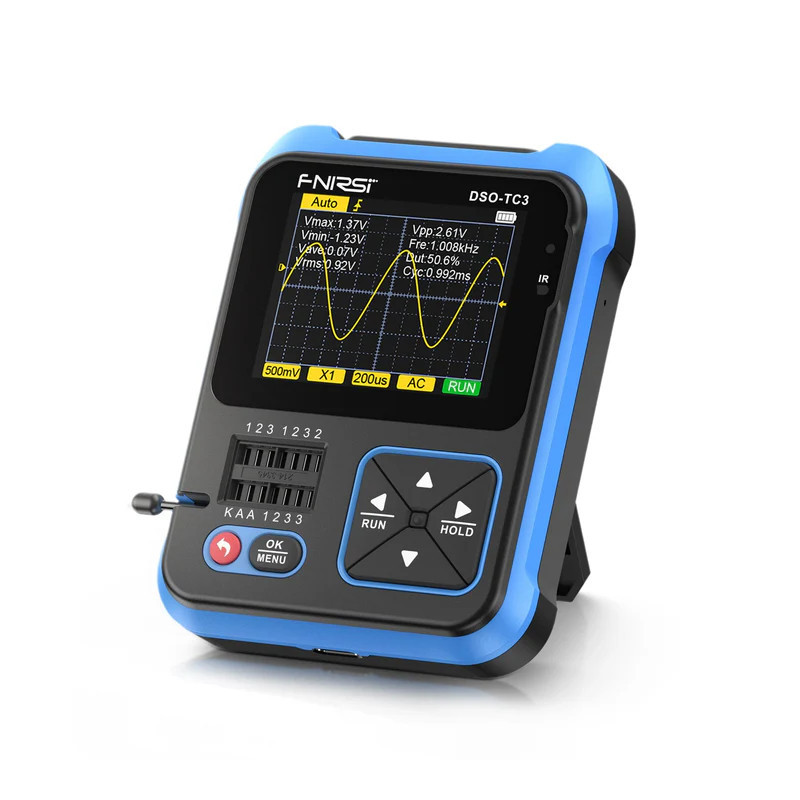

The FNIRSI DSO-TC3 is a multifunctional measuring device that combines a digital oscilloscope (10 MS/s, 500 kHz), transistor and electronic component tester, and a DDS function signal generator. It is designed for field engineers, repair technicians, and electronics enthusiasts who need portable precision and reliability. The built-in 1500 mAh lithium-ion battery provides up to 4 hours of operation on a single charge.

Upgraded from the previous DSO-TC2, the DSO-TC3 delivers improved capacitance ESR detection, wider voltage range, higher sampling accuracy and better signal stability. The bright 2.4-inch TFT color display ensures clear readings even in direct sunlight, while the foldable bracket allows comfortable hands-free operation on any workbench.

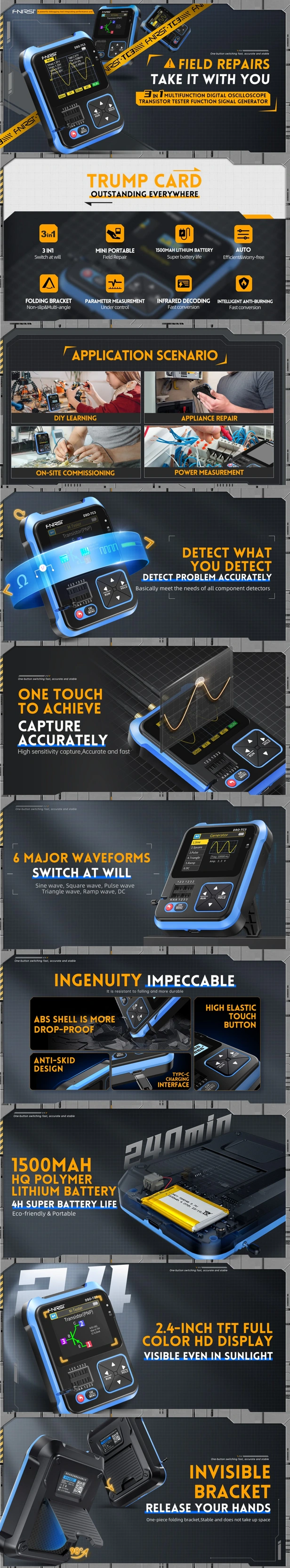

Key Features

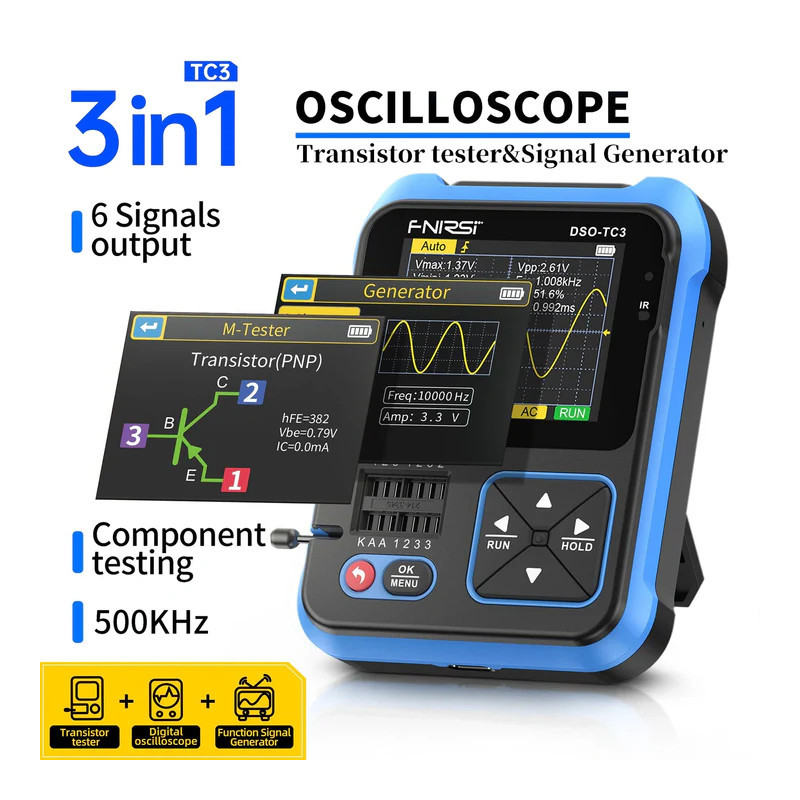

  • 3-in-1 design – oscilloscope, transistor tester, and DDS signal generator
  • Sampling rate 10 MS/s and 500 kHz analog bandwidth
  • Measures voltages up to ±400 V (with ×10 probe)

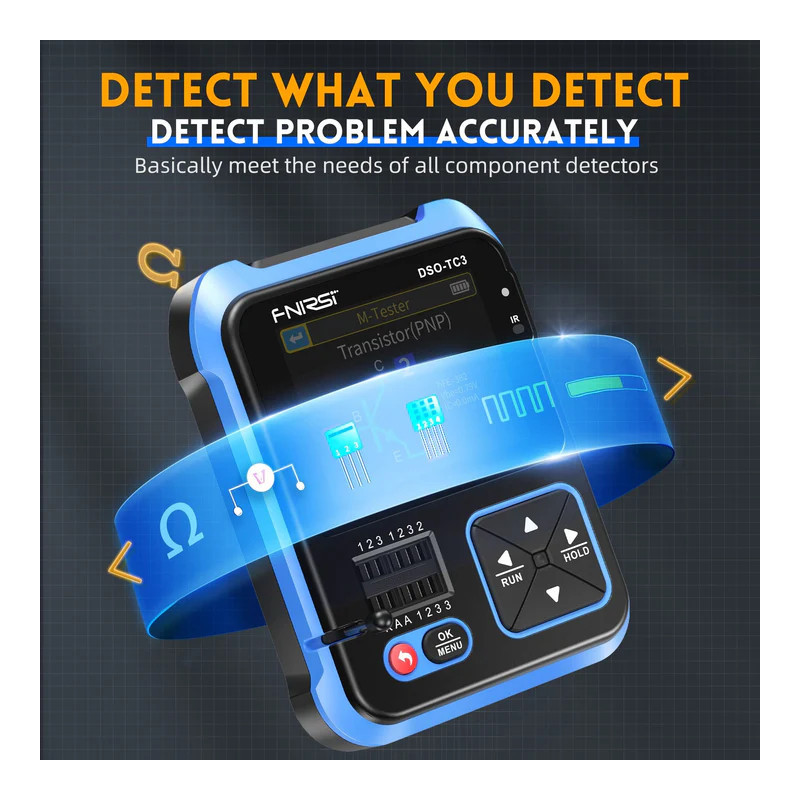

  • Tests NPN/PNP, MOSFET, IGBT, diodes, resistors, capacitors, inductors, SCRs and TRIACs

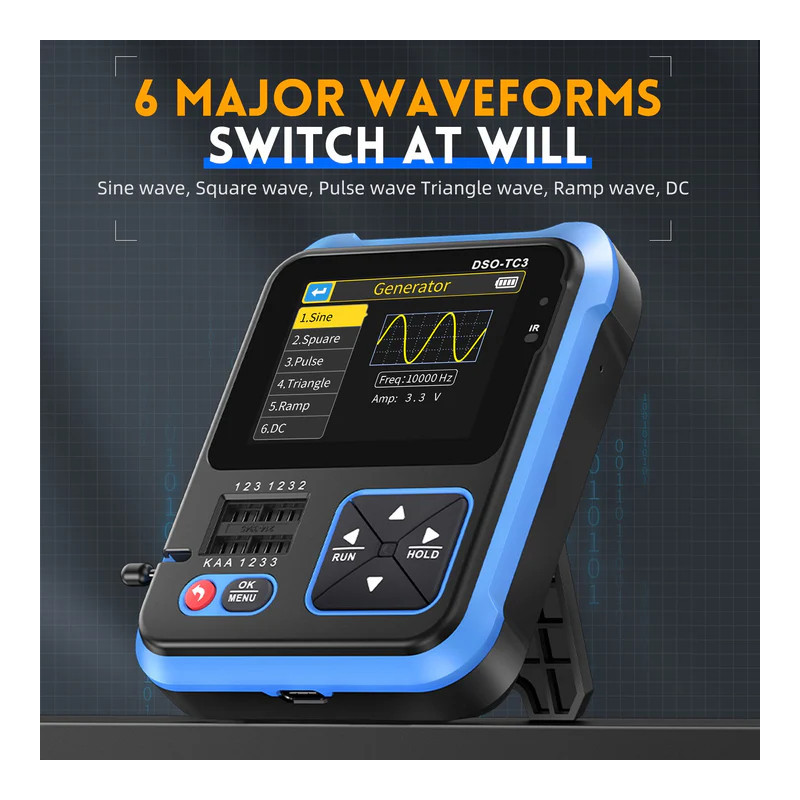

  • DDS function generator – sine, square, pulse, triangle, ramp and DC output
  • Automatic pin recognition, ESR measurement, and continuity testing
  • Temperature and humidity sensors supported (DS18B20 / DHT11)
  • Infrared decoding (NEC protocol) and PWM signal analysis
  • 2.4-inch TFT full-color display, visible even in sunlight
  • Built-in foldable stand for stable and ergonomic desktop use

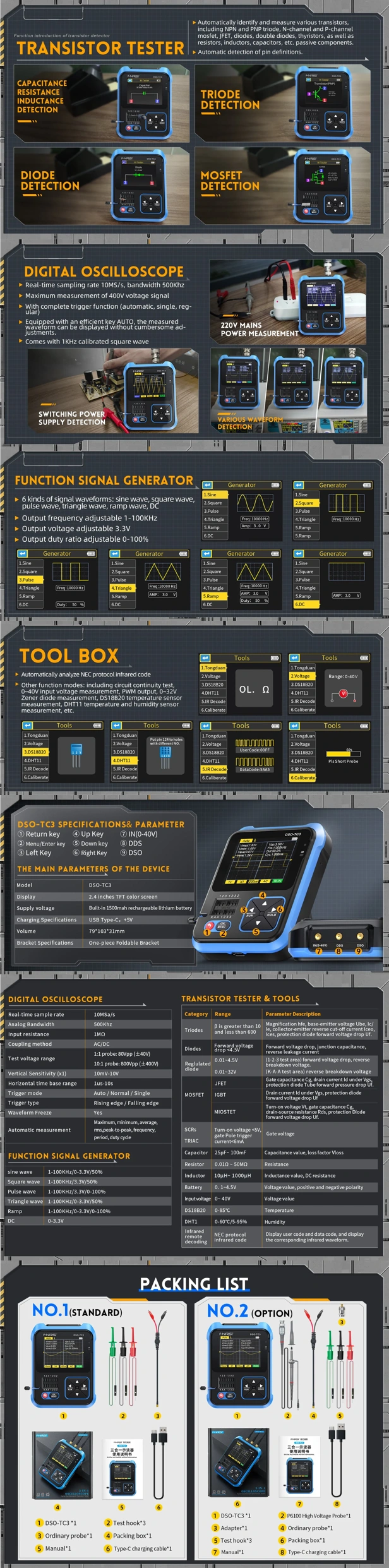

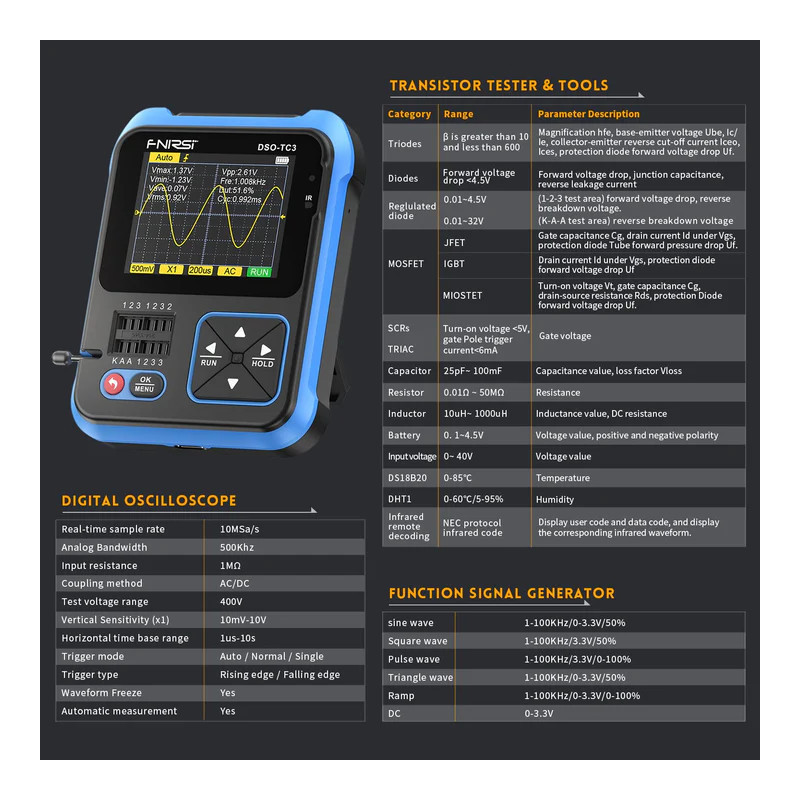

Technical Specifications

  • Brand: FNIRSI
  • Model: DSO-TC3
  • Display: 2.4-inch TFT color screen, LED backlight
  • Sampling Rate: 10 MS/s | Bandwidth: 500 kHz | Input Resistance: 1 MΩ
  • Coupling: AC/DC | Trigger Modes: Auto / Normal / Single | Edge: Rise / Fall
  • Max Voltage: 40 V (×1) / 400 V (×10 probe)
  • Signal Generator: 1 Hz–100 kHz | Amplitude 0–3.3 V | 6 waveforms + DC
  • Component Test Range: R 0.01 Ω–50 MΩ | C 25 pF–100 mF | L 10 µH–1000 µH
  • Battery: 1500 mAh Li-ion | Charging: USB Type-C 5 V
  • Dimensions: 79 × 103 × 31 mm | Weight: ≈ 180 g

Version Comparison

                      Feature                                              Standard Version                                        High Profile Version
Included ProbesBasic test leads and clipsFNIRSI P6100 high-voltage probe + adapter
Measurement AccuracyHighLaboratory grade, better noise shielding
Use CaseDIY, educational testingService work, laboratory, HV testing
Package ContentsDSO-TC3 + USB cable + test leadsDSO-TC3 + P6100 + adapter + complete kit

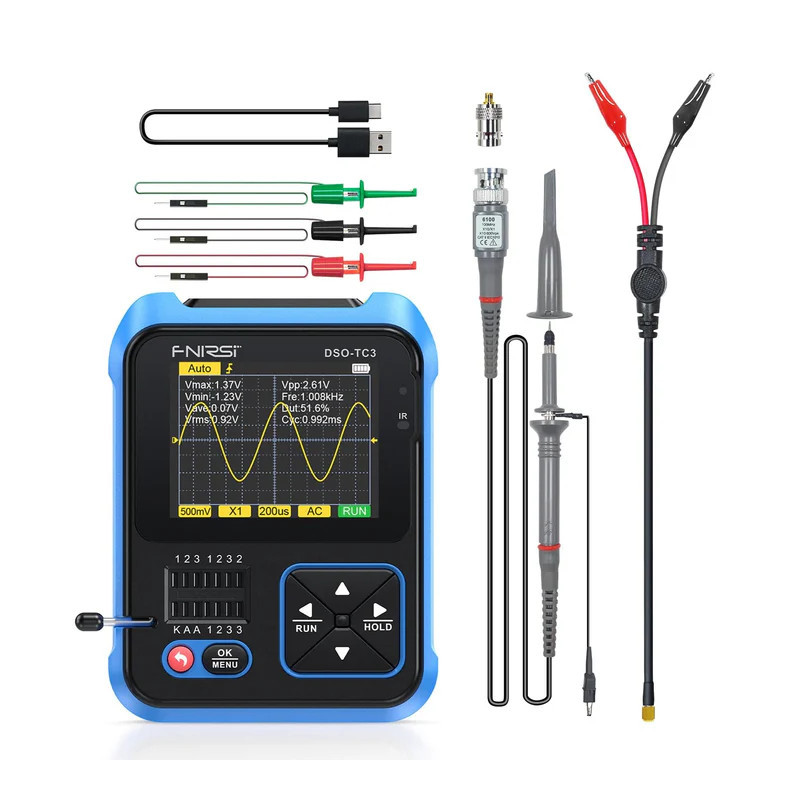

Package Includes

  • 1 × FNIRSI DSO-TC3 digital oscilloscope
  • 1 × Test hook probe set
  • 1 × USB-C charging cable
  • 1 × User manual (EN)
  • High Profile Version: includes 1 × FNIRSI P6100 probe + adapter

Why Choose FNIRSI DSO-TC3?

The FNIRSI DSO-TC3 stands out as a truly portable lab-grade oscilloscope and component tester in one device. Its intelligent auto-detection and wide measurement range make it a powerful tool for electronics diagnostics and education. With an integrated signal generator, it can simulate test signals instantly without extra equipment – perfect for field repairs and bench work.

The High Profile edition adds the professional FNIRSI P6100 probe for accurate high-voltage measurements, delivering reliable results in any environment. Whether you are an engineer, technician or maker – the DSO-TC3 is an indispensable tool in your kit.

Recommended Accessories (available at Avifly)

  • FNIRSI P6100 and P4100 probes – high-voltage and standard versions
  • BNC to alligator leads for signal output and external measurement
  • FNIRSI USB-C 5 V power adapter (low noise, stable supply)
  • Anti-static mat for safe electronics work
  • Protective case for portable measurement devices
