Axisflying C206 (2006) Motor – 1960/2500/2750 KV for 3.5″ Cinewhoop FPV

Axisflying C206 (2006) – Brushless Motor for 3.5″ Cinewhoop Drones

Available in 1960/2500/2750 KV – powerful and smooth performance in a compact size

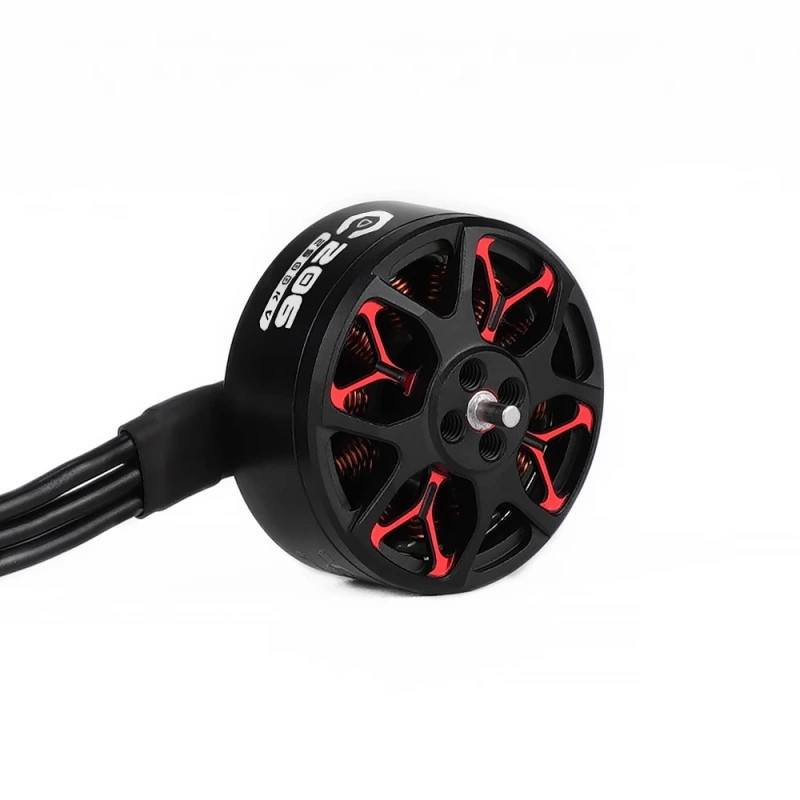

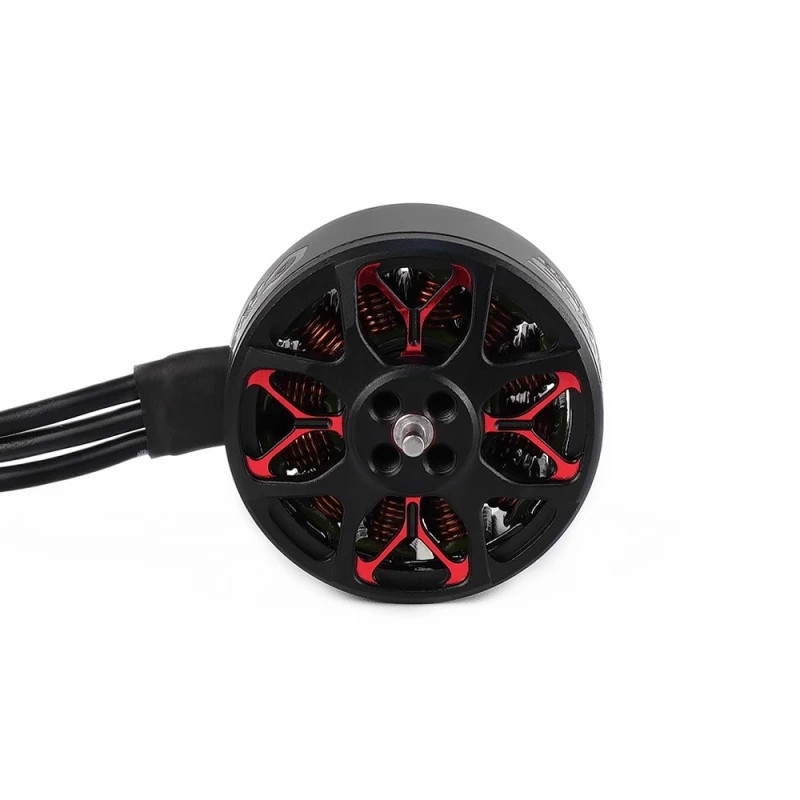

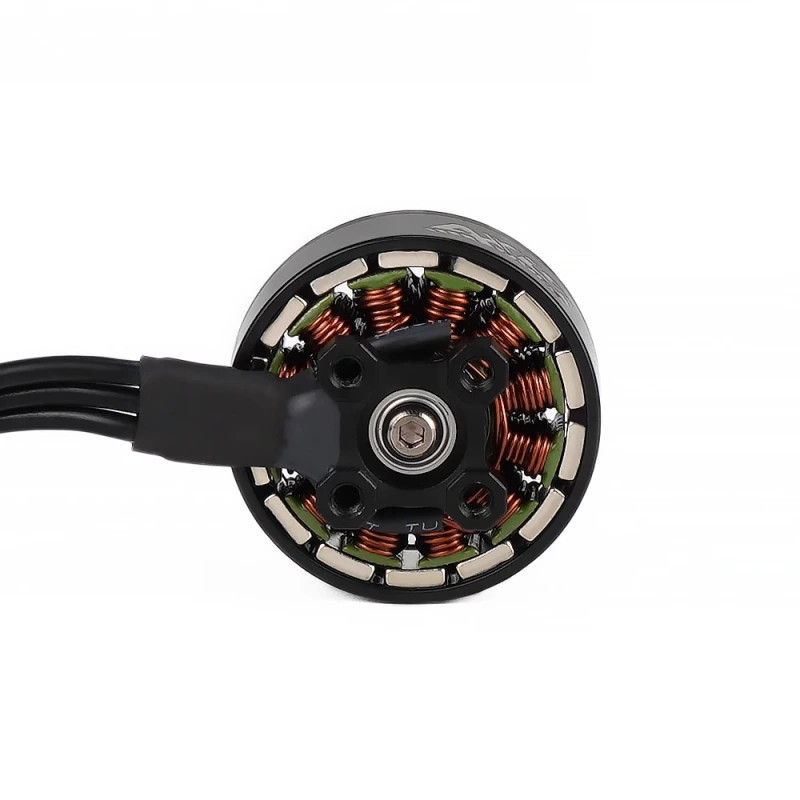

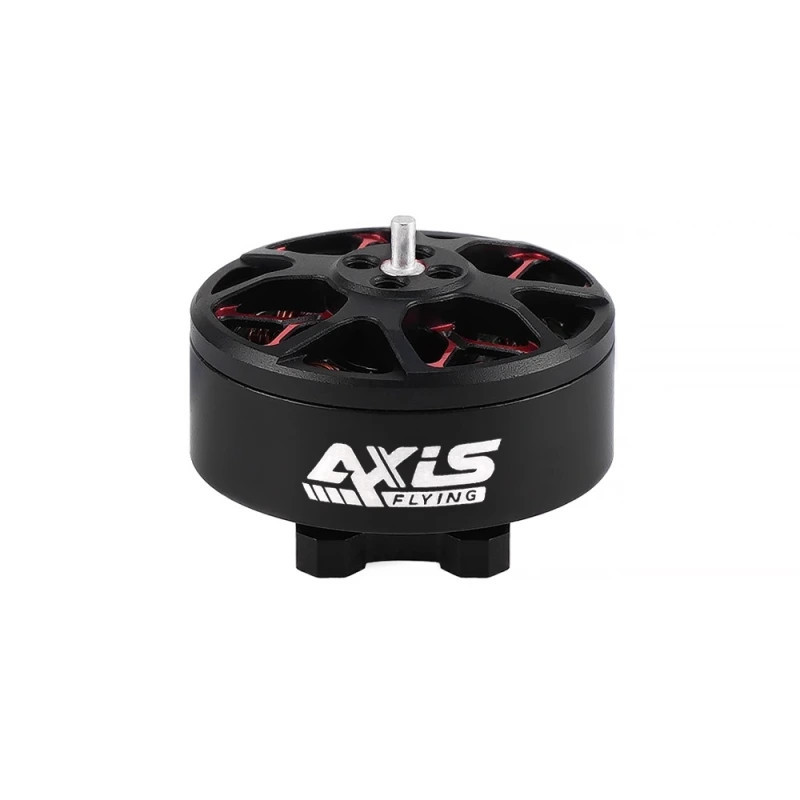

Axisflying C206 is a lightweight motor from the C-series, designed specifically for 3.5″ cinewhoops and cinematic drones. It features a 20×6 mm stator, strong N52H magnets, IP53 bearings, and a 150 mm AWG 20 cable. Delivers over 0.9 kg thrust at ~21 A with stability and low noise.

• ● Three KV options – 1960, 2500, and 2750 (for 6S)
• ● 20×6 mm stator, 12N14P configuration, N52H magnets
• ● IP53-rated bearings – protection from dust and splashes
• ● AWG 20 cable, 150 mm length, weight: 22 g
• ● Strong thrust – over 0.9 kg at ~21 A

• ● Model: C206 (2006 stator)
• ● KV options: 1960 / 2500 / 2750 (6S)
• ● Voltage: up to 6S LiPo
• ● Dimensions: Ø24.6×20.6 mm; mount: 4×M2, Ø12 mm
• ● Cable: AWG 20, 150 mm; weight: 22 g
• ● Max current: ~21 A, thrust: >0.9 kg

• 1× Axisflying C206 motor (selected KV)
• 4× M2×5 screws + 1× M3×4 + 2× M2×8 prop screws
