Axisflying Argus Plug&Play Stack – 55A / 65A + F7 Flight Controller

Two options: 55A or 65A 4-in-1 ESC + F7 FC for 6S FPV drone builds

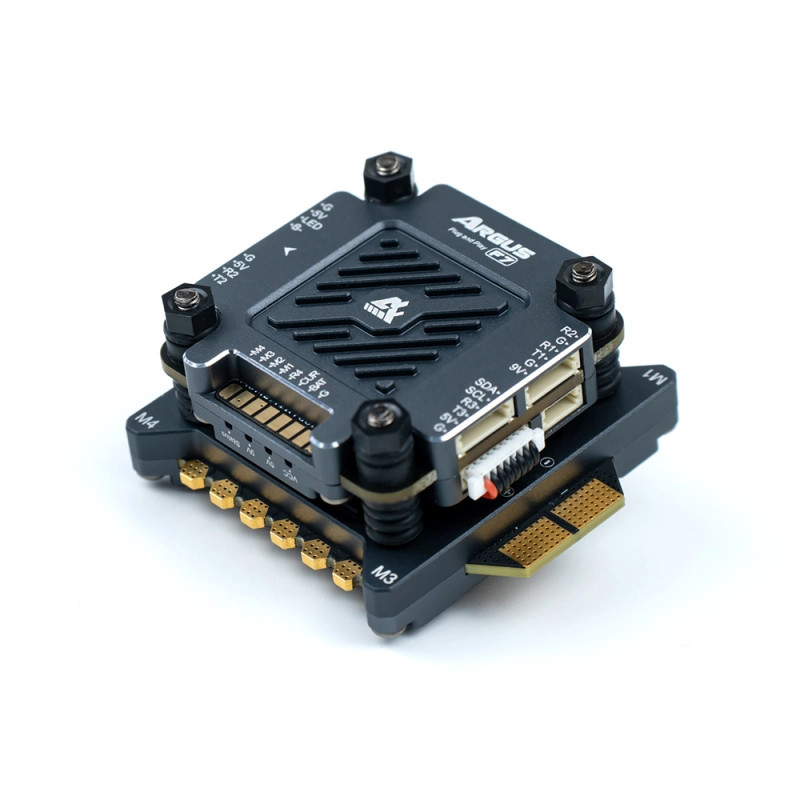

The Axisflying Argus Plug&Play Stack is a high-performance, ready-to-connect stack for modern FPV drones. It comes with either a 55A or 65A 4-in-1 ESC (65A version currently available) and a 32-bit F7 flight controller with MPU6000 and barometer. Designed for 6S freestyle and cinematic builds, the stack ensures stable performance, easy wiring, and advanced tuning capabilities. The Plug&Play format simplifies integration with your camera, VTX, and receiver.

Product Features

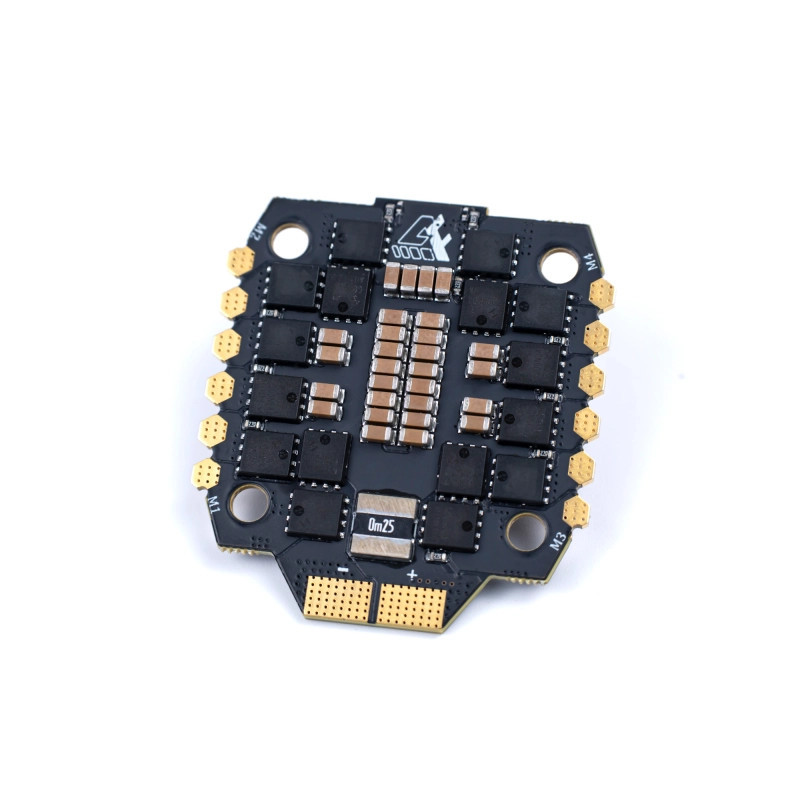

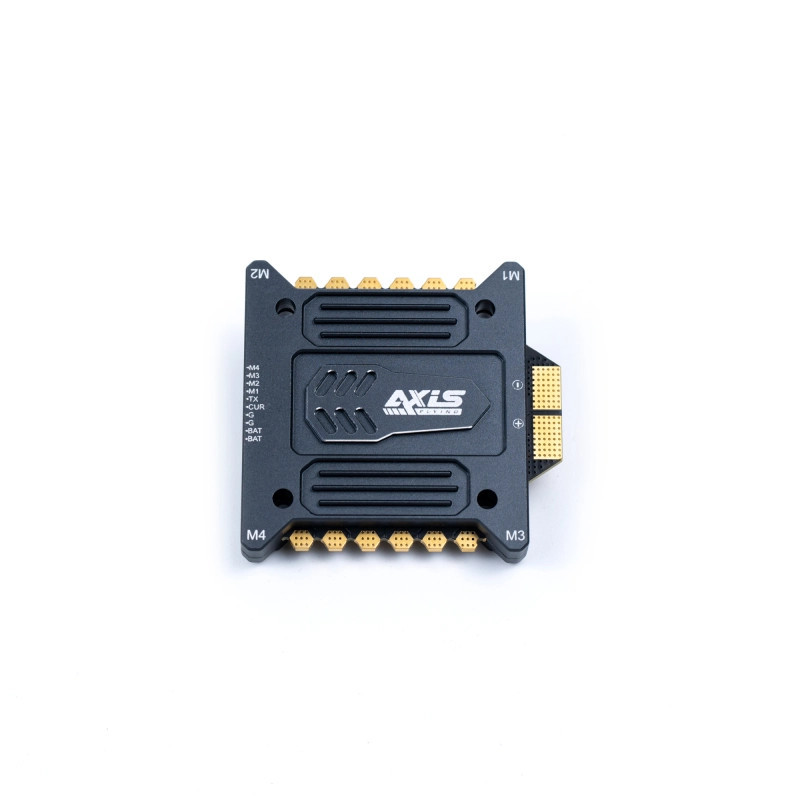

  • ● 4-in-1 ESC available in 55A or 65A variants (BLHeli_32, DSHOT1200)

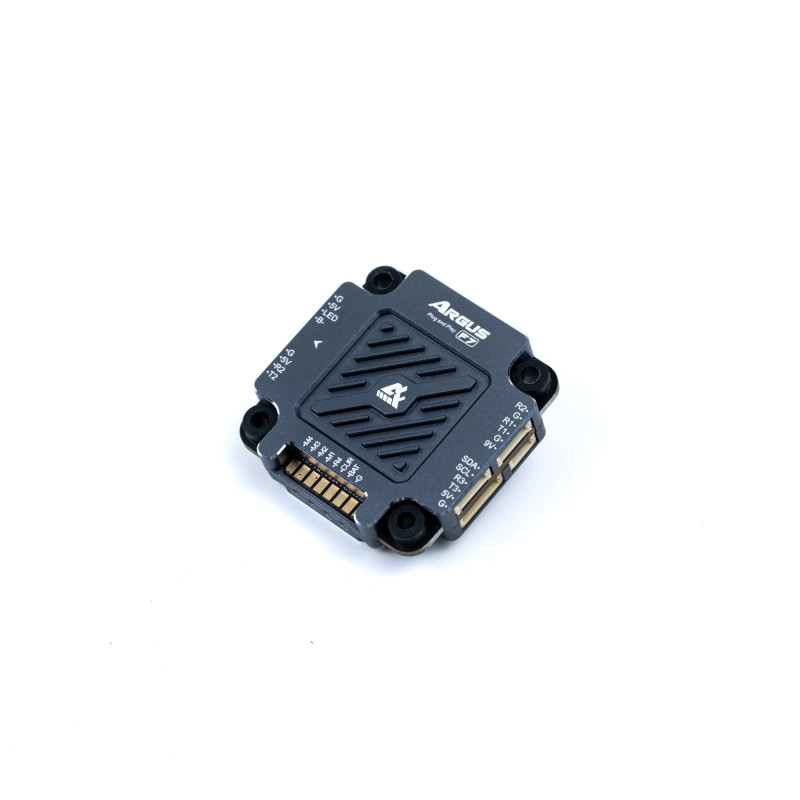

  • ● 32-bit F7 flight controller (STM32F722) with MPU6000 and barometer
  • ● Plug&Play design for simplified camera, VTX, and RX setup
  • ● ESC telemetry and full Betaflight OSD tuning support
  • ● Suitable for powerful 5" and 6" FPV builds running 6S LiPo
  • ● Multiple protections: overcurrent, overvoltage, overheating

Technical Specifications

  • ● ESC: 4-in-1, continuous 55A or 65A, BLHeli_32, DSHOT1200
  • ● FC: STM32F722 with MPU6000 gyro and barometer
  • ● Input voltage: 2–6S LiPo (up to 26V)
  • ● Mounting pattern: 30×30 mm (M3); Board size: approx. 36×36 mm
  • ● Weight: approx. 20 g (without wires)
  • ● Protections: OCP, OVP, OTP, OPP; BEC 5V / 3A

Package Contents

  • 1× Axisflying 4-in-1 ESC 65A board (store version)
  • 1× F7 Flight Controller with barometer and gyro
  • 1× Cable harness for camera, VTX, and receiver
  • 1× Set of mounting hardware and spacers
