Advanced digital multimeter 6000 counts – Aneng 683
  • Advanced digital multimeter 6000 counts – Aneng 683
  • Aneng 683 Digital Multimeter – Touch VA Screen, 6000 Counts
  • Aneng 683 Digital Multimeter – Touch VA Screen, 6000 Counts

Aneng 683 Digital Multimeter – Touch VA Screen, 6000 Counts, 0–1000V, 0–10A

ANENG

SKU: Aneng-683
137.77
Out-of-Stock

ANENG Banner – Avifly Official Distributor of ANENG: digital multimeters, precision measurement tools and testing equipment for hobby electronics

  • 30-day returns No questions asked
  • 12 mo warranty Manufacturer + Avifly
  • Shipping availability Same day before 12:00

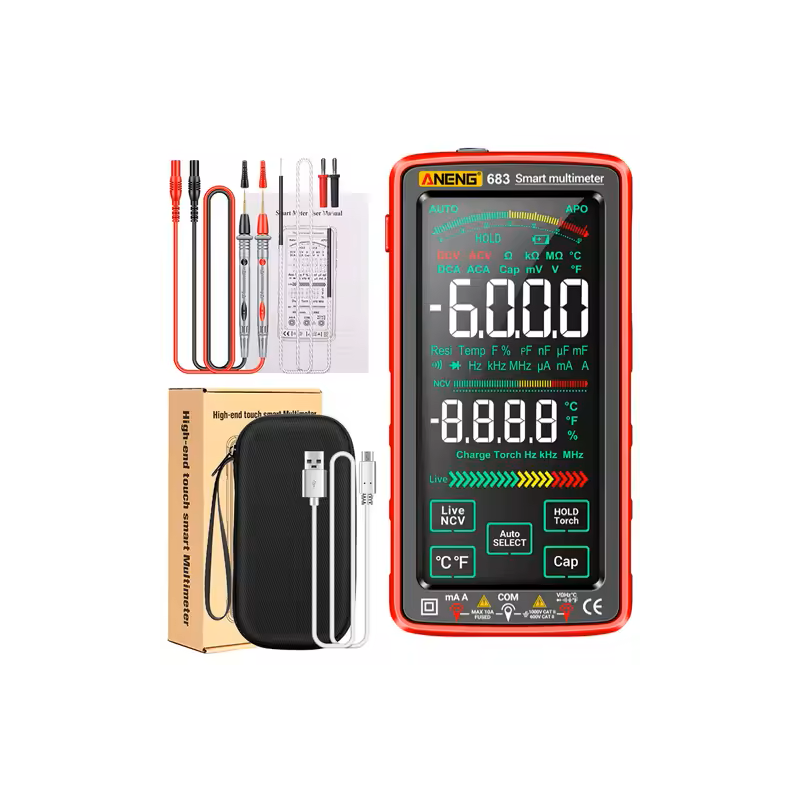

Aneng 683 Digital Multimeter – Touch VA Screen

Measures up to 1000V, 10A and 1000°C with 6000 counts

The Aneng 683 is an advanced digital multimeter with a touch VA display for convenient and intuitive operation. It supports a wide range of measurements: DC voltage up to 1000V, AC voltage up to 750V, DC/AC current up to 10A, resistance up to 60 MΩ, capacitance up to 100 mF, frequency up to 999.9 kHz and temperature from –40°C to 1000°C.

Features like NCV (non-contact voltage detection), auto-range, diode test, continuity with sound indicator and auto AC/DC recognition make it safe and practical. A built-in LED flashlight and low battery indicator add to its usability in any environment.

Product features

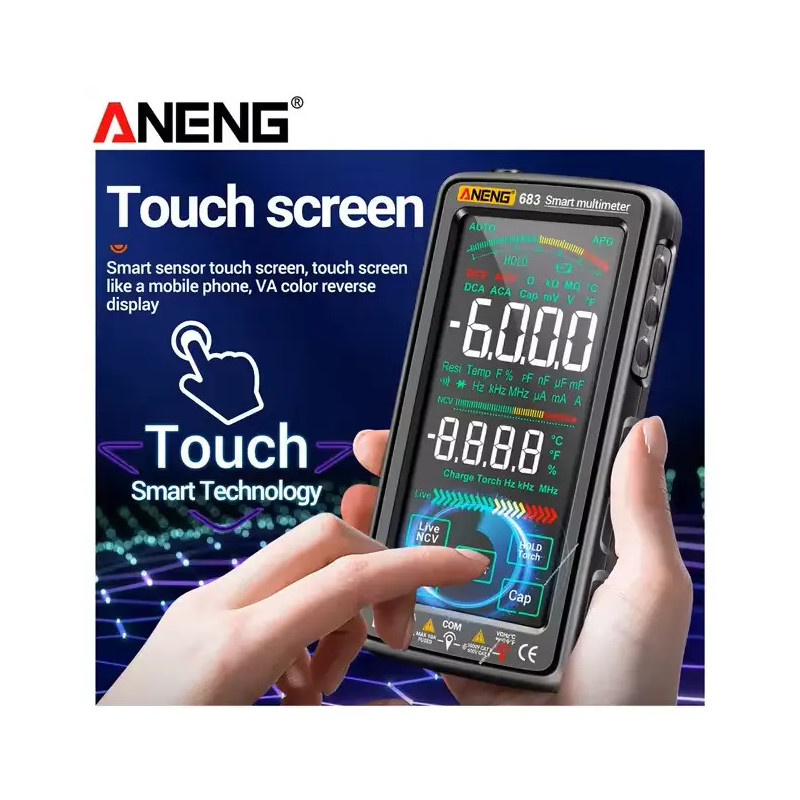

  • ● Touch VA screen – intuitive control
  • ● DC voltage up to 1000V, AC voltage up to 750V
  • ● DC/AC current measurement up to 10A
  • ● Resistance up to 60 MΩ, capacitance up to 100 mF
  • ● Frequency up to 999.9 kHz, temperature up to 1000°C
  • ● Non-contact voltage detection (NCV)
  • ● Diode and continuity test with sound indicator
  • ● Auto shut-off, low battery indicator and LED flashlight
  • ● Power: 3.7V 2800mAh Li-Po battery with USB charging

Technical specifications

  • ● Brand: Aneng
  • ● Model: 683
  • ● Max counts: 6000
  • ● DC Voltage: 0–1000V (±0.8%)
  • ● AC Voltage: 0–750V (±1.0%)
  • ● DC/AC Current: 0–10A (±2.5%)
  • ● Resistance: 0–60 MΩ
  • ● Capacitance: 0 nF – 100 mF
  • ● Frequency: 0–999.9 kHz
  • ● Temperature: –40°C to 1000°C
  • ● Power: 3.7V 2800 mAh Li-Po battery
  • ● Charging: USB
  • ● Dimensions: 152 × 76 × 25 mm
  • ● Weight: approx. 217 g

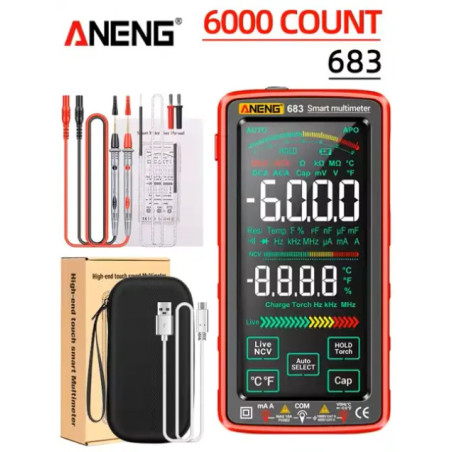

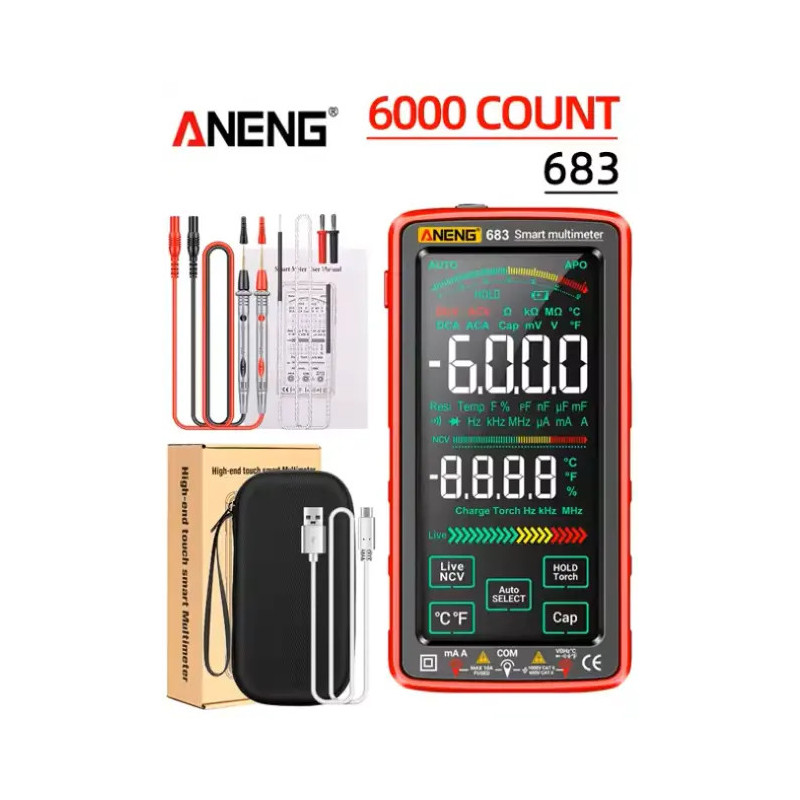

Package contents

  • ● 1 × Aneng 683 multimeter
  • ● 1 × test leads set
  • ● 1 × thermocouple
  • ● 1 × USB cable
  • ● 1 × protective case
  • ● 1 × user manual
