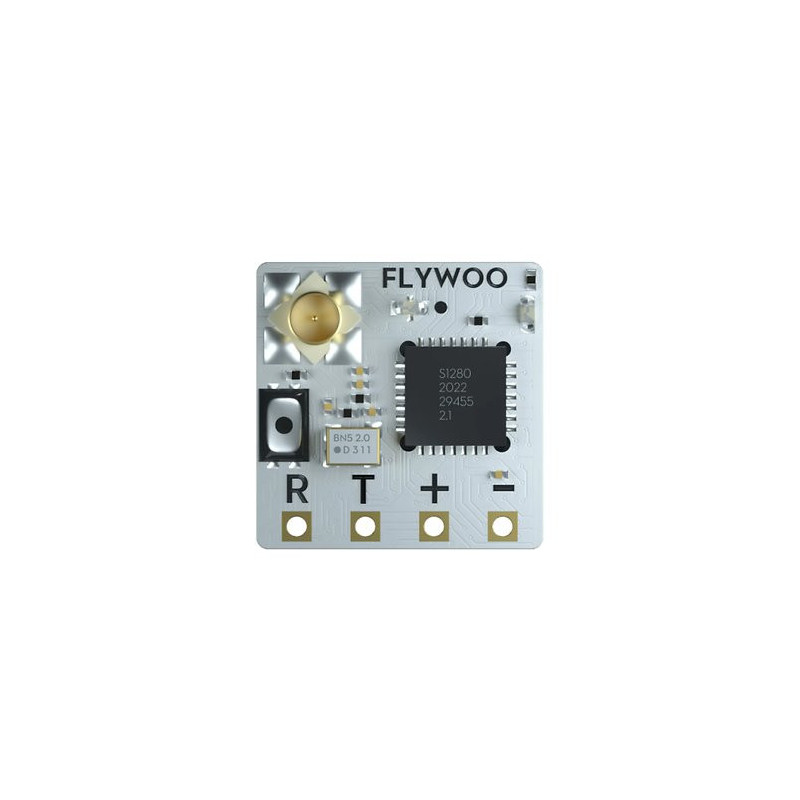

Flywoo TCXO 2.4G ELRS EL24P Receiver

Ultra-lightweight 2.4GHz ExpressLRS receiver with TCXO and IPEX antenna

Flywoo EL24P TCXO is a compact ExpressLRS 2.4GHz receiver featuring a temperature-compensated crystal oscillator (TCXO) for enhanced clock accuracy. Equipped with an IPEX connector for external antennas, it ensures reliable RC links with low latency and high refresh rates. Ideal for FPV drones requiring minimal weight and maximum performance.

Key Features:

  • ✅ TCXO for improved MCU clock stability
  • ✅ ESP8285 MCU with Wi-Fi firmware updates
  • ✅ SX1280/SX1281 RF module for robust 2.4GHz link
  • ✅ IPEX connector for external dipole antenna
  • ✅ Ultra-low latency and high update rates (25Hz–500Hz)
  • ✅ CRSF protocol support (Betaflight compatible)
  • ✅ Ultra-lightweight: 0.44g (without antenna)

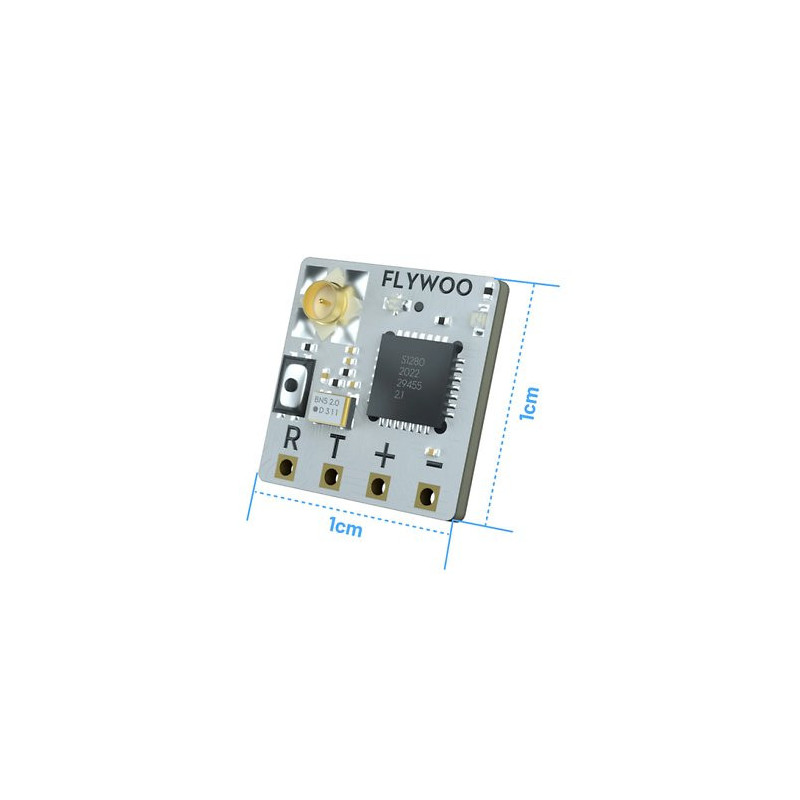

  • ✅ Compact size: 10×10×6 mm

? Technical Specifications:

  • Type: ISM 2.4GHz
  • MCU: ESP8285
  • RF Module: SX1280/SX1281 IMLTRT
  • Frequency Range: 2400–2500 MHz
  • Receive Refresh Rate: 25Hz–500Hz
  • Working Voltage: 5V
  • Weight: 0.44g (without antenna)
  • Dimensions: 10×10×6 mm
  • Communication Protocol: CRSF (Betaflight)
  • Peak Gain: 3.7dB

? Package Includes:

  • 1× Flywoo TCXO 2.4G ELRS EL24P Receiver
  • 1× Silicone Cable
  • 1× Heat Shrink Tube
  • 1× T Antenna
