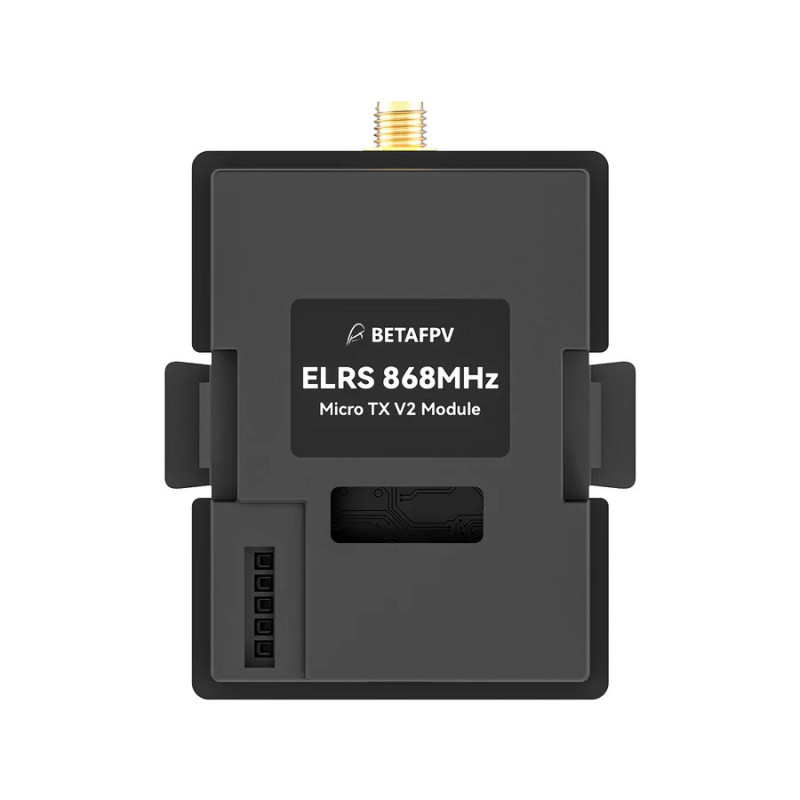

BetaFPV Micro TX V2 Module 2W ELRS 868MHz/915MHz

Micro TX V2 Module 2W ELRS 868MHz

The Micro TX V2 Module is a high-performance radio transmitter designed for FPV systems, offering a maximum RF output power of 2W and operating on the 868MHz frequency. With its integration of the ExpressLRS protocol, it ensures exceptional performance and reliability for long-range flights.

Key Features:

• High Output Power: The maximum RF power of 2000mW delivers a stronger signal and extended transmission range, making it ideal for long-range flights.

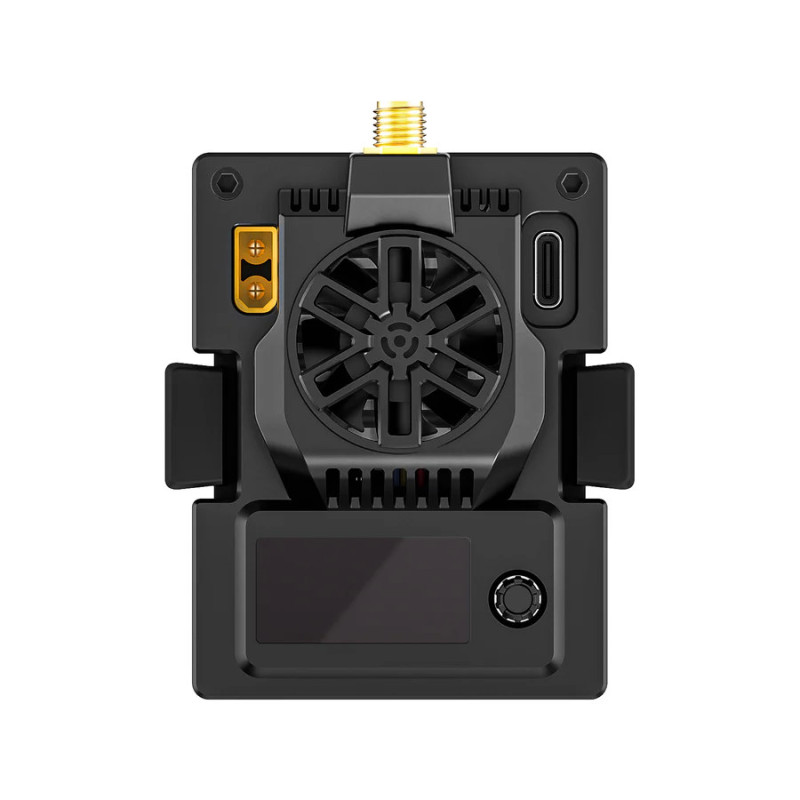

• Advanced Cooling System: Equipped with a built-in TCXO (Temperature Compensated Crystal Oscillator), CNC aluminum heatsink, enlarged ventilation holes, and a high-efficiency 2507 axial fan for effective heat dissipation even at maximum power.
• Wide Frequency Packet Support: Supports packet rates of 25Hz, 50Hz, 100Hz, 100Hz Full, 200Hz, and D50, catering to various user needs.
• Easy Firmware Updates: The module features a 5-way button and an OLED screen, allowing for easy firmware flashing and status monitoring.

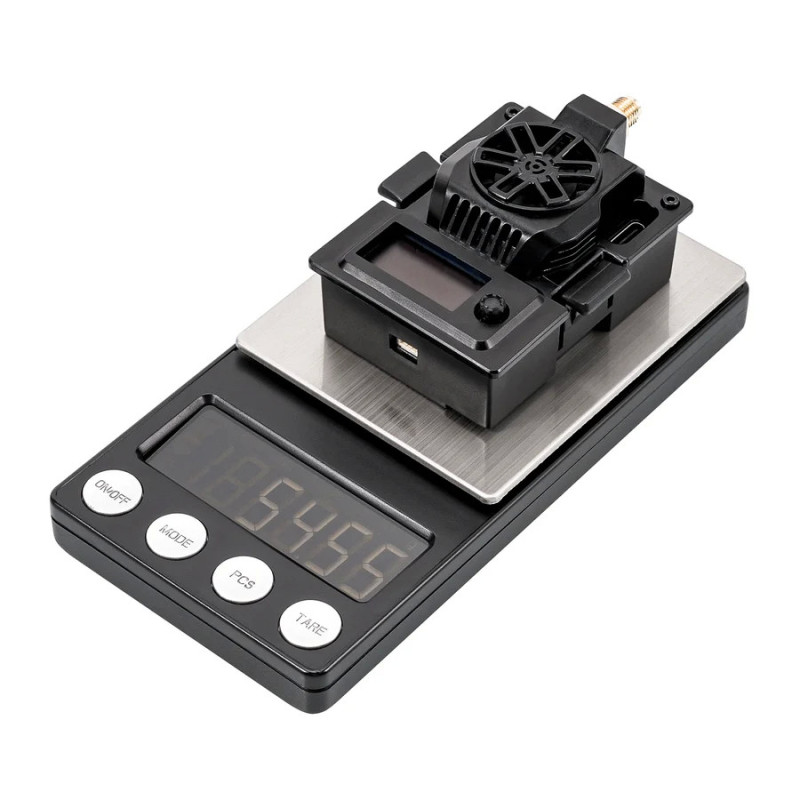

• Compact and Lightweight: Weighing only 54.8g, the module is portable and easy to install.

Technical Specifications:

• Model: BETAFPV Micro TX V2 Module | ELRS 868MHz
• Weight: 54.8g
• Color: Black
• Antenna Connector: SMA-KE
• RF Power Levels: 10mW / 25mW / 50mW / 100mW / 250mW / 500mW / 1000mW / 2000mW
• Packet Rates: 25Hz / 50Hz / 100Hz / 100Hz Full / 200Hz / D50
• Frequency Band: 868MHz EU
• Backpack Feature: Supported
• Input Voltage: 7V~13V DC
• Rated Current: 10V, 1A @ 2000mW, 200Hz, 1:128
• USB Port: Type-C
• Fan Voltage: 5V
• Default Firmware Version: ExpressLRS V3.4.3
• Target Name: BETAFPV Micro 900MHz TX V2

Compatibility:

The Micro TX V2 Module is compatible with radio transmitters featuring a micro module bay (also known as JR/SLIM module bay), such as Frsky Taranis X9D or TBS Mambo.

Recommendations:

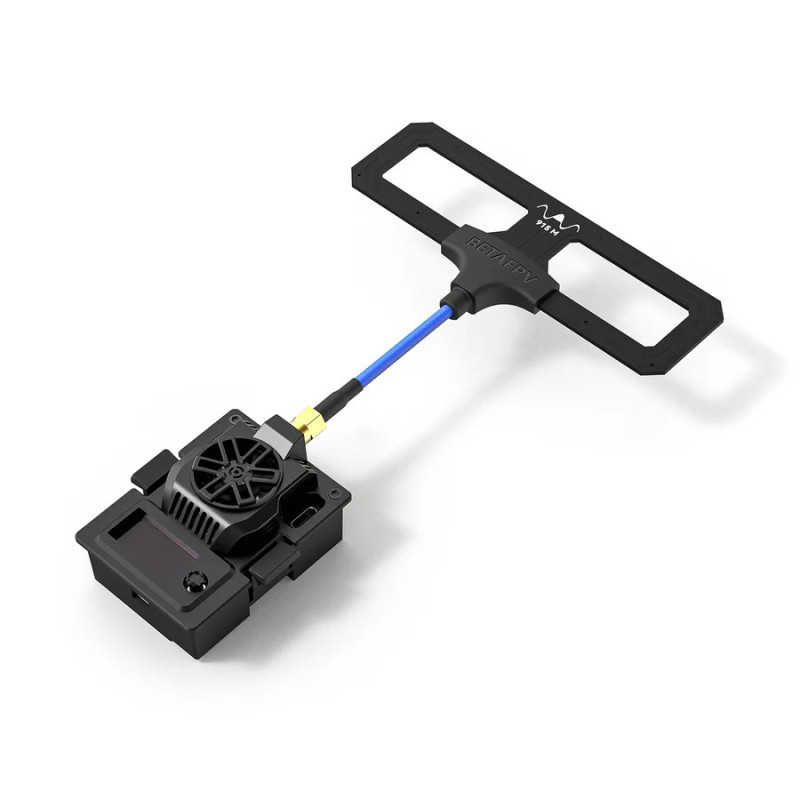

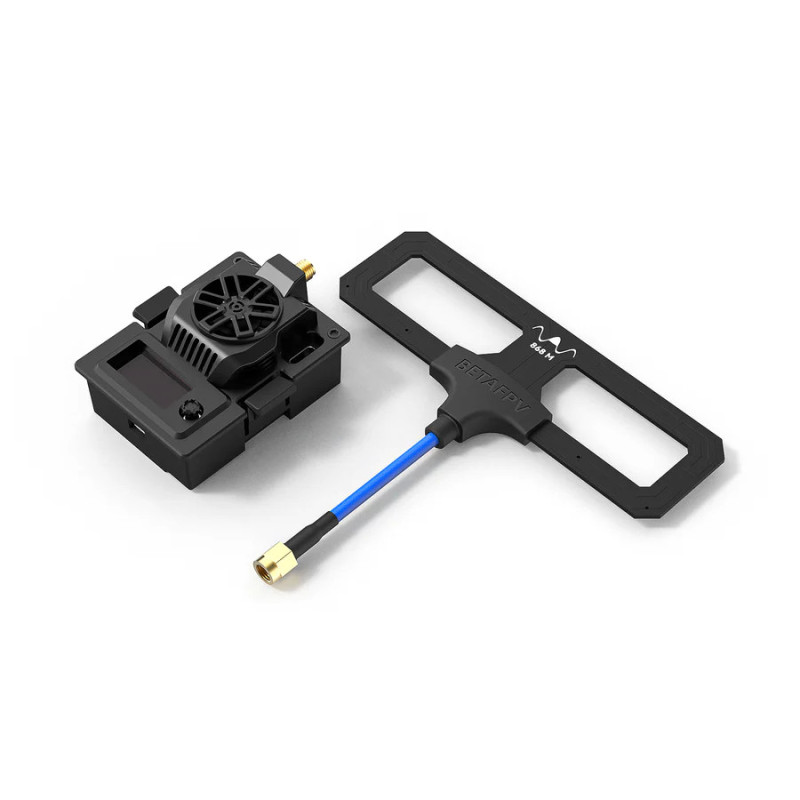

• Antenna Installation: Always attach the antenna before powering on the module to prevent damage to the PA circuit.
• Firmware Updates: The module supports firmware updates via ExpressLRS Configurator, allowing users to easily customize functionality.

The Micro TX V2 Module 2W ELRS 868MHz is the perfect choice for FPV pilots seeking a reliable and efficient solution for long-range flights, offering advanced features in a compact form.
