SpeedyBee Bee35 3.5 inch Frame

The SpeedyBee Bee35 Frame is a versatile and durable frame for 3.5 inch class drones, available in three variants: Bee35 (standard), Bee35 Pro (upgraded), and Bee35 Pro LED (with built-in LED lighting). All versions feature a 153mm wheelbase and thick carbon fiber plates (top 3.5mm, bottom 2mm), ensuring high resistance to damage. The frame offers multiple mounting options for the camera (19/20mm), flight controller (20x20/25.5x25.5/30.5x30.5mm), and video transmitter (20x20/25.5x25.5mm). It is compatible with 90mm propellers and motors with a 12x12mm mounting hole pattern (recommended 1806/2004/2006 with KV 4S/2500-3500KV or 6S/1800-2300KV). The weight of the Bee35 frame starts at 138g. The Pro version may include additional components such as a CNC heat sink and camera gimbal (totaling +43g). The Pro LED version features built-in LED lighting for enhanced visibility. Choose the version that best suits your needs!

Available Versions:

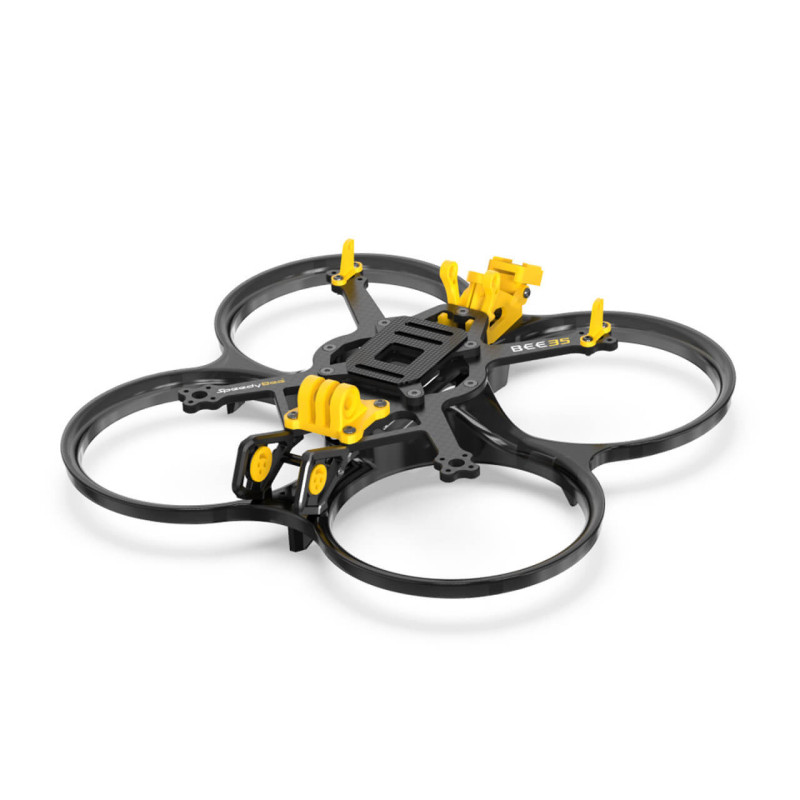

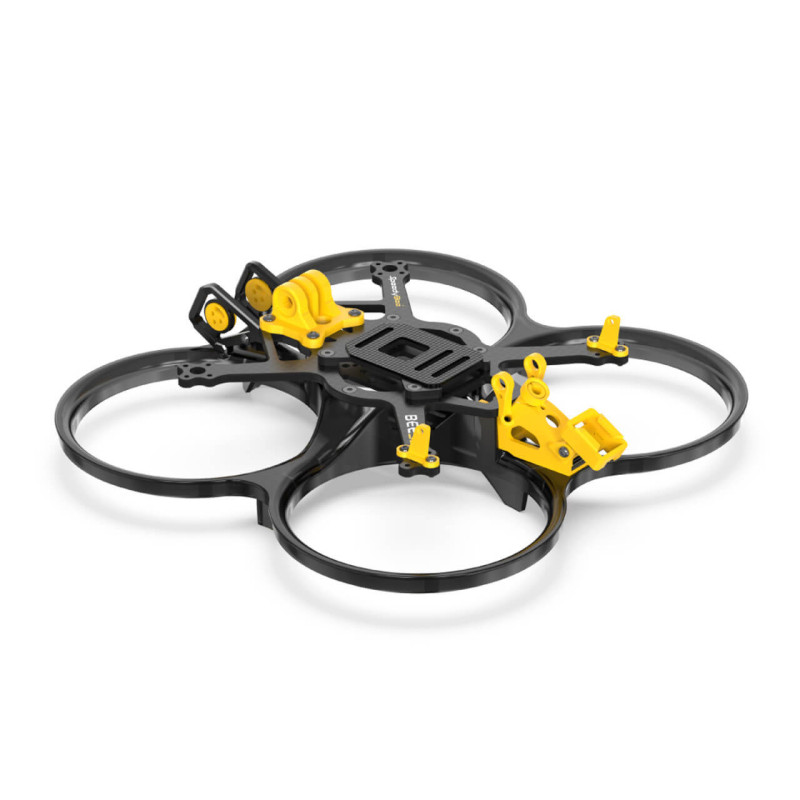

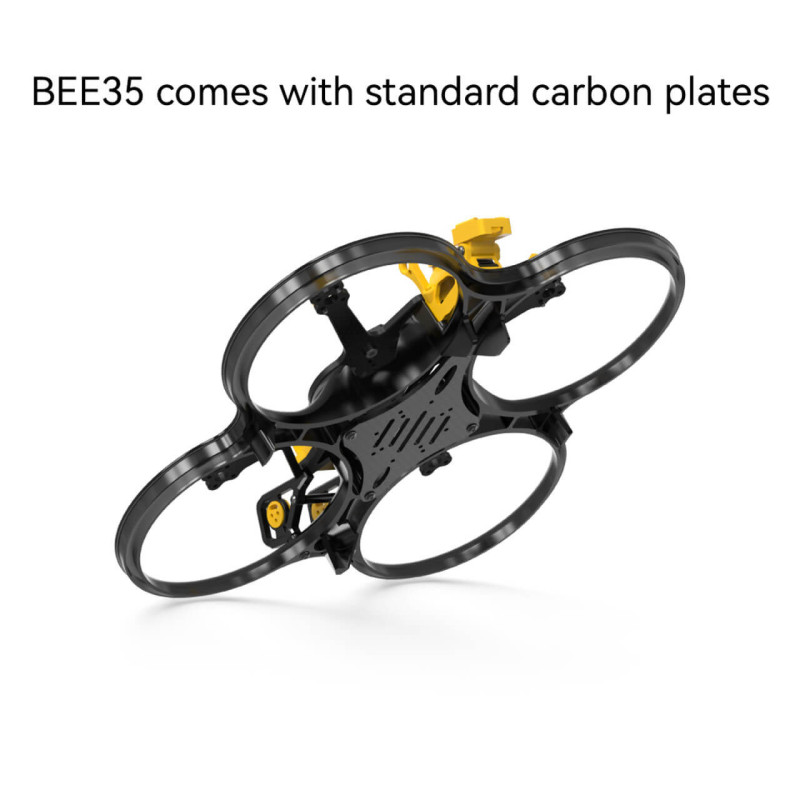

• Bee35: Standard, durable 3.5 inch frame.

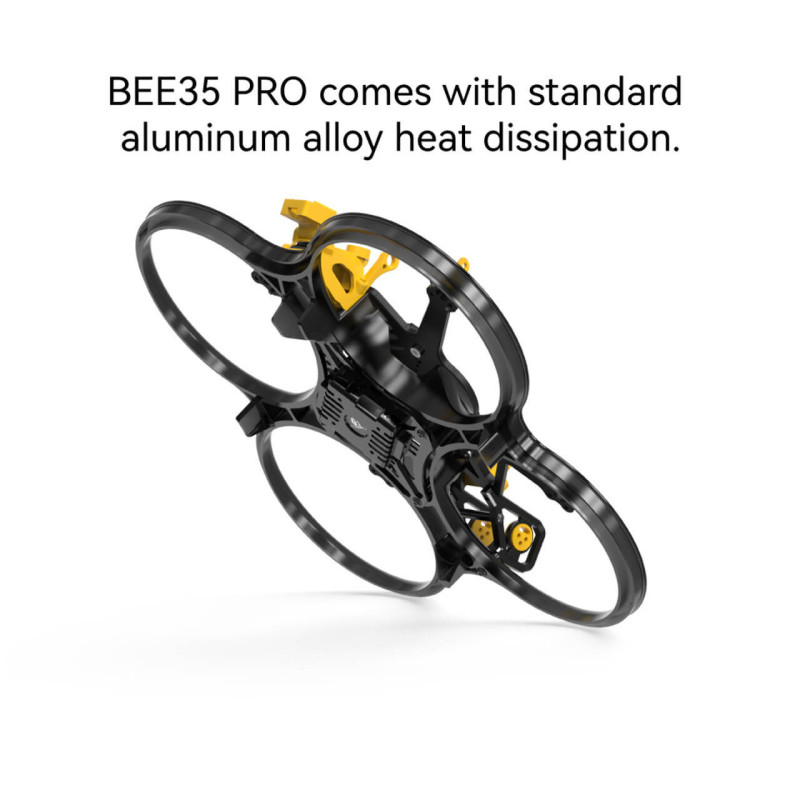

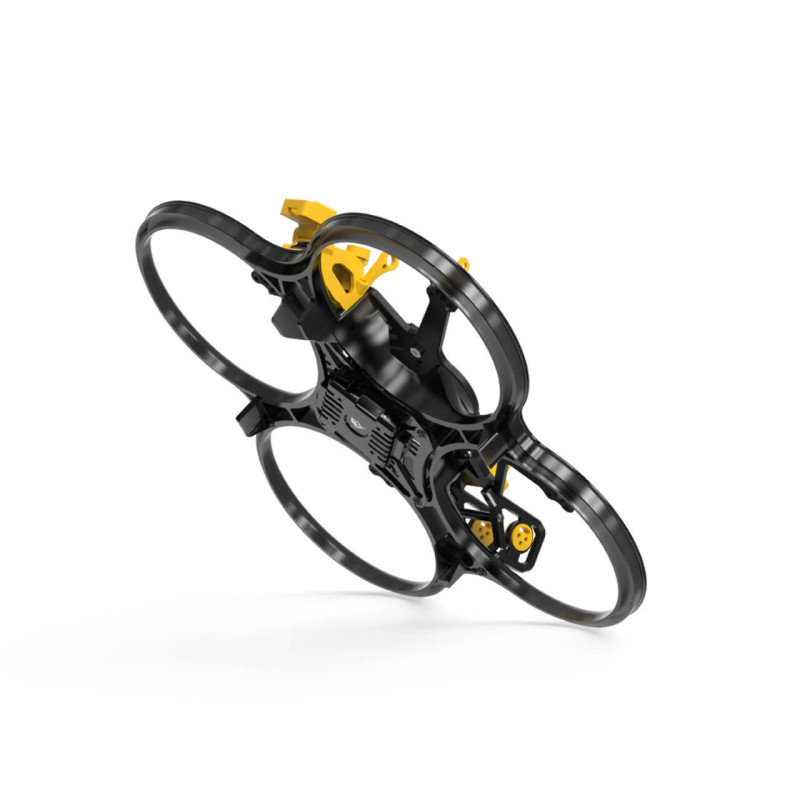

• Bee35 Pro: Upgraded version with a CNC heat sink (15g) and camera gimbal (28g) for better cooling and camera stabilization.

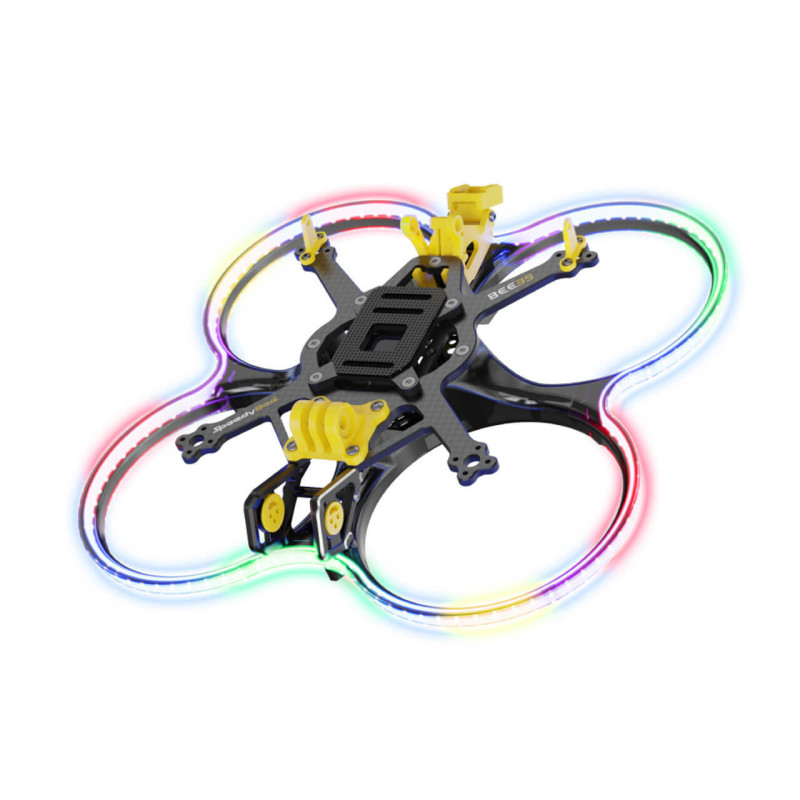

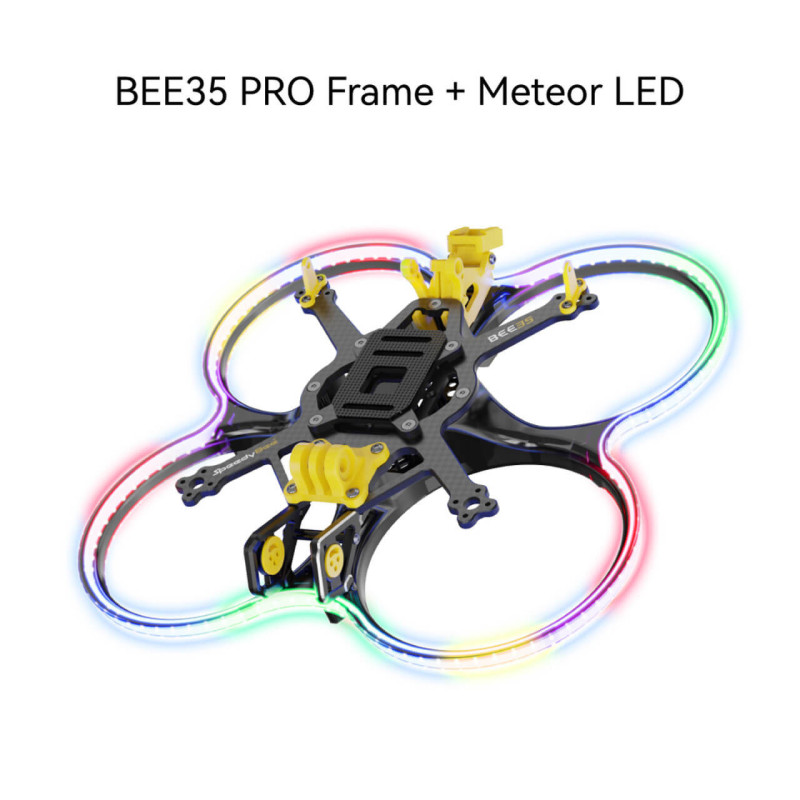

• Bee35 Pro LED: Pro version with additional built-in LED lighting for enhanced visibility and visual effects.

Specifications (General):

• Wheelbase: 153mm
• Top Plate Thickness: 3.5mm
• Bottom Plate Thickness: 2mm
• Camera Mounting Distance: 19/20mm
• ESC/Motor Mounting Height: 24mm
• Flight Stack Mounting Holes: 2020/25.525.5/30.5*30.5mm
• Video Transmitter Mounting Holes: 2020/25.525.5mm
• Propeller Size: 90mm
• Motor Mounting Holes: 12*12mm
• Recommended Motors: 1806/2004/2006
• Recommended KV: 4S/2500-3500KV, 6S/1800-2300KV
• Recommended Battery: 900-1500mAh 4S/6S

Weight (approximate):

• Bee35: 138g
• Bee35 Pro: 138g + 15g (heat sink) + 28g (gimbal - to buy separately) = 181g
• Bee35 Pro LED: Weight of Pro version + weight of LEDs (no exact information)
