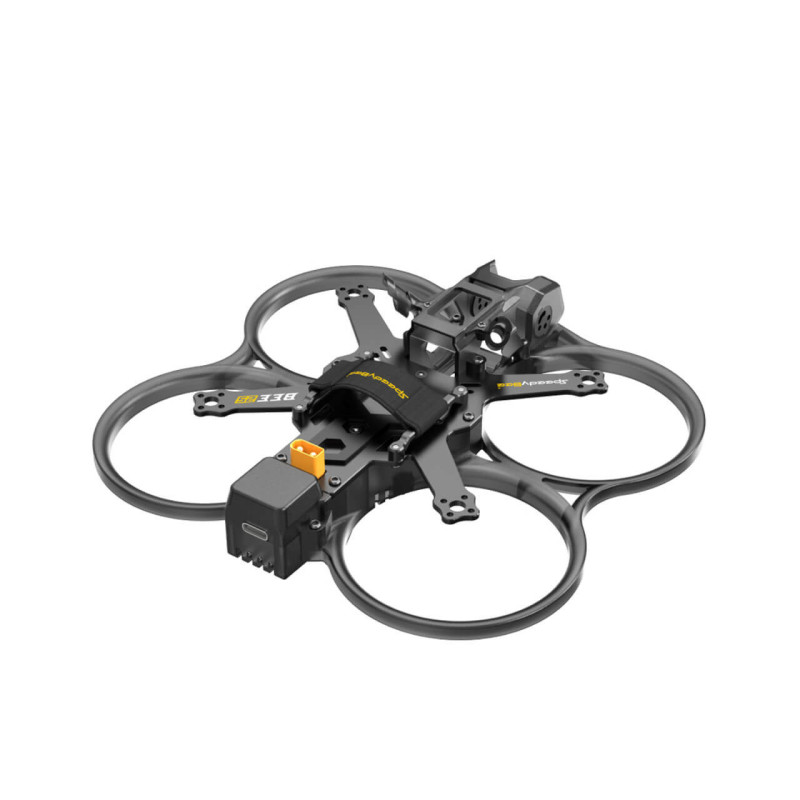

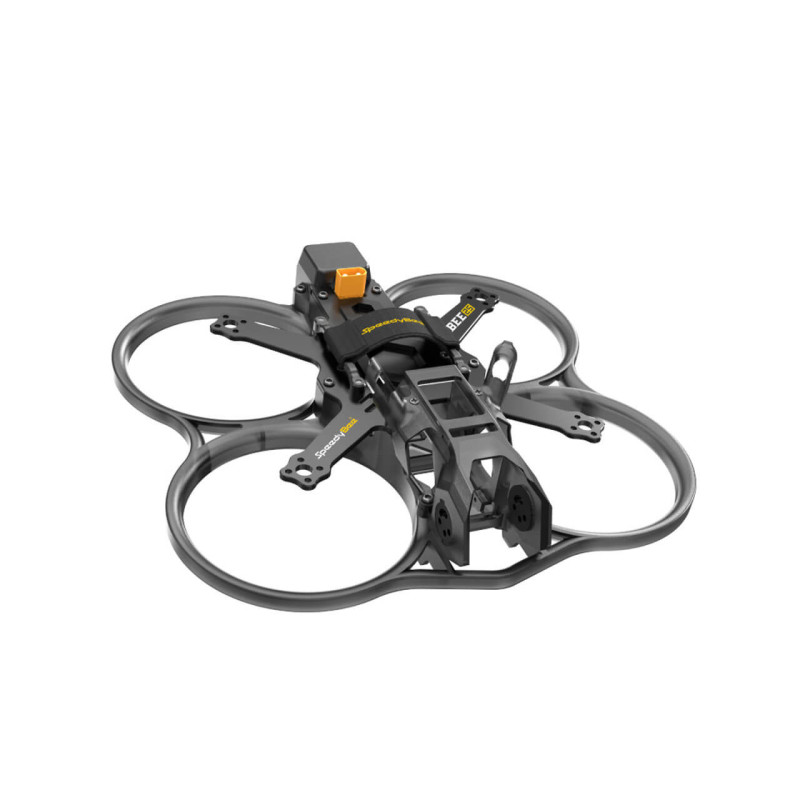

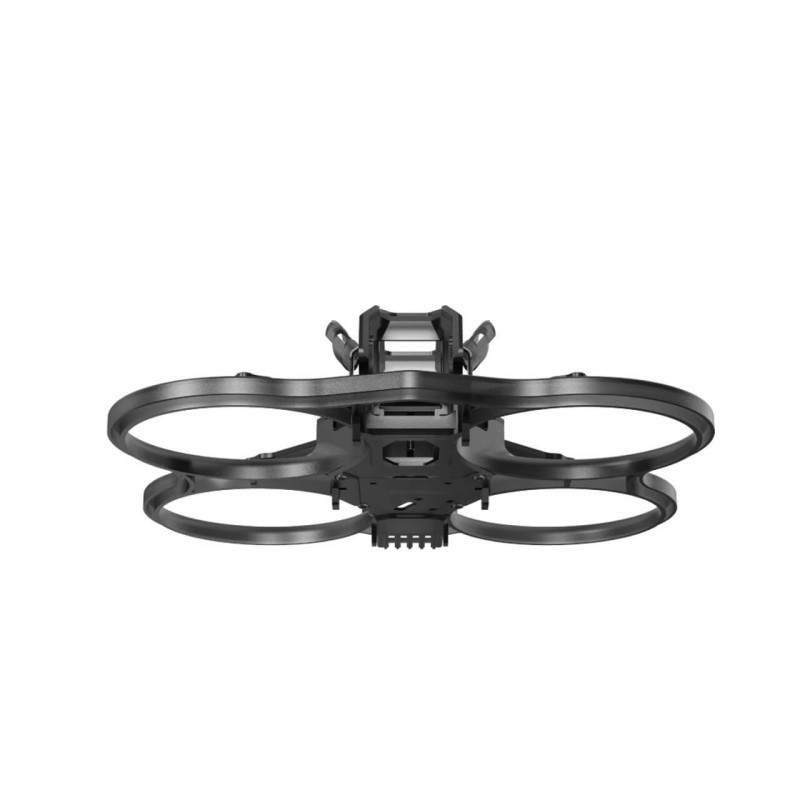

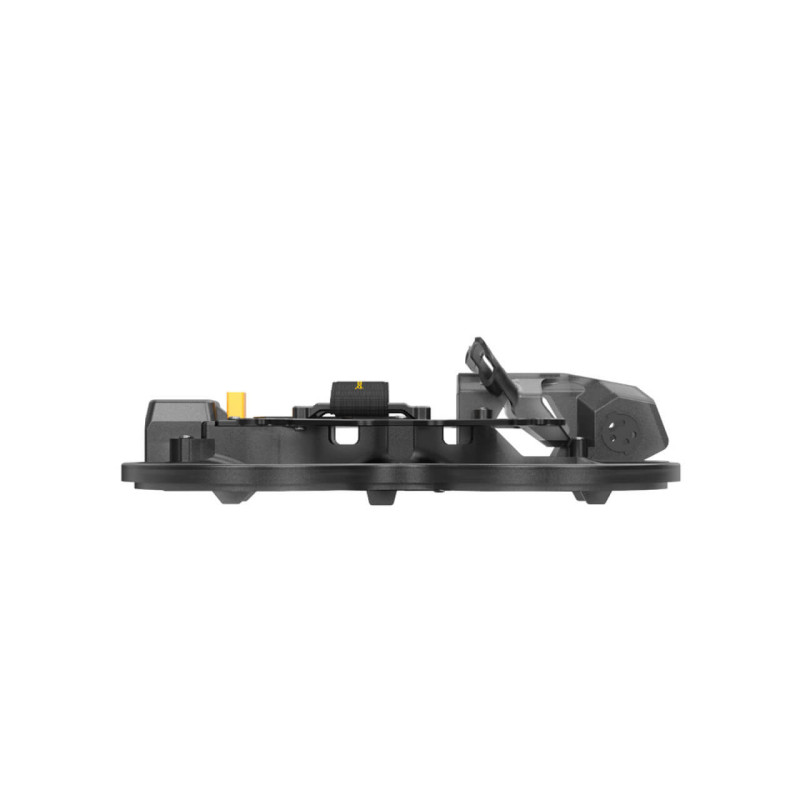

SpeedyBee Bee25 Wireless Tuning Frame

The SpeedyBee Bee25 Frame is a lightweight and compact frame for 2.5 inch class drones, designed with convenient wireless flight controller tuning in mind. It is available in two versions: Standard and Pro. Both versions feature a 120mm wheelbase and 2mm thick carbon fiber plates. The frame offers 19/20mm camera mounting and an 18mm mounting height for electronics. The stack mounting holes are a standard 25.5x25.5mm. The frame is compatible with popular video transmitters such as O3 Air Unit, Link, TX800, and TXULTRA (modules other than O3 may require additional 3D printed parts). It is designed for 2.5 inch propellers and motors with a 9x9mm mounting hole pattern (recommended 1404/1504/1505 with KV 4S 4300-4800KV or 6S 2350-2900KV) and 4S 650-1100mAh or 6S 650-850mAh batteries. The frame weighs only 68±2g. The Pro version may offer additional enhancements or features for easier assembly and use. Choose the version that best suits your flying style!

Available Versions:

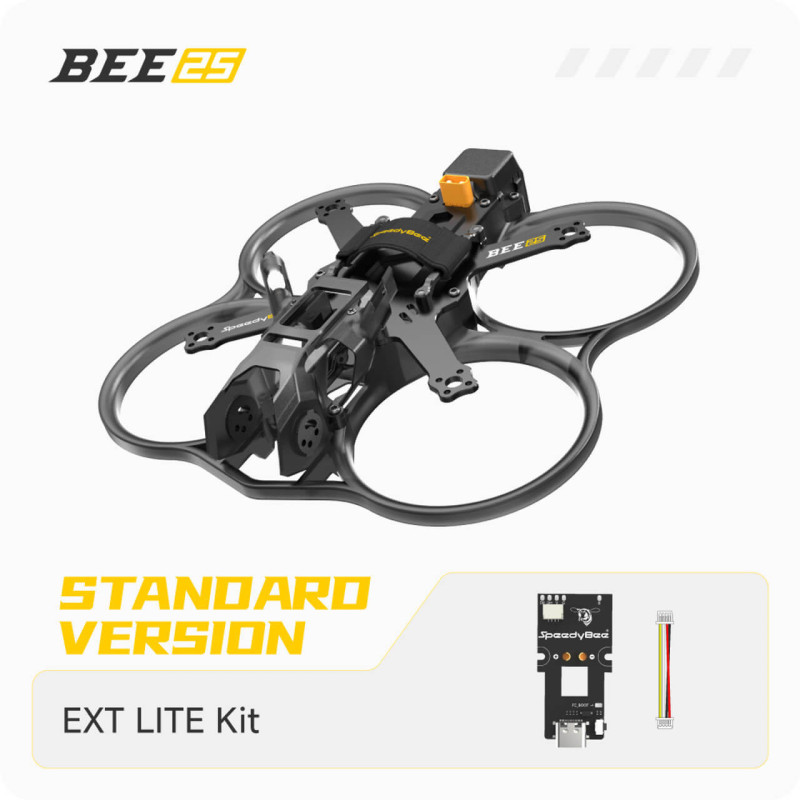

• Bee25 Standard Version: Lightweight and compact 2.5 inch frame with wireless FC tuning capability.

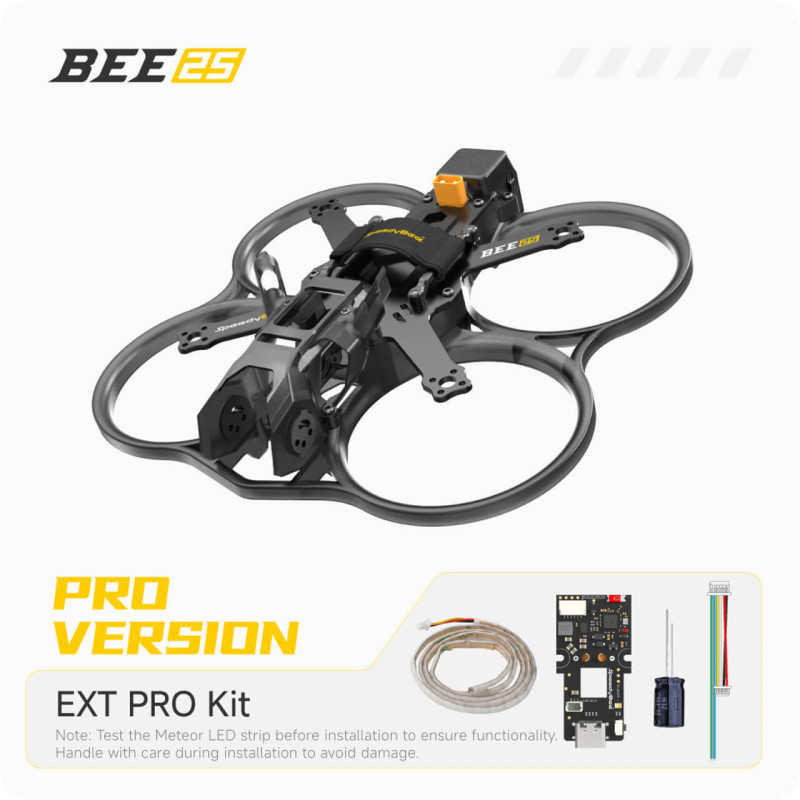

• Bee25 Pro Version: Upgraded frame version with additional features or elements for easier building and operation. (Specific Pro version enhancements may vary depending on the source).

Specifications (General):

• Wheelbase: 120mm
• Carbon Plate Thickness: 2mm
• Camera Mounting Distance: 19/20mm
• Mounting Height of Electronic Equipment: 18mm
• Stack Mounting Holes: 25.5*25.5mm
• Compatible VTX: O3AirUnit / Link / TX800 / TXULTRA (others may require 3D printed adapter)
• Propeller Size: 2.5 inch
• Motor Mounting Holes: 9*9mm
• Weight: 68±2g
• Recommended Motors: 1404/1504/1505
• Recommended KV: 4S 4300-4800KV, 6S 2350-2900KV
• Recommended Batteries: 4S 650-1100mAh, 6S 650-850mAh
