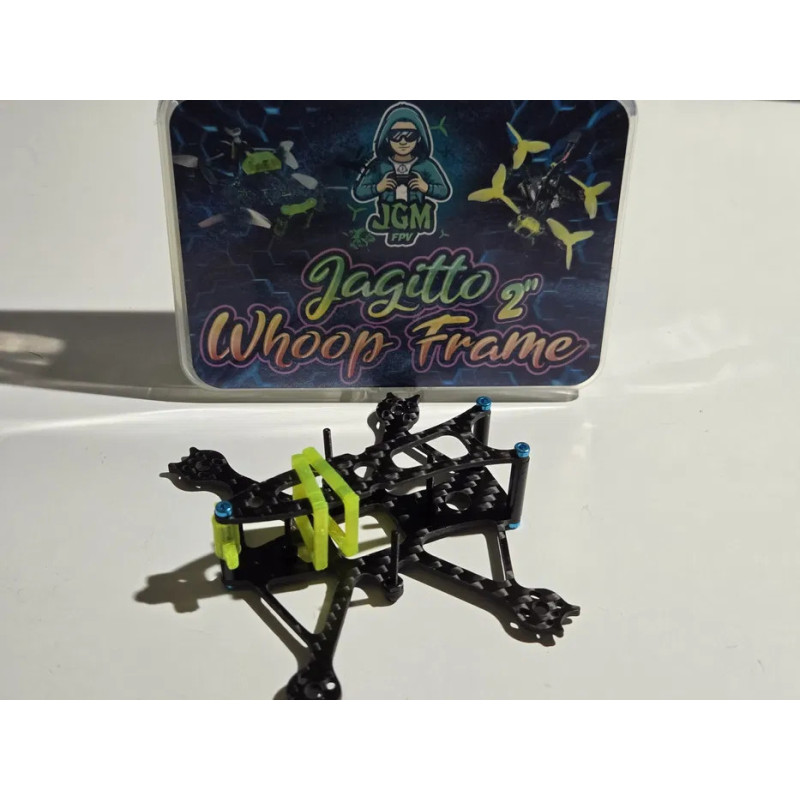

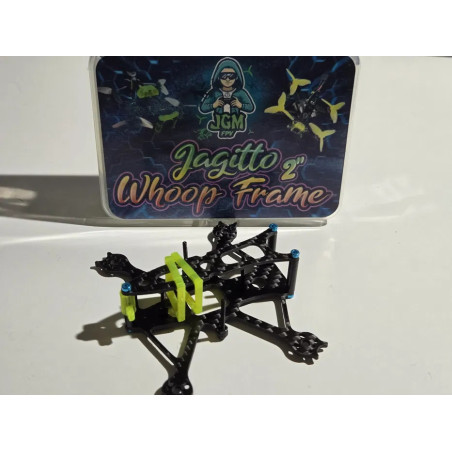

Jagitto 2" 2S FPV Frame (90 mm) – for DJI O4 Lite

Jagitto

SKU: Jagitto-2S-DJIO4Lite
99.77
Out-of-Stock

  • 30-day returns No questions asked
  • 12 mo warranty Manufacturer + Avifly
  • Shipping availability Same day before 12:00

Jagitto 2" 2S FPV Frame – 90 mm | Supports DJI O4 Lite

Durable carbon frame for 2-inch digital builds – ultralight, rigid and practical

The Jagitto 2" 2S is a high-quality FPV frame with a 90 mm wheelbase, designed for lightweight 2S builds using DJI O4 Lite. Supports 25.5×25.5 mm stack mounting, motor patterns 6.6 mm and 9×9 mm, and includes TPU camera mounts. Recommended for 1102 and 1103 motors and 2" props.

Product Features

  • ● 2" toothpick frame for 2S batteries
  • ● 25.5×25.5 mm stack mounting support
  • ● DJI O4 Lite and XT30 compatible
  • ● Motor mounting: 6.6 mm & 9×9 mm
  • ● 7 g carbon-only weight with full mounting kit

Specifications

  • ● Wheelbase: 90 mm
  • ● Main plate: 2 mm / Top plate: 1.5 mm
  • ● Stack size: 25.5×25.5 mm (18 mm height)
  • ● Camera mount: DJI O4 Lite
  • ● Recommended motors: 1102 / 1103
  • ● Frame weight: 7 g (carbon only)

Package Includes

  • ● 1× Bottom plate + 1× Top plate
  • ● 3× 18 mm aluminum standoffs
  • ● Full screw and nut set (nylon, steel, alu)
  • ● 3× Camera mounts (7°, 15°, 30°)
  • ● 1× Antenna and XT30 wire holder
  • ● 1× Battery holder & landing pad
  • ● 1× Box
