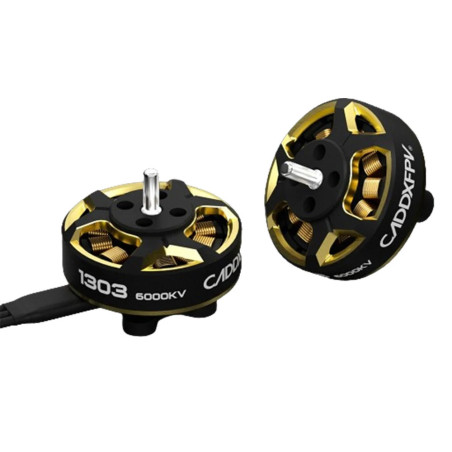

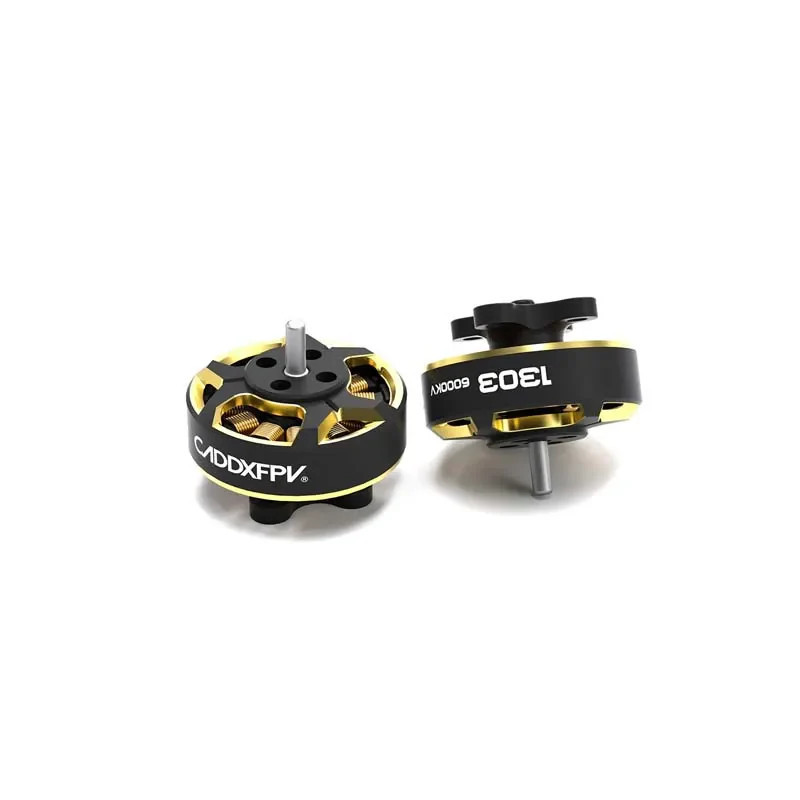

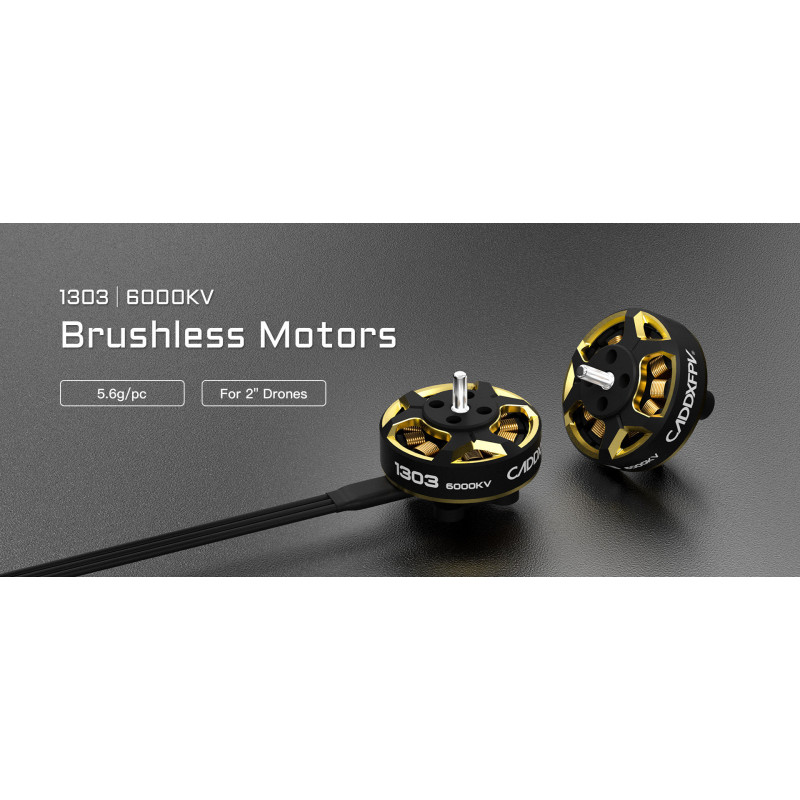

CADDXFPV 1303 6000KV Brushless Motors

The CADDXFPV 1303 6000KV brushless motor is designed for lightweight FPV configurations running on 2S to 4S LiPo batteries. Thanks to its compact size and efficient design, it is ideal for 2-inch propeller setups where responsiveness, smooth power delivery, and efficiency matter most.

Manufactured using one-piece injection molding, this motor offers excellent structural strength while maintaining a low weight of only 5.6 g. When paired with CADDXFPV T2-2-3 3-blade propellers, it delivers strong thrust with reduced noise, making it perfect for cinematic and agile micro builds.

Key Features

• • Optimized for 2S–4S LiPo setups
• • High 6000KV rating for fast throttle response
• • One-piece injection molded construction
• • Designed for 2-inch propellers
• • Excellent efficiency above 85% in 2–5A range
• • Lightweight design – only 5.6 g with cable

Technical Specifications

• • Model: 1303 6000KV Brushless Motor
• • KV: 6000
• • Configuration: 12N14P
• • Stator size: 13 × 3.2 mm
• • Shaft diameter: 1.5 mm
• • Motor dimensions: Ø 16.5 × 10.1 mm
• • Weight: 5.6 g (with 5 cm cable)
• • Supported LiPo cells: 2S – 4S
• • Max continuous power (3S): 250 W
• • Max current (3S): 16.9 A
• • Internal resistance: 166 mΩ
• • Idle current @5V: 0.7 A
• • Max efficiency: >85% (2–5 A)

Package Includes

• • 1pcs × CADDXFPV 1303 6000KV Brushless Motor
