T-Motor Pacer V4 P2406 Juicy Motor 2060kV
Power and Precision for FPV Freestyle Drones
T-Motor proudly presents the new PACER V4 2406 Series Acro Motors, specifically designed for 5-6 inch FPV freestyle drones. Perfectly tailored for dynamic flight styles such as JUICY SBANG, FLOW, BANDO, and other acrobatic maneuvers. The PACER V4 breaks traditional size limitations with a newly optimized core, redesigned magnetic circuit, and reinforced structure, offering supreme power and performance for freestyle FPV flying.
Product Features:
✅ Exceptional thrust and high power – ideal for aggressive 5-6 inch freestyle drones like JUICY SBANG.
✅ High torque and rapid throttle response – ensures precise control during swift throttle changes and acrobatic maneuvers.
✅ Low operating temperature and enhanced durability – maintains cool performance even under extreme settings, ensuring long-lasting efficiency.
✅ High crash resistance – engineered to withstand daily impacts associated with aggressive freestyle flying.

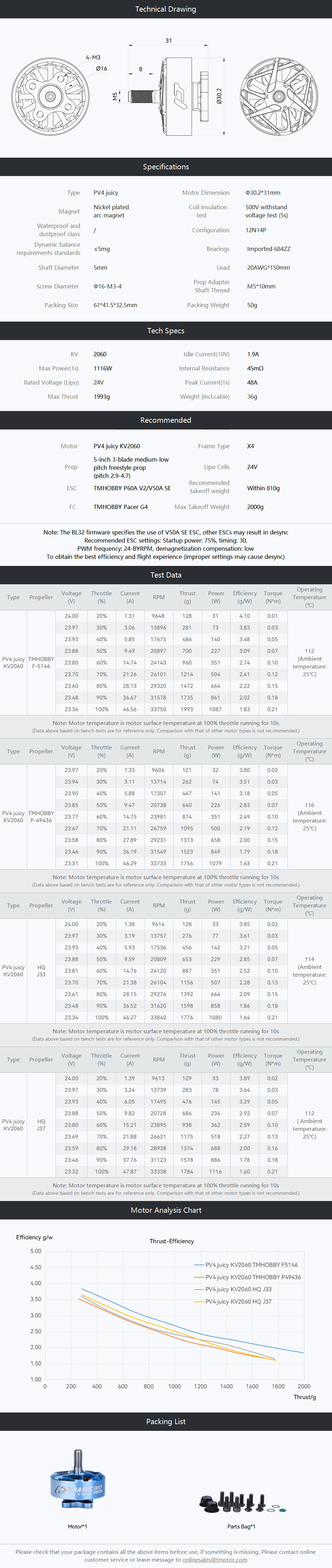

Specifications:
• KV: 2060
• Idle current (10V): 1.9A
• Maximum power (1s): 1116W
• Internal resistance: 45mΩ
• Recommended voltage (LiPo): 24V
• Peak current (1s): 48A
• Maximum thrust: 1993g
• Weight (with cable): 36g
• Dimensions: Φ30.2×31 mm
• Shaft diameter: 5 mm
• Bearings: Imported 684ZZ
• Wire length: 20AWG×150 mm
• Mounting holes: Φ16-M3-4
• Propeller adapter thread: M5×10 mm
• Package dimensions: 61×41.5×32.5 mm
• Package weight: 50g
Recommended Configuration:
• Model: PV4 Juicy KV2060
• Frame: X4 type
• Propellers: 5-inch, 3-blade, medium or low pitch (2.9-4.7)
• Battery: 24V LiPo
• ESC: T-Motor P60A V2 or V50A SE
• Flight controller: T-Motor Pacer G4
• Recommended takeoff weight: Up to 810g
• Maximum takeoff weight: 2000g
