T-Motor FT800 Transmitter

The FT800 is a premium-quality 5.8GHz video transmitter designed for exceptional resistance to interference and stable video transmission. Its compact size and lightweight design are essential for racing drones. The innovative LOCK-ON technology prevents "frequency drift," enabling up to 8 pilots to fly simultaneously without interference. An aluminum heatsink ensures efficient cooling, maintaining consistent power output.

Key Features:

• Perfect for group flights with LOCK-ON technology
• Adjustable transmission power: 25-800mW
• Powered directly by LiPo batteries
• PITMode allows channel changes without interference
• SmartAudio protocol for easy settings management
• Durable MMCX connector (lighter than SMA, stronger than uFL)
• Lightweight, durable aluminum case

Specifications:

• Input Voltage: 7-36V DC
• Output Voltage: 5V 1A
• Transmission Power: PIT/25/50/100/200/500/800 mW
• Dimensions: 28x28x3.1mm
• Weight: 7.58g

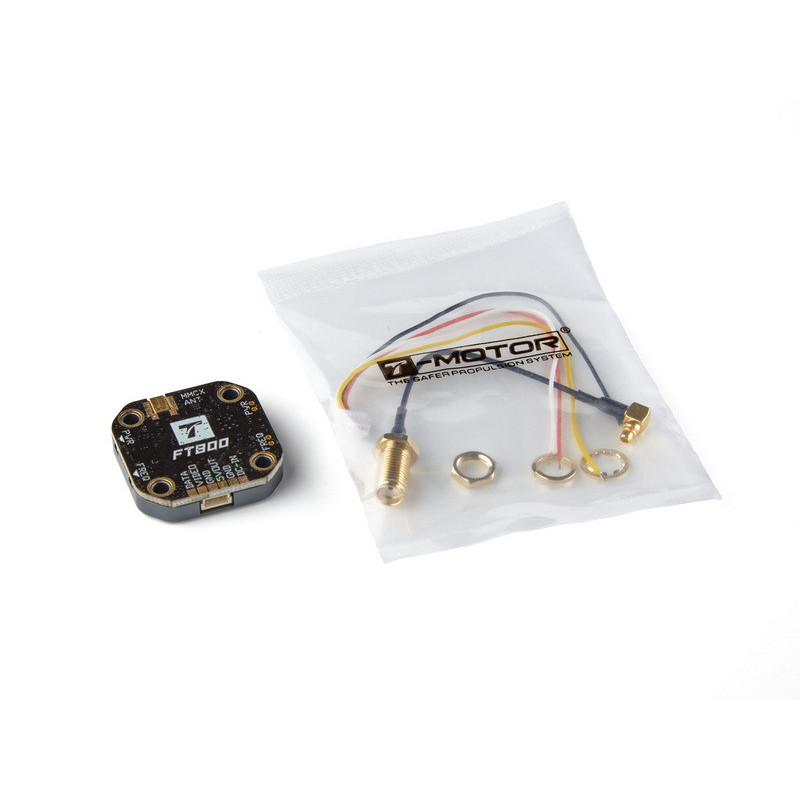

Packaging Includes:

• FT800 Transmitter
• SMA-MMCX pigtail cable
• MMCX dipole antenna
• Wire harness

Performance:

High Output Power:
The T-Motor FT800 delivers up to 800mW output, ensuring stable video transmission over long distances. Users can choose between 25mW, 200mW, 500mW, or 800mW, depending on their needs.

Clean Signal Transmission:
The transmitter provides consistent output across multiple frequencies, minimizing interference for a reliable video feed. It also eliminates signal "ripple" for enhanced image quality.

Connectivity:

SmartAudio 2.1 Protocol:
FT800 supports SmartAudio 2.1, allowing configuration via FPV goggles' On-Screen Display (OSD). Users can effortlessly change channels, transmission power, and other settings without physical access to the transmitter.

Compatibility:
The MMCX antenna connector supports a wide range of antennas, making it ideal for 5-inch racing drones.

Usability:

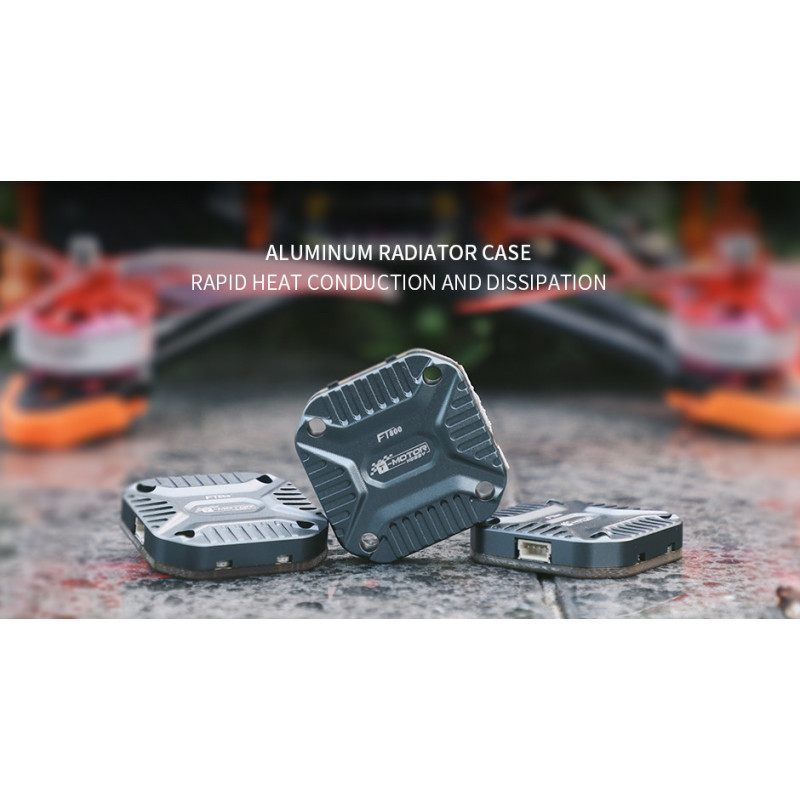

Efficient Heat Dissipation:
The aluminum case functions as a heat sink, ensuring stable performance even under heavy loads. This integrated design eliminates the need for additional cooling solutions, simplifying installation.

Easy Installation:
Plug-and-play interfaces make the FT800 quick and easy to install.

Stable Video Transmission:
The FT800 delivers high-quality video transmission, essential for FPV flights. Its quick frequency locking and interference resistance minimize the risk of signal loss.

Applications:

Racing Drones:
The high output power and stable transmission are perfect for racing pilots who need reliable video feeds to maintain control and achieve top performance.

Freestyle:
FT800 ensures clear and precise video quality, crucial for pilots performing dynamic maneuvers and acrobatics. Its long-range capability allows for confident flights without signal concerns.

Challenging Environments:
The FT800 excels in dense signal environments, such as near buildings or trees, minimizing interference and providing stable performance.

Conclusion:

The T-Motor FT800 800mW 20x20 is an advanced video transmitter designed to meet the needs of both novice and experienced FPV pilots. With high output power, stable video transmission, and SmartAudio functionality, it enables seamless flying in diverse terrains without concerns about signal quality. Its aluminum case provides efficient heat management, and the thoughtful design simplifies installation. Whether you're racing, exploring freestyle, or flying in challenging environments, the FT800 ensures reliable video transmission so you can focus on the joy of flying.
