SpeedyBee F405 V4 BLS 60A 30x30 FC & ESC Stack

SpeedyBee F405 V4 BLS 60A 30x30 FC & ESC Stack

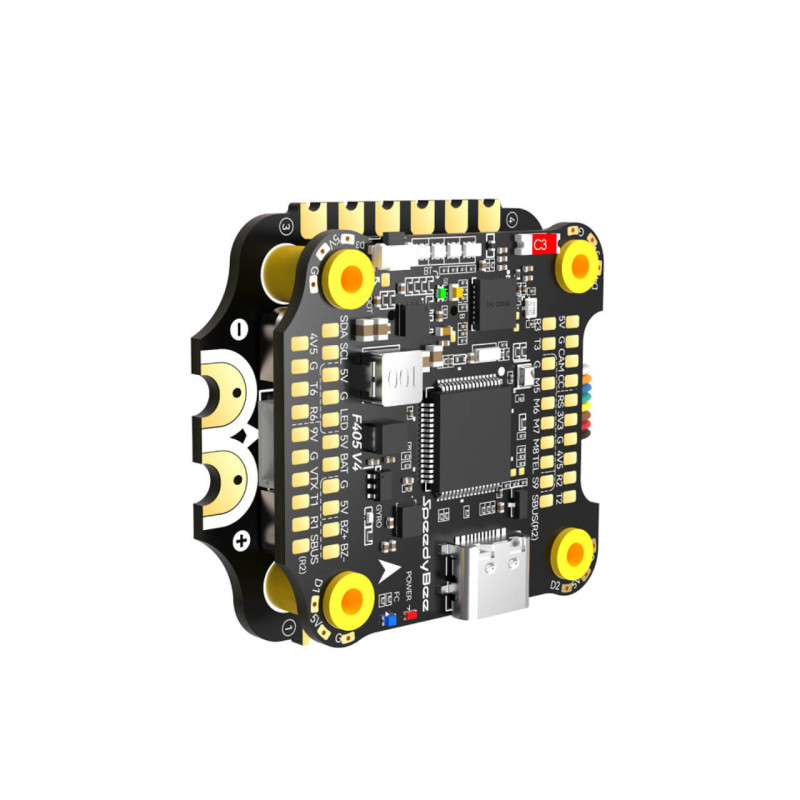

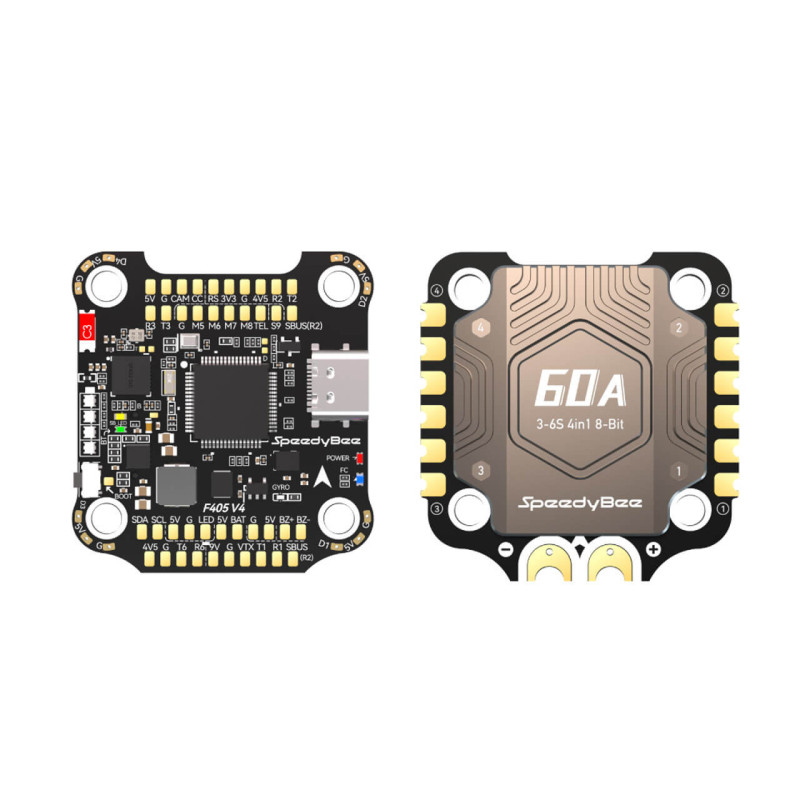

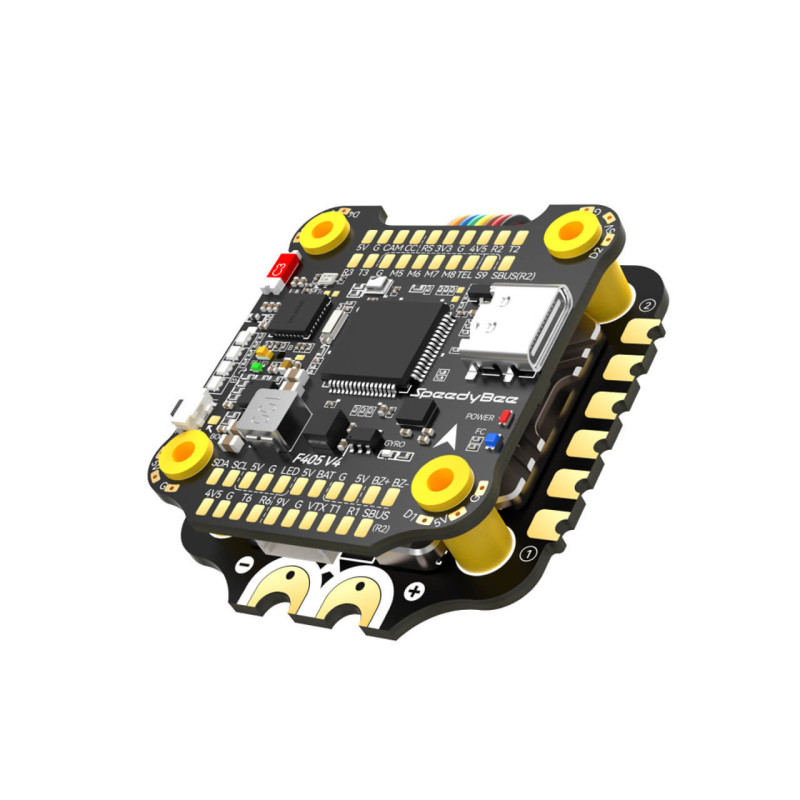

The SpeedyBee F405 V4 BLS 60A 30x30 Stack is a high-performance flight controller (FC) and electronic speed controller (ESC) combo designed for demanding FPV pilots. The F405 V4 flight controller features a powerful STM32F405 MCU, a precise ICM42688P gyroscope, and a built-in barometer and AT7456E OSD chip. It has integrated Bluetooth BLE for easy configuration via the SpeedyBee app. It offers multiple UART ports, seamless DJI Air Unit support (plug & play), a MicroSD card slot for Blackbox logging, and a built-in current sensor.

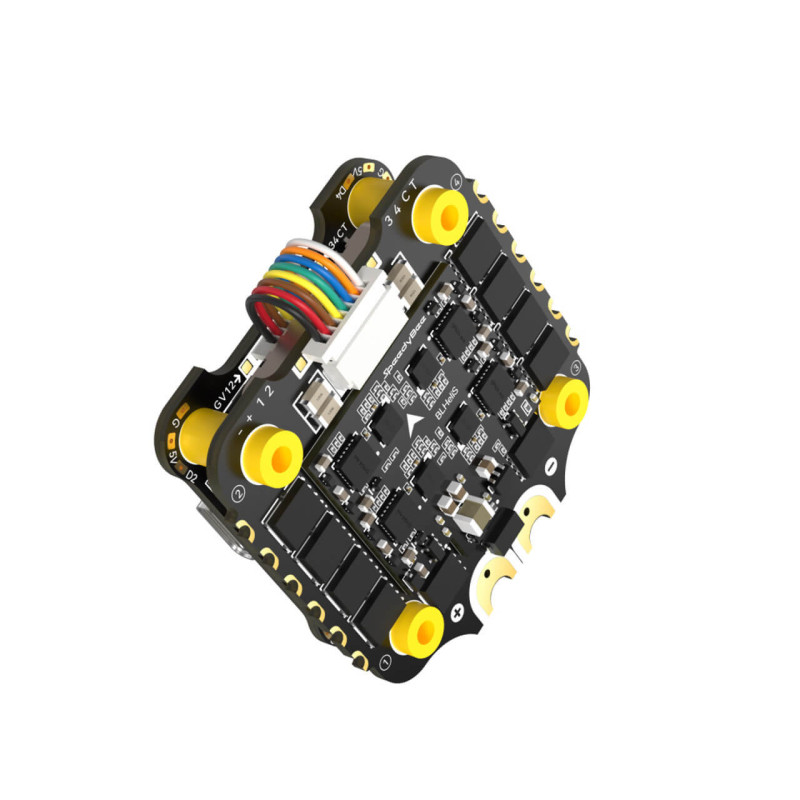

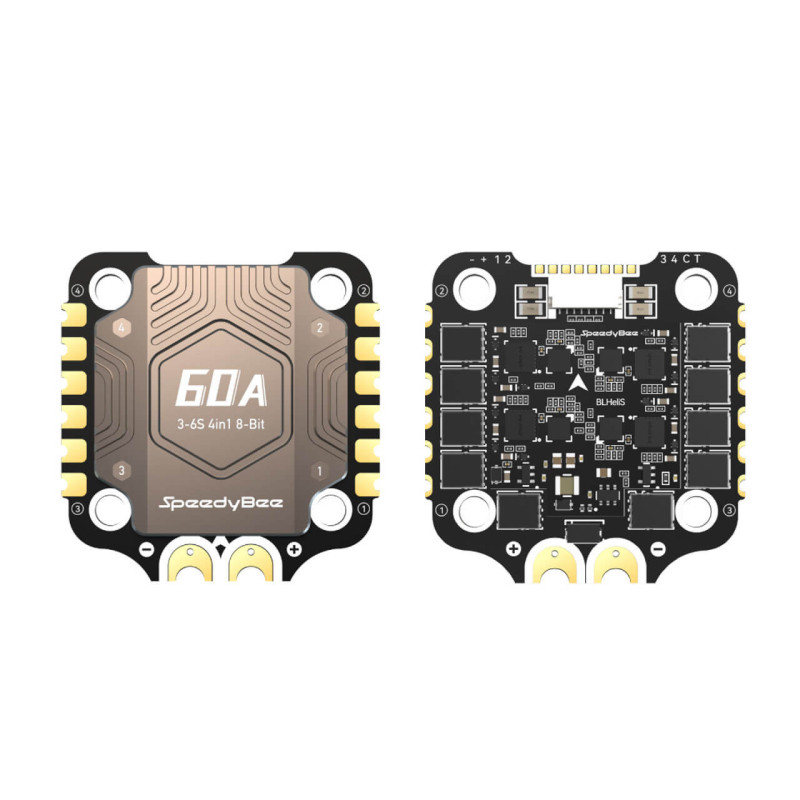

The BLS 60A ESC is a 4-in-1 speed controller that delivers a continuous current of 60A per motor (80A burst). It utilizes BLHeli_S firmware and supports DSHOT300/600 protocols. It features a built-in TVS protective diode and a 1000uF Low ESR capacitor. The stack is compatible with 3-6S LiPo power and has a standard 30.5x30.5mm mounting hole pattern.

Key Features of F405 V4 Flight Controller:

• STM32F405 MCU and ICM42688P gyroscope ensure stable and precise flight.
• Built-in Bluetooth BLE allows for convenient configuration via the SpeedyBee app.
• Full compatibility with DJI Air Unit (plug & play).
• Built-in barometer and AT7456E OSD chip for added functionality.
• MicroSD card slot for logging flight data (Blackbox).

Key Features of BLS 60A ESC:

• High continuous current of 60A per motor (80A burst) for more powerful motors.
• BLHeli_S firmware and DSHOT300/600 protocols ensure smooth motor operation.
• Compatible with a wide range of 3-6S LiPo power inputs.
• Built-in TVS protective diode and 1000uF capacitor for increased durability.

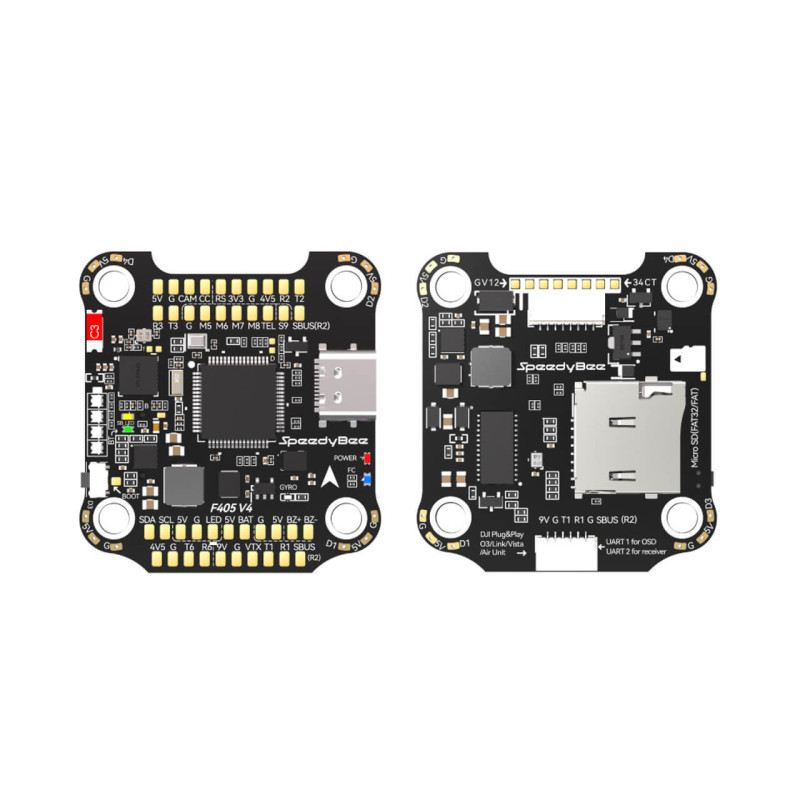

F405 V4 Flight Controller Specifications:

• MCU: STM32F405
• Gyroscope: ICM42688P
• Bluetooth BLE
• Barometer: Built-in
• OSD Chip: AT7456E
• Blackbox: MicroSD Card Slot (up to 32GB FAT32)
• UART: 6 sets
• DJI Air Unit Compatibility (6-pin & soldering)
• Current Sensor: Supported (scale 400, offset 0 for SpeedyBee 60A ESC)
• Power Input: 3-6S LiPo
• 5V/9V/3.3V/4.5V Outputs
• Mounting: 30.5 x 30.5mm
• Weight: 10.5g

BLS 60A ESC Specifications:

• Firmware: BLHeli_S J-H-40
• Continuous Current: 60A * 4
• Burst Current: 80A (10 seconds)
• TVS Protective Diode
• Capacitor: 1000uF Low ESR
• Protocols: DSHOT300/600
• Power Input: 3-6S LiPo
• Weight: 23.5g
