SpeedyBee 5.8GHz Goggles Receiver

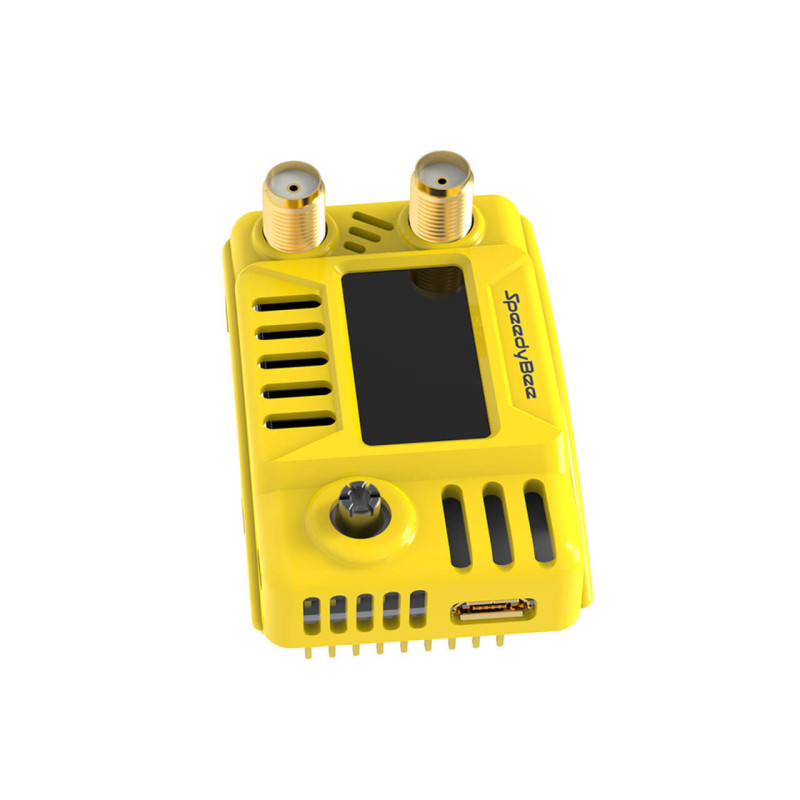

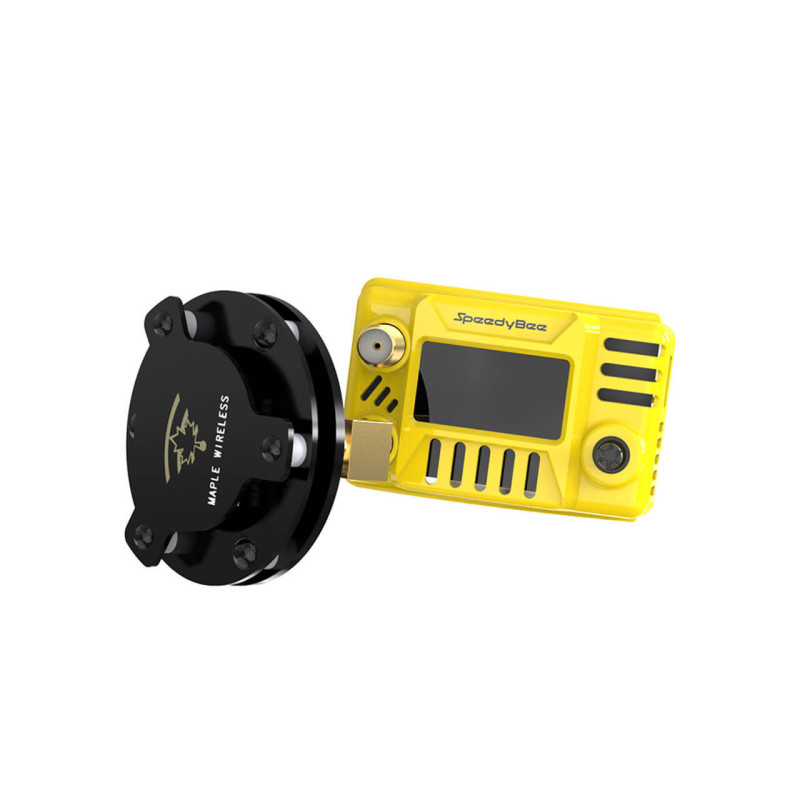

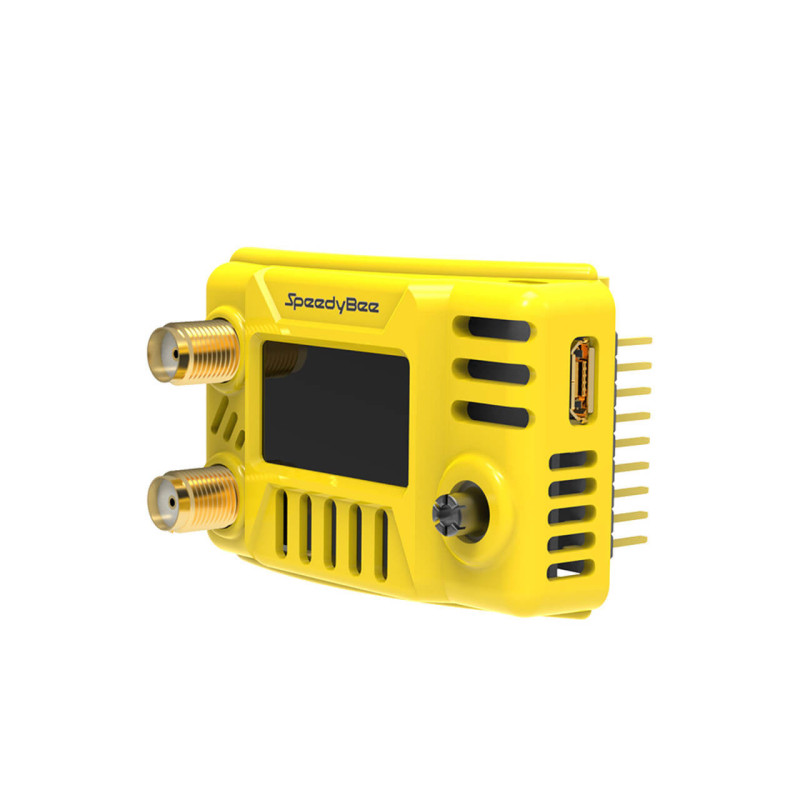

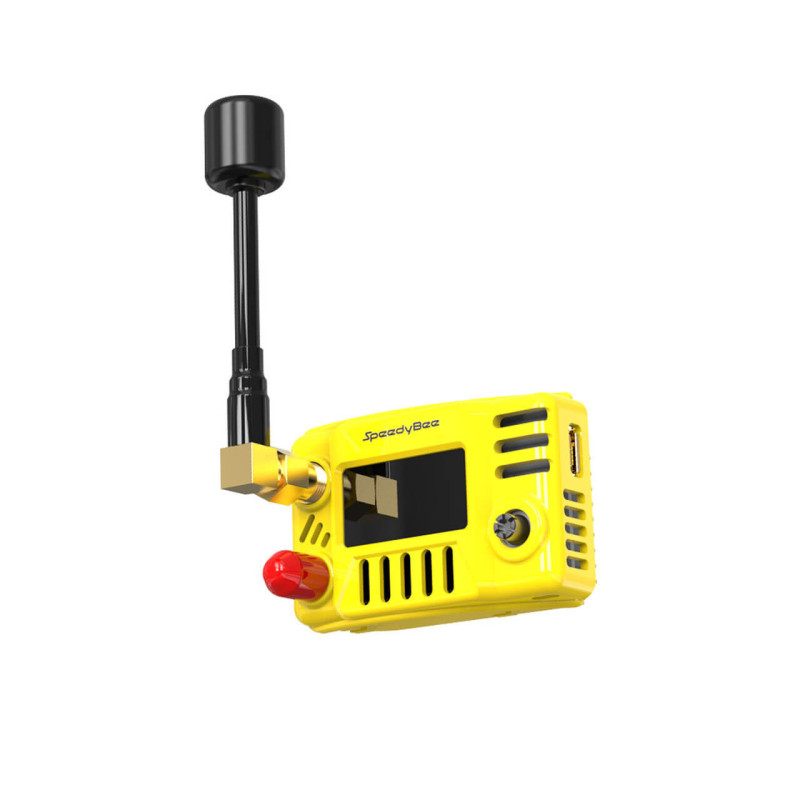

The SpeedyBee 5.8GHz FPV Goggles Receiver is a versatile receiver module designed to work with popular FPV goggles. It supports A, B, E, F, R, and L bands, offering a total of 48 channels in the frequency range of 5.3GHz~5.9GHz. It is compatible with Fat Shark Dominator goggles (including V1, V2, V3, SE, HD1, HD2, HD3, HDO, HDO2), HDZero (via analog conversion module), and DJI V1 and V2 (separate adapter required). The module operates at 5V and draws a current of 450mA. Its compact dimensions (51x34x17.8mm) and low weight (32.8g) make it easy to install.

Key Features:

• Wide Compatibility: Fat Shark, HDZero, DJI (with adapter).
• 48 Channels: Supports all popular 5.8GHz bands.
• Compact and Lightweight: Easy to install.
• Stable Operation: Low power consumption.

Specifications:

• Model: SpeedyBee 5.8GHz FPV Goggles Receiver Module
• Operating Voltage: 5V
• Operating Current: 450mA@5V
• Supported FPV Goggles: Fat Shark Dominator, HDZero, DJI V1/V2 (with adapter)
• Working Frequency: 5.3GHz~5.9GHz (48 channels)
• Bands: A, B, E, F, R, L
• Dimensions: 51x34x17.8mm
• Weight: 32.8g
