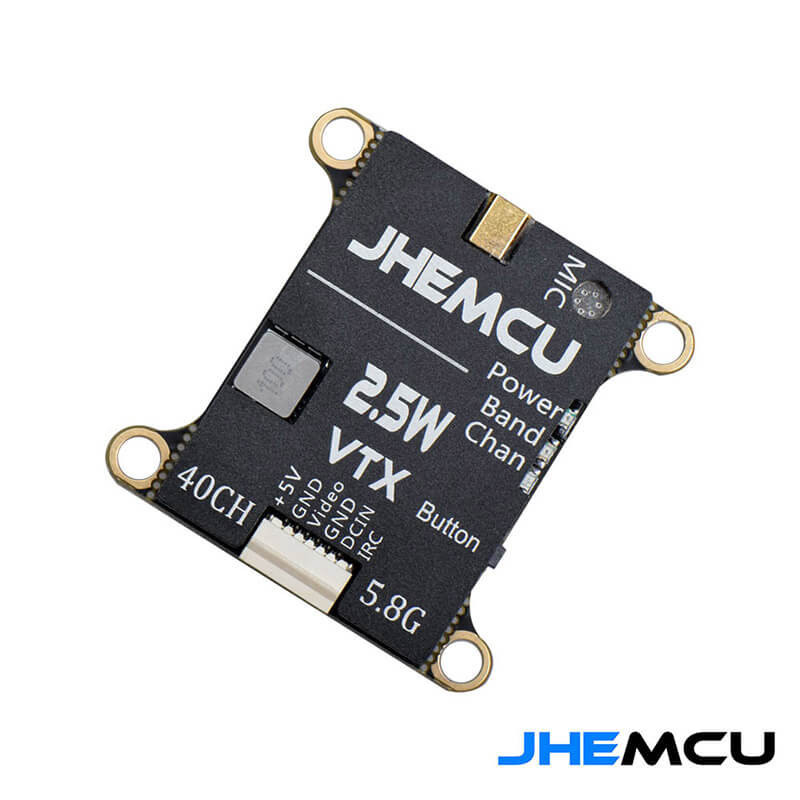

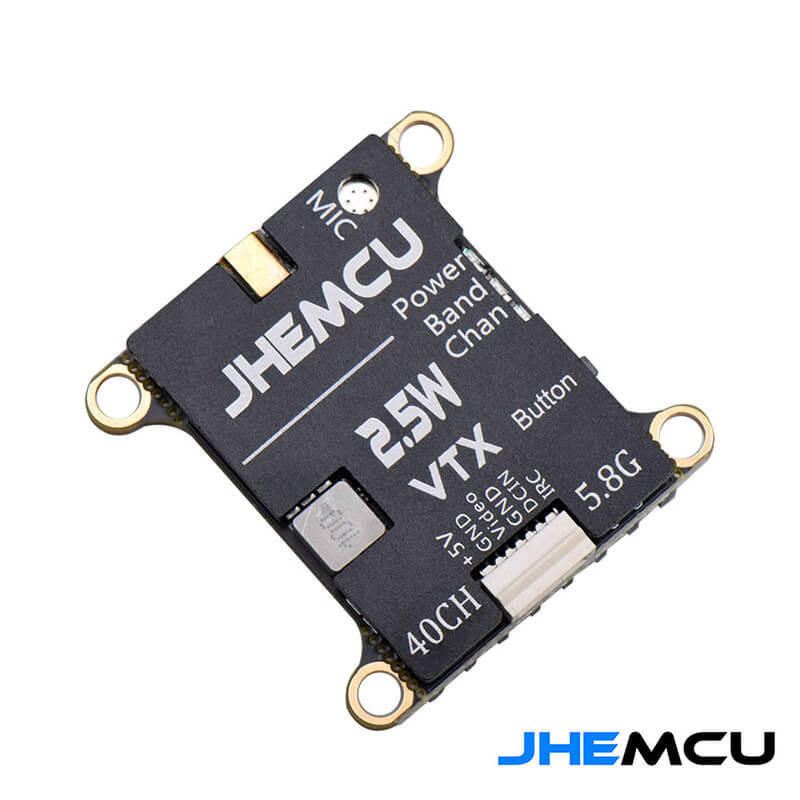

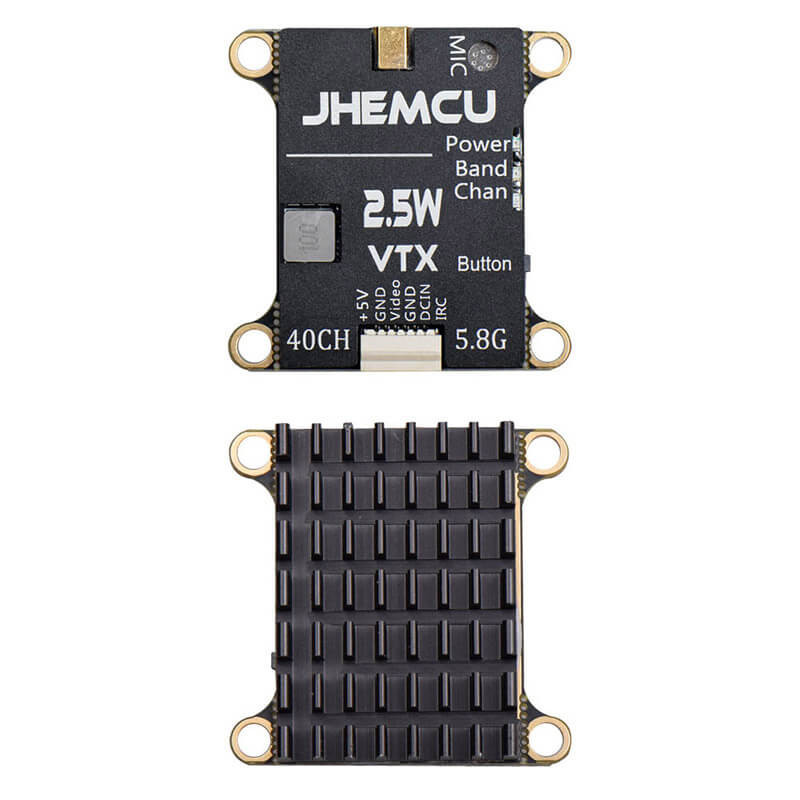

JHEMCU VTX2W5 – 5.8GHz 2.5W Video Transmitter with Audio and Thermal Protection
High-power FPV VTX with adjustable output, IRC Tramp protocol, and built-in microphone
JHEMCU VTX2W5 is a powerful 5.8GHz video transmitter designed for FPV drones requiring long-range and stable video transmission. It offers six adjustable power levels up to 2.5W, supports IRC Tramp protocol for OSD control, and features a built-in microphone for real-time audio transmission. The integrated thermal protection module ensures safe operation by automatically adjusting output power based on temperature.
Key Features:
- ✅ Adjustable output power: 0mW / 25mW / 400mW / 800mW / 1.5W / 2.5W
- ✅ Frequency range: 5645–5945MHz (40 channels)
- ✅ Default output: 5733MHz / 2.5W

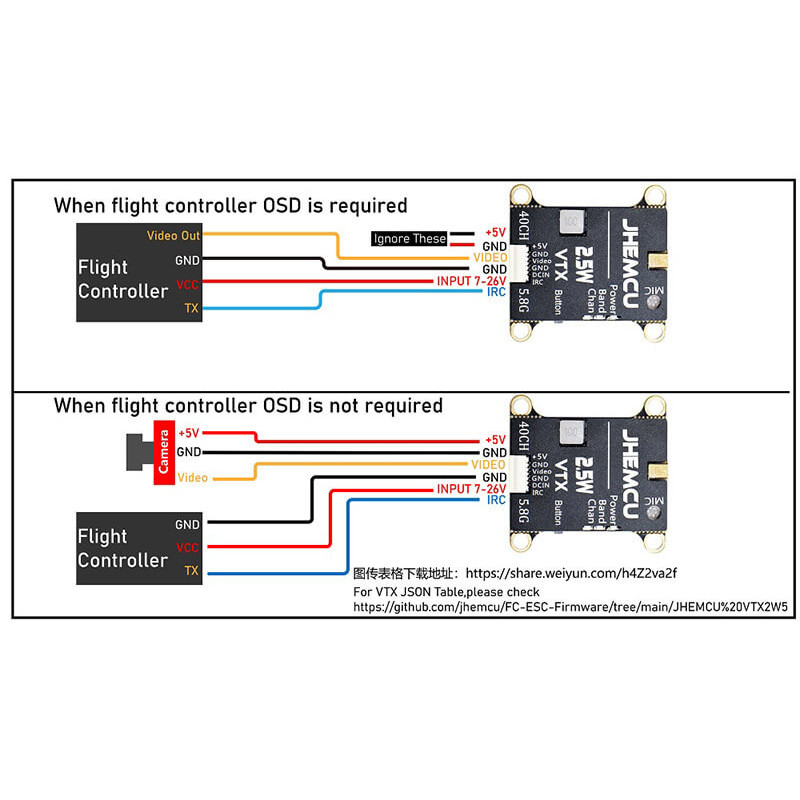

- ✅ Supports manual and OSD (IRC Tramp) power and frequency adjustments
- ✅ Built-in microphone for real-time audio transmission

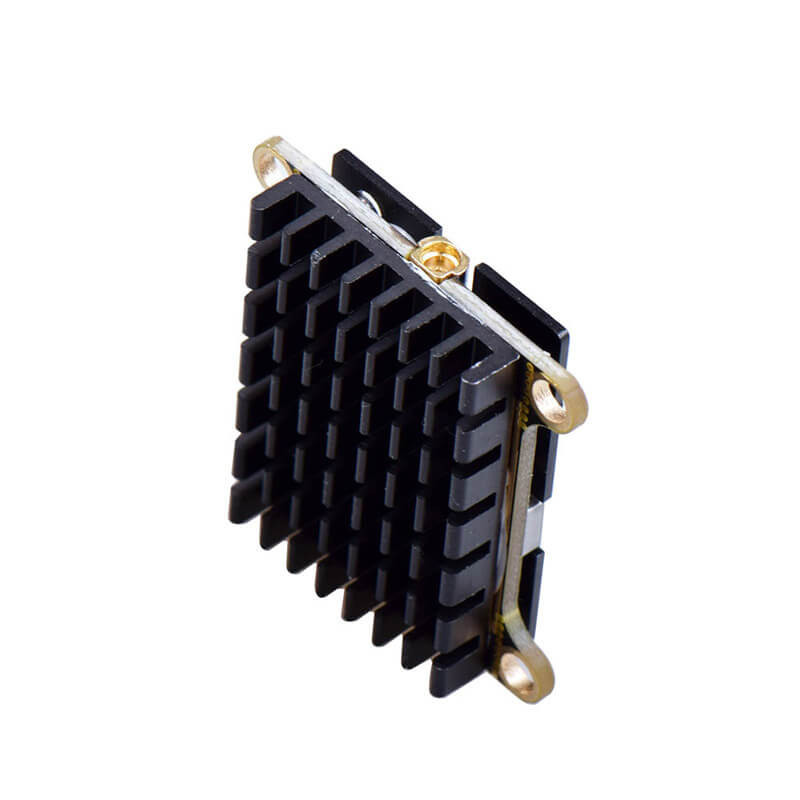

- ✅ Integrated thermal protection module reduces power output if temperature exceeds safe levels
- ✅ Power supply: 7–26V (2–6S LiPo)
- ✅ Current consumption: 650mA at 16V with 2.5W output
- ✅ Mounting hole spacing: 30.5×30.5mm (M3)
- ✅ Dimensions: 36×36×9.5mm

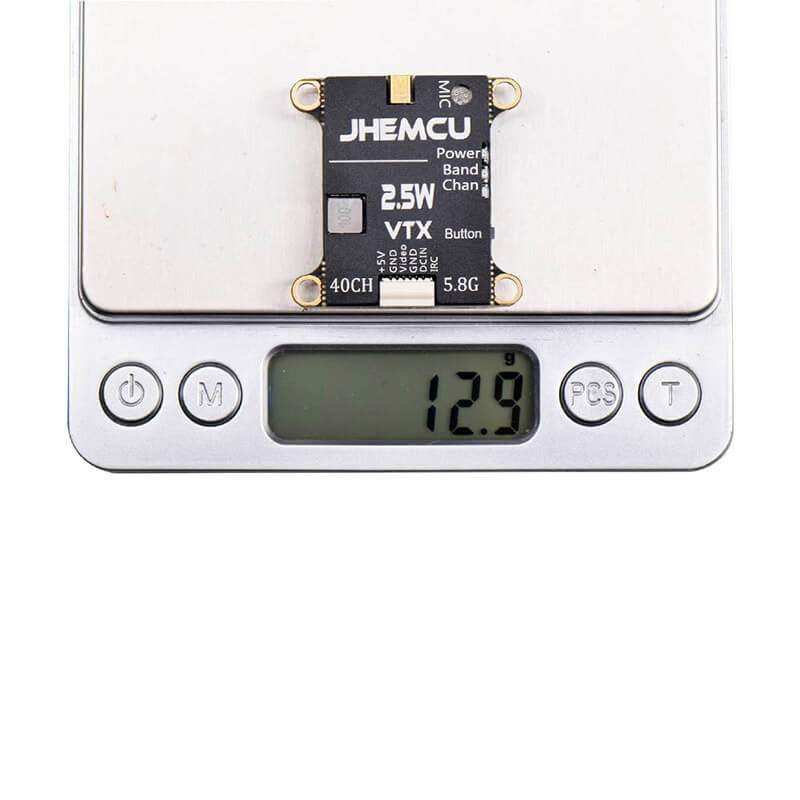

- ✅ Weight: 12.9g

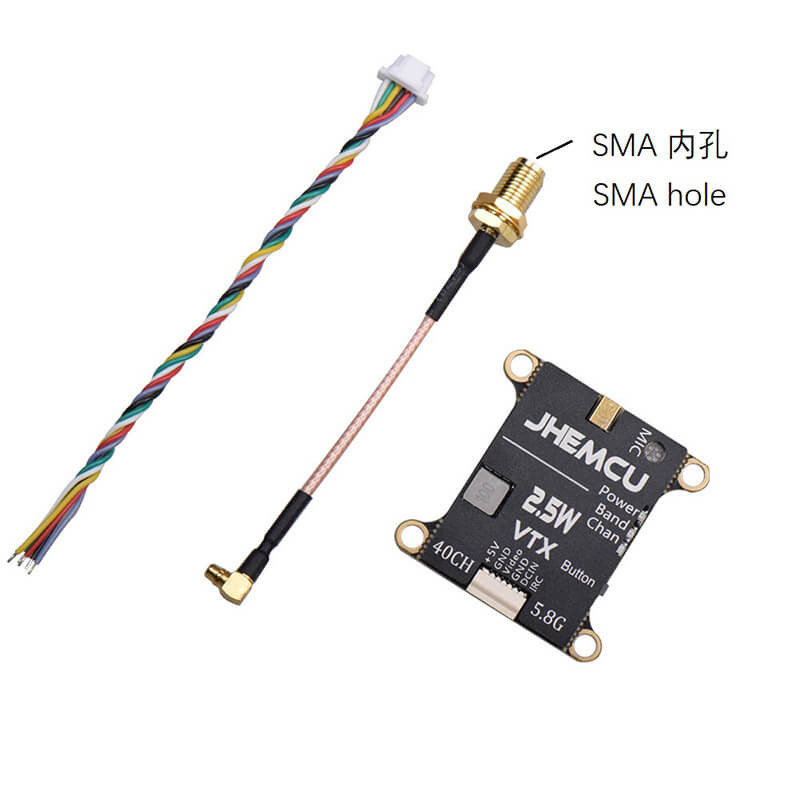

📦 Package Includes:
- 1× JHEMCU VTX2W5 Video Transmitter
- 1× MMCX to SMA cable (inner hole)
- 1× 6P 1.0mm plug cable (buckle)
