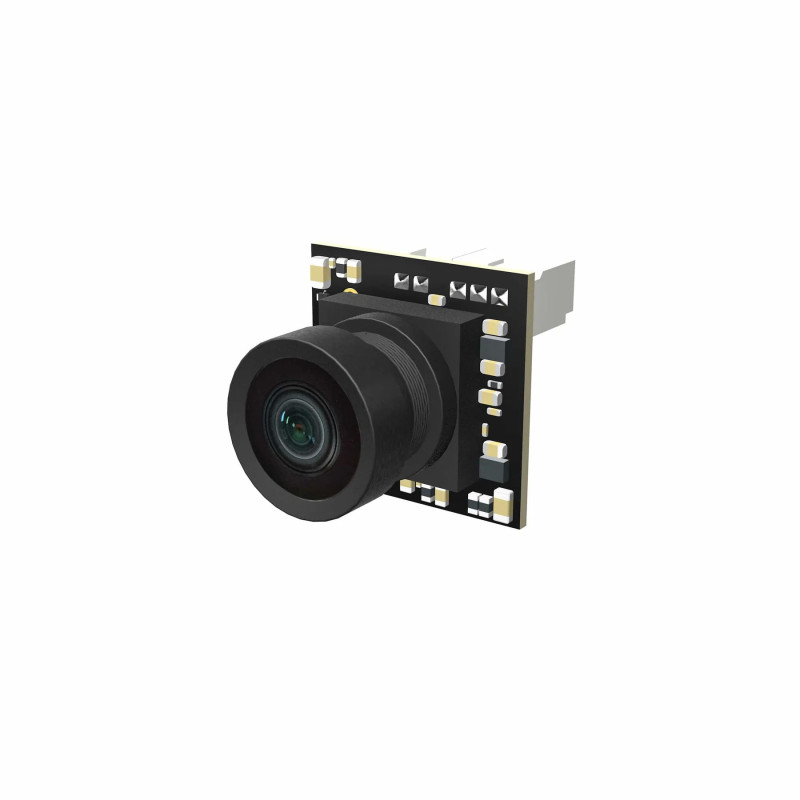

CADDXFPV Ant Lite Analog Camera

Nano-size analog FPV cam – 1200TVL, 165° FOV, only 1.7 g

The CADDXFPV Ant Lite is a next-generation nano analog camera built for micro drones and ultralight builds. Weighing just 1.7 g, it packs serious performance with 1200TVL resolution, 165° field of view, and full Global WDR + 3D DNR for high image quality in any lighting.

It supports switchable 4:3 and 16:9 formats, NTSC/PAL, and has CVBS output. OSD menu is supported with an external menu board (not included in package). Ideal for racers, cinewhoop builds, and any lightweight application.

Key Features:

✅ Featherlight – only 1.7 g
✅ 1200TVL resolution – clear analog video
✅ 165° FOV – wide, immersive image
✅ 1.8 mm / F2.5 lens
✅ Global WDR + 3D DNR
✅ Switchable 4:3 / 16:9 and PAL / NTSC
✅ OSD support (with external board)
✅ Nano size: 14×14×10 mm
✅ Voltage: 5–25V

Technical Specifications:

• Model: Ant Lite
• Image Sensor: 1/3” CMOS
• Resolution: 1200TVL
• TV System: NTSC / PAL (switchable)
• OSD: Yes (requires external menu board)
• Aspect Ratio: 4:3 / 16:9 (switchable)
• Sync: Internal
• Shutter: PAL 1/50–100,000; NTSC 1/60–100,000
• Video Output: CVBS
• Lens: 1.8 mm / F2.5
• Min. Illumination: 0.001 Lux
• AGC / BLC: Yes
• WDR: Global WDR
• DNR: 3D DNR
• Dimensions: 14×14×10 mm
• Power Input: DC 5–25V
• Working Temp: -20°C to +60°C
• Humidity: 20–80%
• Weight: 1.7 g

Package Contents:

• 1× Ant Lite Camera
• 1× 3-Pin Silicone Cable
