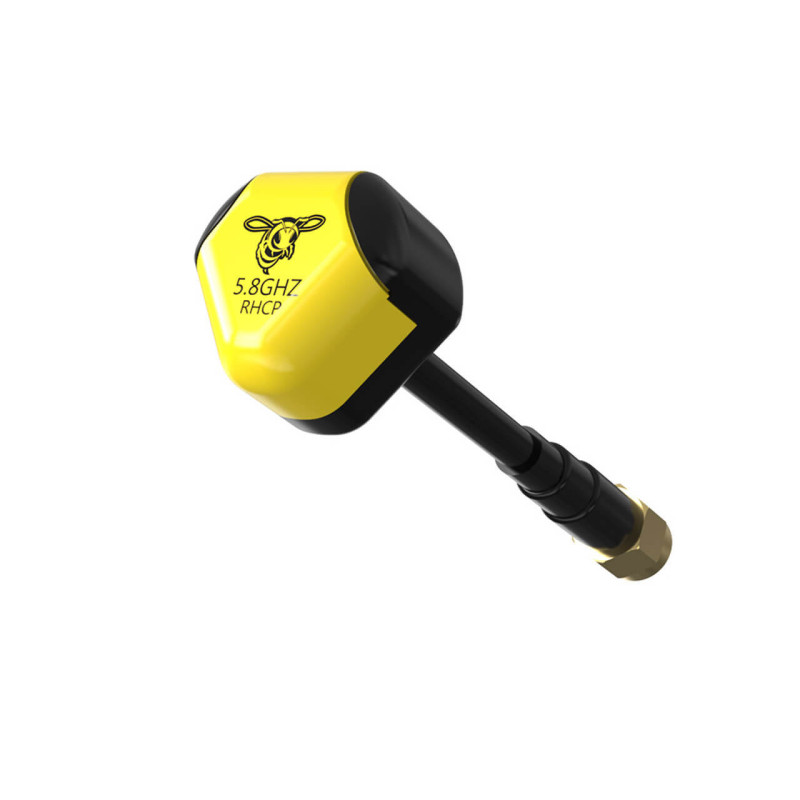

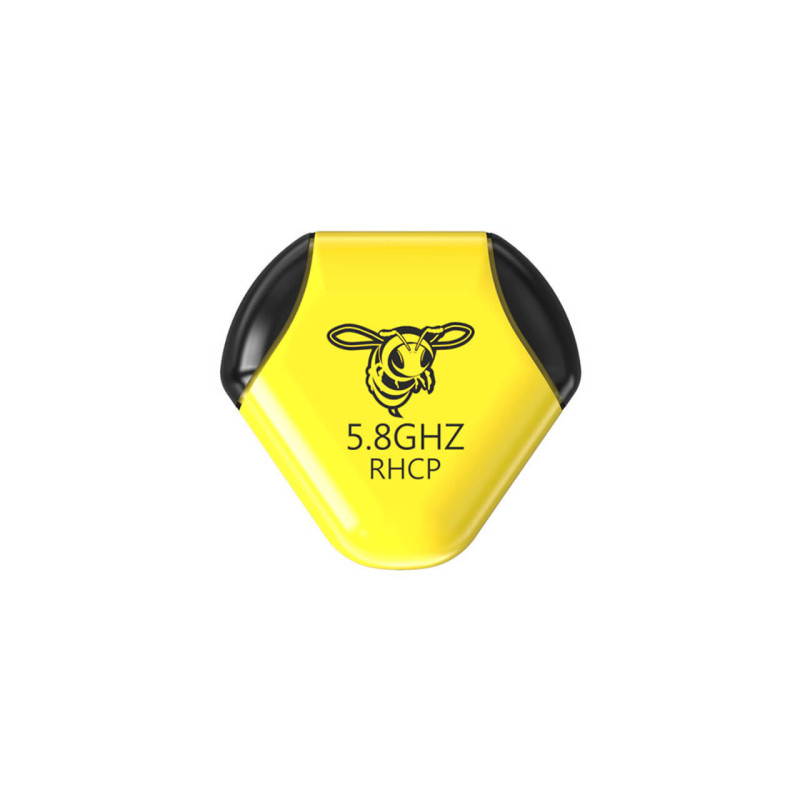

Speedy Bee 5.8 GHz Antenna V2 - RHCP, 2.8dBi

The Speedy Bee 5.8 GHz Antenna V2 is a versatile FPV antenna engineered for excellent transmission in the 5.8 GHz band. It features Right-Hand Circular Polarization (RHCP), which provides exceptional resistance to interference and minimizes signal fading, resulting in a clear and stable video feed. The 2.8dBi gain offers an optimal balance between range and obstacle penetration, making it ideal for both freestyle and racing applications.

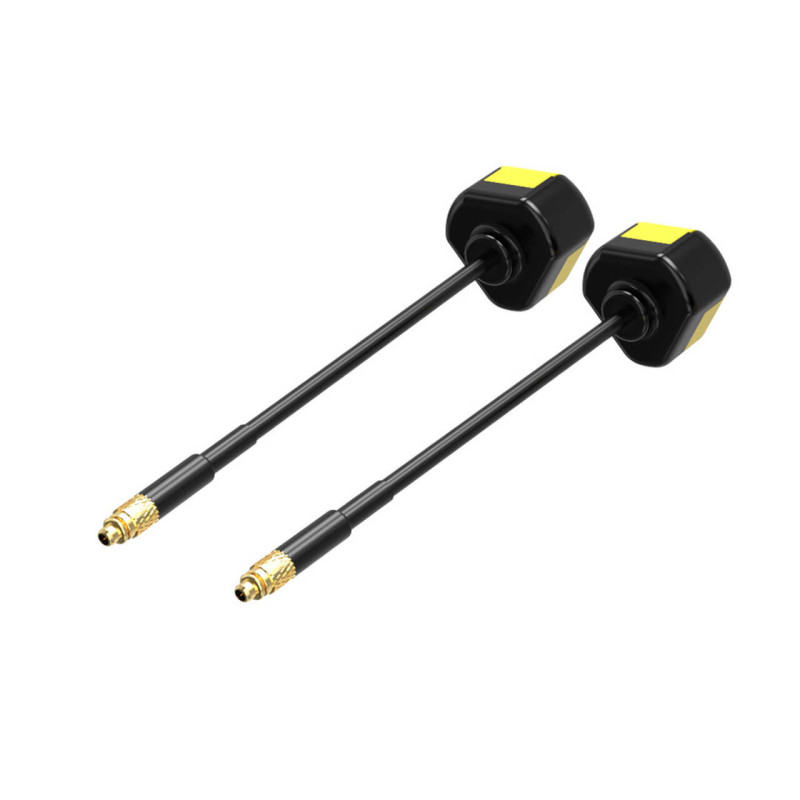

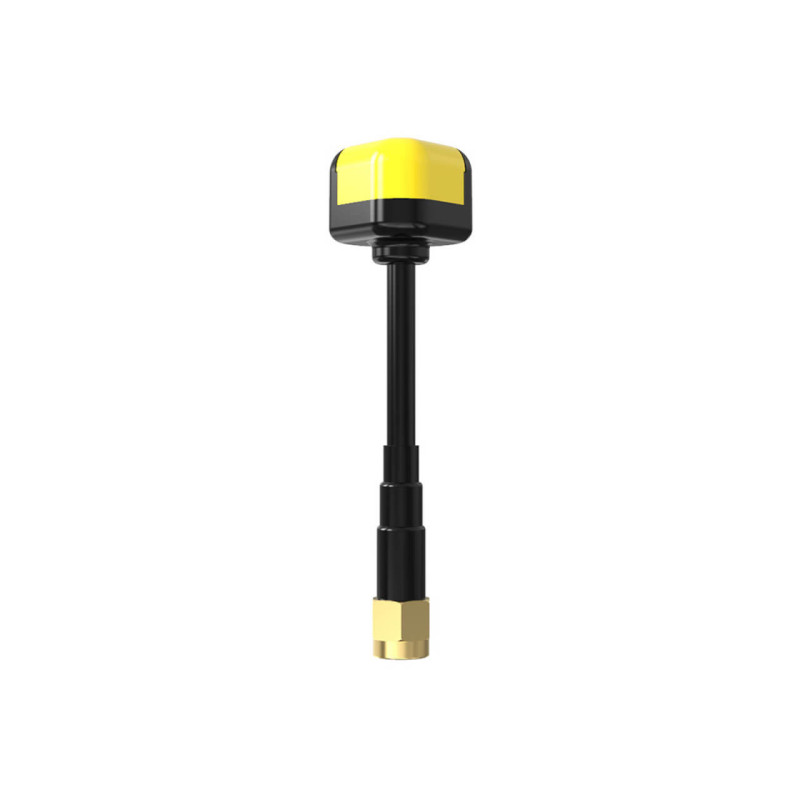

The Speedy Bee V2 antenna is lightweight and compact, making it easy to mount on FPV goggles, receivers, and drone transmitters. It is available in various connector options to ensure compatibility with your equipment. Choose from the robust SMA connector, the ultra-lightweight UFL (IPEX1), the compact MMCX (straight), or the practical MMCX 90 degree for installation in tight spaces.

Key Features:

• RHCP Polarization: Excellent resistance to interference and signal fading.
• 2.8dBi Gain: Optimal range and obstacle penetration.
• Lightweight and Compact Design: Easy mounting on various platforms.
• Available with Different Connectors: Choose the perfect fit for your setup (SMA, UFL, MMCX Straight, MMCX 90°).

Specifications (General):

• Frequency Range: 5.5-6.0 GHz
• Gain: 2.8dBi
• Polarization: RHCP
• VSWR: <1.1 (On 5.8GHz)
• Color: Yellow+Black

Specifications (Connector Variants):

• SMA: Weight 8.2g, Dimensions 20*70mm
• UFL: Weight 3.7g, Dimensions 20*87mm
• MMCX-Straight: Weight 4.27g, Dimensions 20*87mm
• MMCX-90°: Weight 4.3g, Dimensions 20*88mm
