Flywoo GOKU F405 HD 1S 5A ELRS AIO – Flight Controller for DJI O4 / Walksnail / HDZero

Key features

• ● STM32F405BGA MCU – 68% faster than F411
• ● Integrated 2.4 GHz ELRS receiver with TCXO oscillator
• ● ICM-42688P gyro + SPL06 barometer
• ● 8 MB flash memory for Betaflight Blackbox
• ● Built-in 4in1 ESC 5A (8A peak) with Bluejay firmware
• ● Fully compatible with DJI O4 / Walksnail / HDZero
• ● Ultra-lightweight – only 2.6 g (without motor plugs)

Technical specifications

• ● MCU: STM32F405BGA
• ● IMU: ICM-42688P
• ● Barometer: SPL06
• ● Flash: 8 MB (Blackbox)
• ● Firmware: FLYWOOF405S_AIO
• ● UART: 3 (ELRS), 4, 5 (SBUS)
• ● Protocols: CRSF, SBUS, iBus, Spektrum
• ● BEC: 5V / 2A
• ● ESC: 4in1, 5A cont. / 8A peak, Bluejay firmware
• ● Signal protocol: DShot300/600
• ● Motor plug: JST1.25
• ● Battery connector: A30

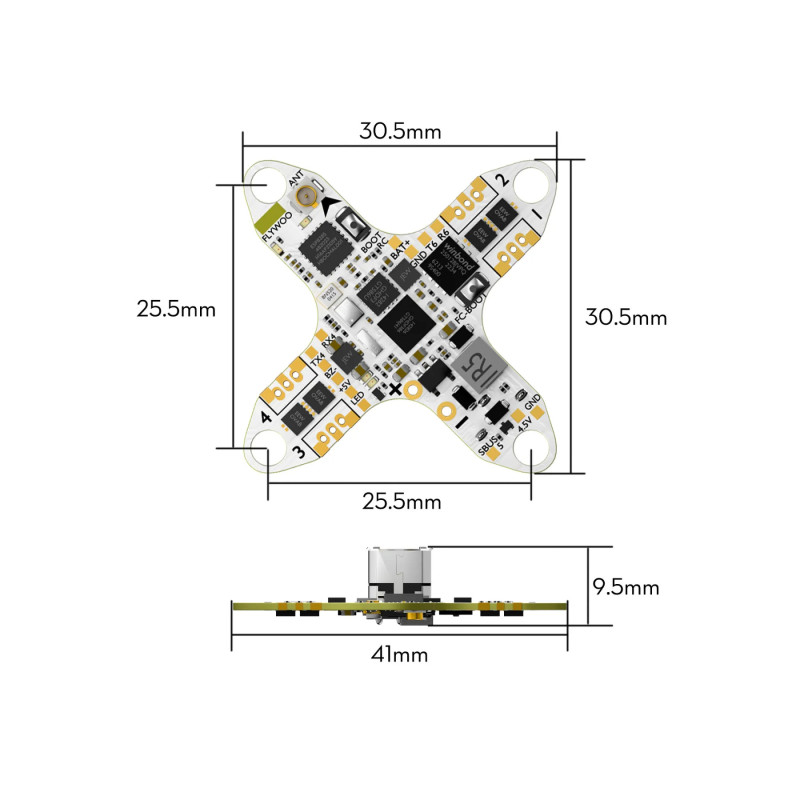

• ● Dimensions: 30.5 × 30.5 mm
• ● Mounting holes: 25.5 × 25.5 mm

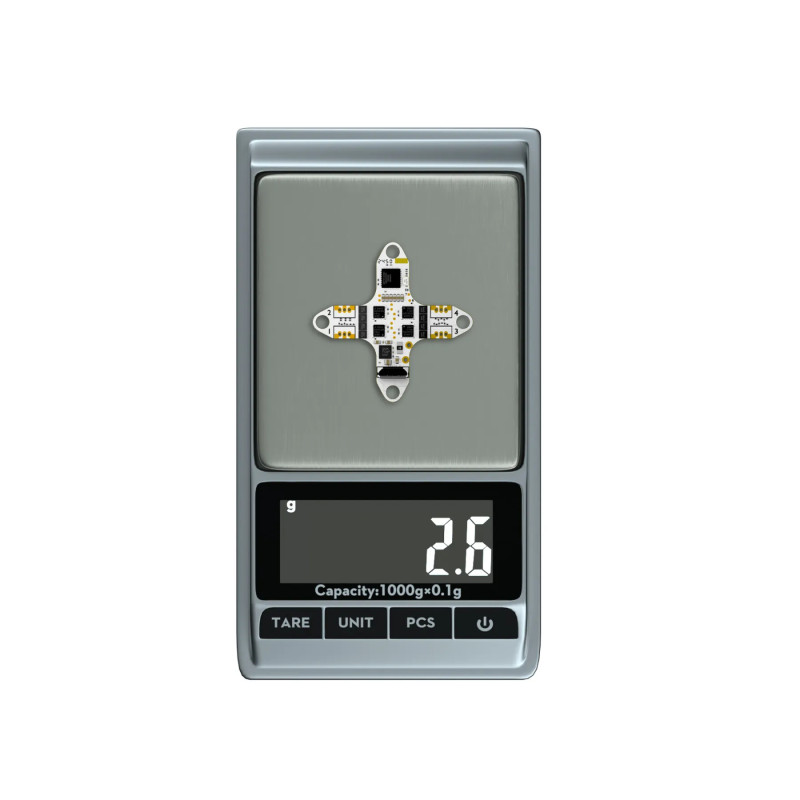

• ● Weight: 2.6 g (without plugs) / 3.28 g (with plugs)

Package contents

• ● 1× GOKU F405 HD 1S 5A ELRS AIO (with motor plugs)
• ● 1× Flywoo O4 1S 5V BEC Module
• ● 1× Flywoo ELRS 2.4g Minimortal PCB T antenna (UFL–40mm)
• ● 5× M2*6.6 damping balls
• ● 1× Heat shrink tube
• ● 4× Silicone wires (red/black)
• ● 1× A30 power cable
