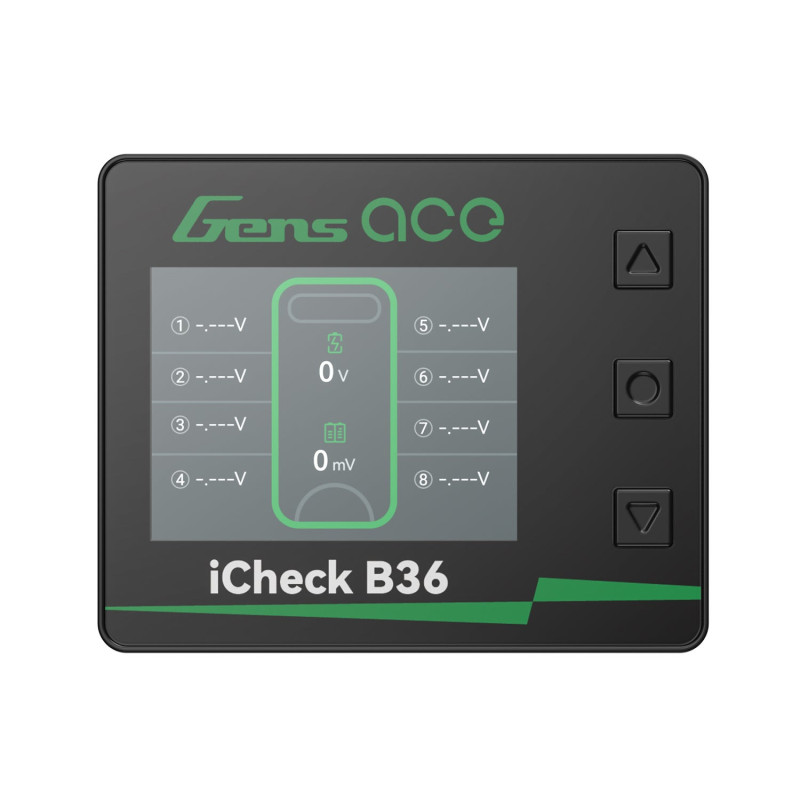

Gens ace iCheck B36 — Smart RC Battery Checker

The Gens ace iCheck B36 is an advanced, multi-functional diagnostic tool that belongs in every RC hobbyist's field bag. This device allows you to instantly monitor voltage, cell balance, and the overall health of LiPo, LiHV, LiFe, and LiIon battery packs ranging from 1 to 8 cells (1-8S).

Featuring a crisp 2.4-inch color IPS screen, the iCheck B36 displays detailed working parameters in real-time. Beyond diagnostics, it offers active cell balancing (with <0.01V accuracy), allowing you to equalize cell voltages without needing a full-sized charger. A standout feature is the Power Bank mode – with USB-A and USB-C (PD 30W) ports, you can use your RC batteries to fast-charge your smartphone or tablet while at the track or field.

Key Features

• Real-time Monitoring: Instant view of total voltage and individual cell health.

• Active Balancing: Balance discharge function (100mA/cell) to keep your packs in top shape.

• USB Fast Charging: High-power Type-C PD (30W max) and USB-A QC (22.5W max) outputs.

• One-Touch Operation: Simple, portable design with an easy-to-use interface.

• G-Tech Ready: Equipped with an XT60 interface and a dedicated G-Tech balance port.

Specifications

Safety:

• Never leave a battery connected to the checker unattended for extended periods (especially in balance mode).

• Do not use the USB charging function if the input RC battery voltage is too low.

• Protect the device from moisture, dust, and extreme temperatures.

• Do not attempt to check batteries with voltage exceeding the supported 8S limit.
